STAND(S)

KL250D14 KLR250 1997 USA CALIFORNIA CANADA

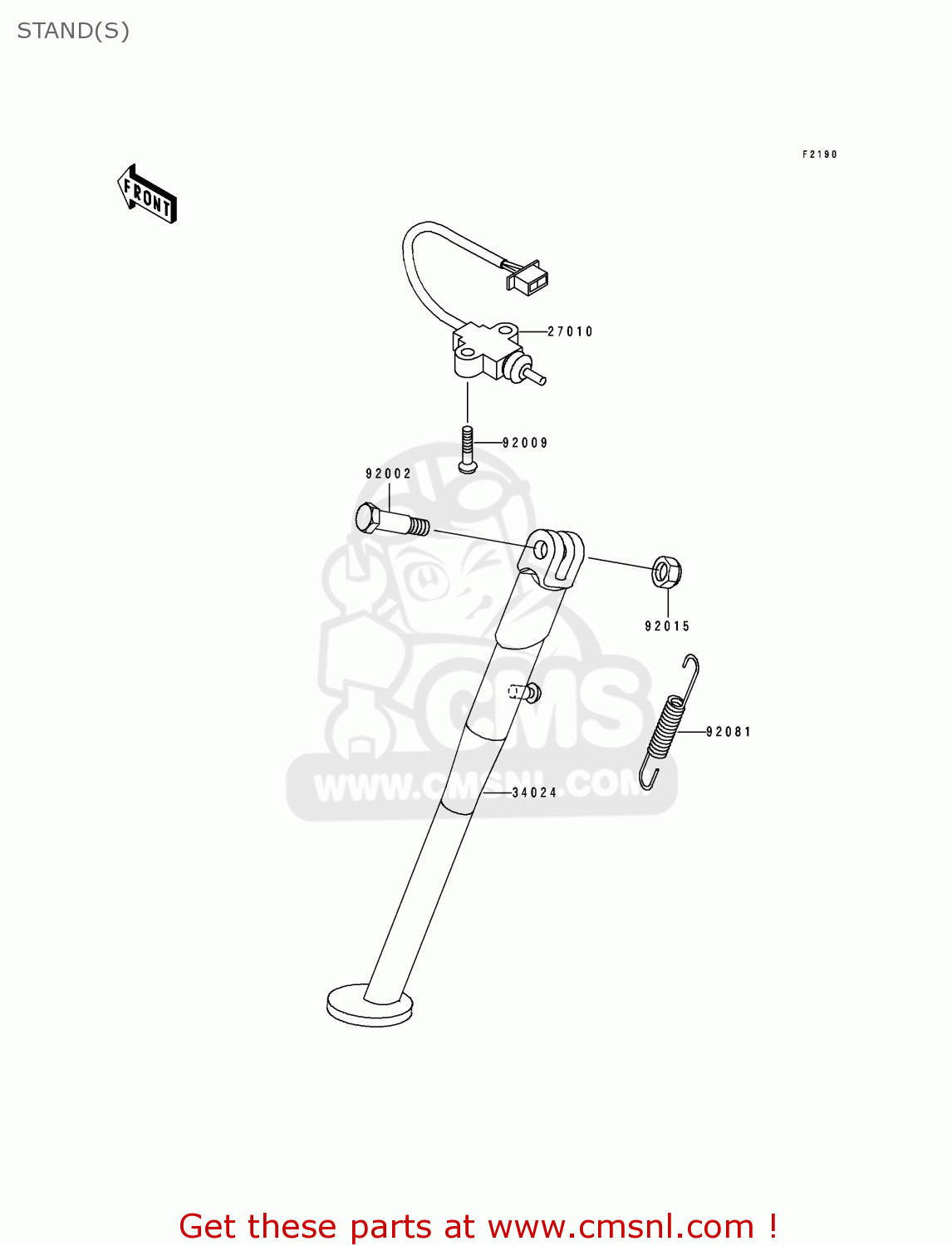

Stand(s) diagram KL250D14 KLR250 1997 USA CALIFORNIA CANADA

STAND(S) KL250D14 KLR250 1997 USA CALIFORNIA CANADA

STAND(S) KL250D14 KLR250 1997 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

27010

270101189
ref: 27010

SWITCH,SIDE STAND

€ 54.50

34024

340241182
ref: 34024

STAND-SIDE

€ 50.00

92002

920021813
ref: 92002

BOLT,SIDE STAND

€ 6.50

92009

920091359
ref: 92009

SCREW

€ 2.50

92015

920151188
ref: 92015

NUT,LOCK,10MM,BLACK

€ 4.00

92081

920811376
ref: 92081

SPRING,SIDE STAND

€ 9.50
