FRAME FITTINGS

KL250D14 KLR250 1997 USA CALIFORNIA CANADA

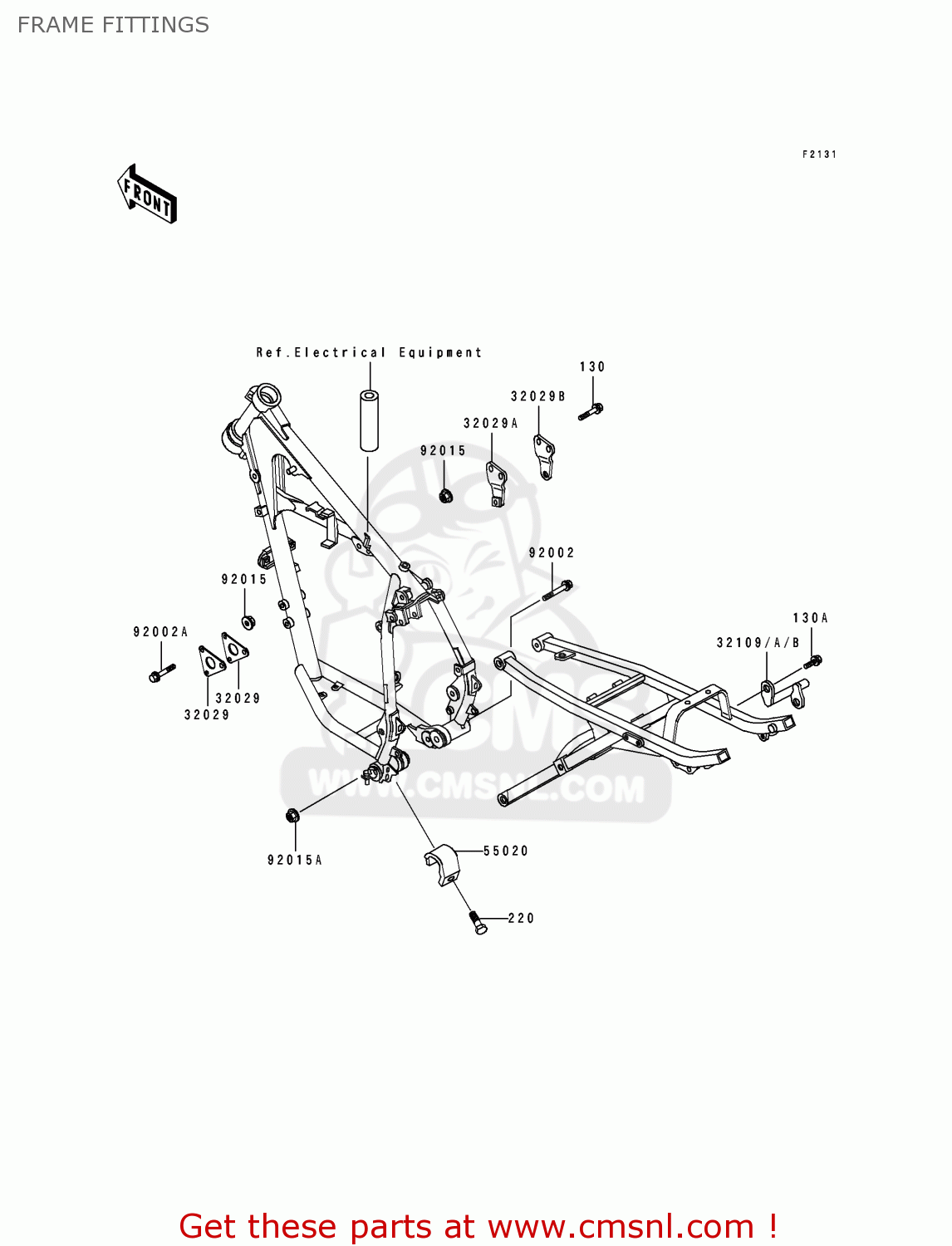

Frame fittings diagram KL250D14 KLR250 1997 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130H0845
ref: 130

BOLT-FLANGED

€ 1.00

130A

130N0812
ref: 130A

BOLT-FLANGED

€ 3.00

220

220B0510
ref: 220

SCREW-PAN-CROS,5X10

€ 0.50

32029

320291352
ref: 32029

BRACKET-ENGINE,FR

€ 13.50

32029A

320291353
ref: 32029A

BRACKET-ENGINE,LH

€ 22.00

32029B

320291354
ref: 32029B

BRACKET-ENGINE,RH

€ 14.50

32109A

321091239CE
ref: 32109A

GRIP-FRAME,RH,SILVER

€ 27.00

55020

550201174
ref: 55020

GUARD,CHAIN

€ 25.00

92002

920021347
ref: 92002

BOLT,FLANGED,12X135

€ 13.50

92002A

920021349
ref: 92002A

BOLT,FLANGED,8X70

€ 3.50

92015

920151406
ref: 92015

NUT,8MM

€ 3.00

92015A

920151426
ref: 92015A

NUT,12MM

€ 4.50
