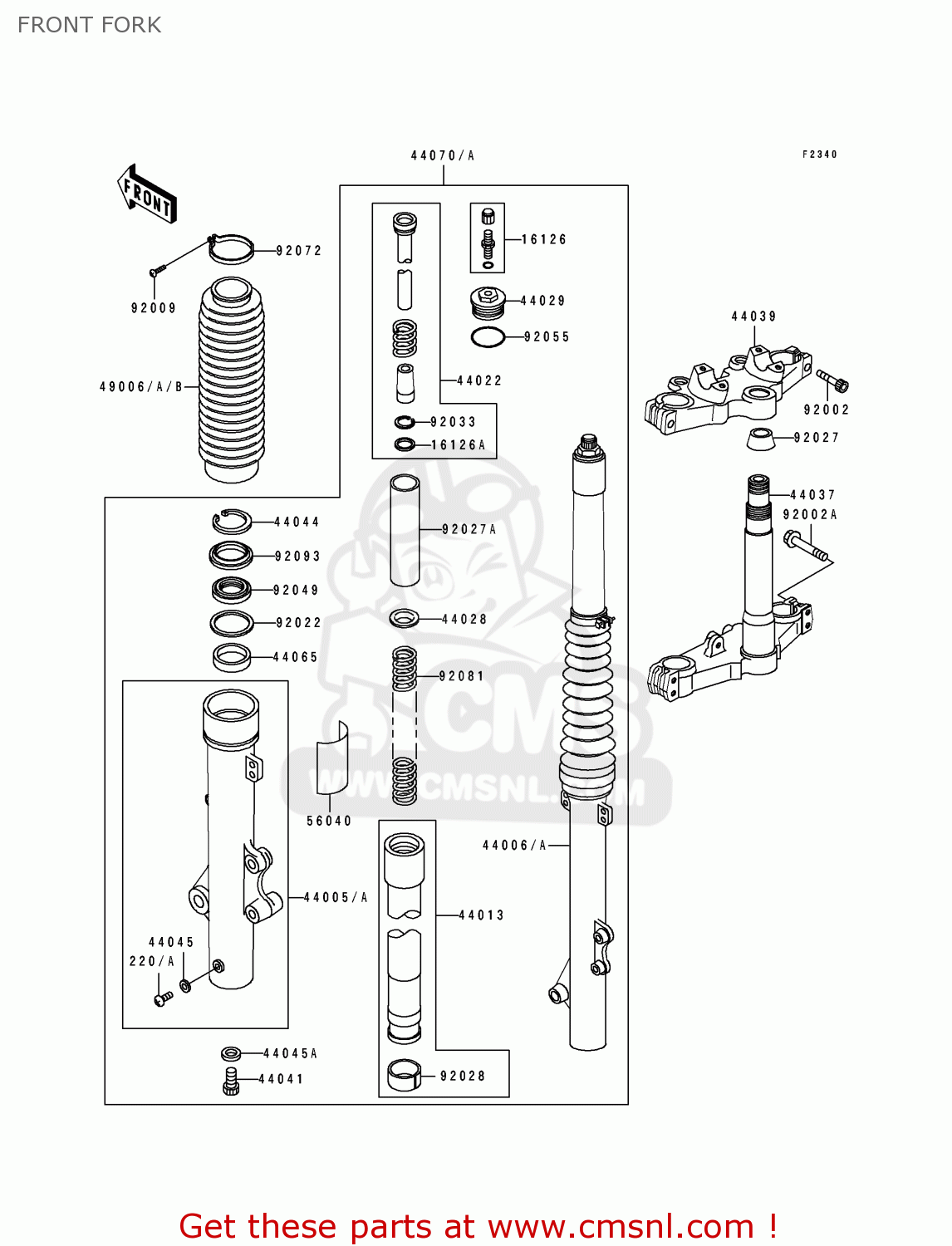

FRONT FORK

ref

part #

description

quantity

220

220B0406
ref: 220

SCREW-PAN-CROS,4X6

€ 2.50

16126

161261052
ref: 16126

VALVE,AIR

€ 22.00

16126A

161261123
ref: 16126A

VALVE,FORK CYLINDER

€ 24.50

44005A

440051334
ref: 44005A

PIPE-LEFT FORK OUTER

€ 423.00

44006A

440061332
ref: 44006A

PIPE-RIGHT FORK OUTER

€ 423.00

44013

440131224
ref: 44013

PIPE-FORK INNER

€ 197.50

44022

440221175
ref: 44022

CYLINDER-FORK

€ 167.00

44028

440281004
ref: 44028

GUIDE-FORK SPRING

€ 7.50

44029

440291119
ref: 44029

SEAT-FORK SPRING

€ 52.50

44037

440371178
ref: 44037

HOLDER-FORK UNDER

€ 267.50

44039

440391121
ref: 44039

HOLDER-FORK UPPER

€ 199.50

44041

44041040
ref: 44041

BOLT-FORK CYLINDER

€ 4.50

44044

44044015
ref: 44044

CIRCLIP

€ 9.50

44045

44045002
ref: 44045

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

44045A

44045057
ref: 44045A

GASKET (NAS)

€ 3.00

44065

440651016
ref: 44065

BUSHING-FRONT FORK

€ 19.00

44070A

440705140
ref: 44070A

DAMPER-ASSY,FORK

€ 1,179.00

49006

490061009SR
ref: 49006

BOOT,FORK,S.GRAY

€ 64.50

56040

560401120
ref: 56040

LABEL,FRONT FORK

€ 3.50

92002

920021277
ref: 92002

BOLT,SOCKET,8X32

€ 7.50

92002A

920021476
ref: 92002A

BOLT,FLANGED,8X40

€ 6.50

92009

920091348
ref: 92009

SCREW

€ 3.50

92022

920221275
ref: 92022

WASHER,FRONT FORK

€ 4.50

92027

920271791
ref: 92027

COLLAR,UPPER BRACKET

€ 46.00

92027A

920271872
ref: 92027A

COLLAR,L=165

€ 32.00

92028

920281354
ref: 92028

BUSHING,INNER PIPE

€ 13.00

92033

920331004
ref: 92033

RING-SNAP,FORK CYLIND

€ 5.50

92049

920491216
ref: 92049

SEAL-OIL,FORK OUTER P

€ 16.00

92055

920551051
ref: 92055

ORING,FORK TOP CAP

€ 3.50

92072

920721008
ref: 92072

BAND,BOOTS

€ 7.50

92081

920811825
ref: 92081

SPRING,FRONT FORK

€ 44.00

92093

920931181
ref: 92093

SEAL,FORK OUTER PIPE

€ 14.00
