FUEL EVAPORATIVE SYSTEM

KL250D14 KLR250 1997 USA CALIFORNIA CANADA

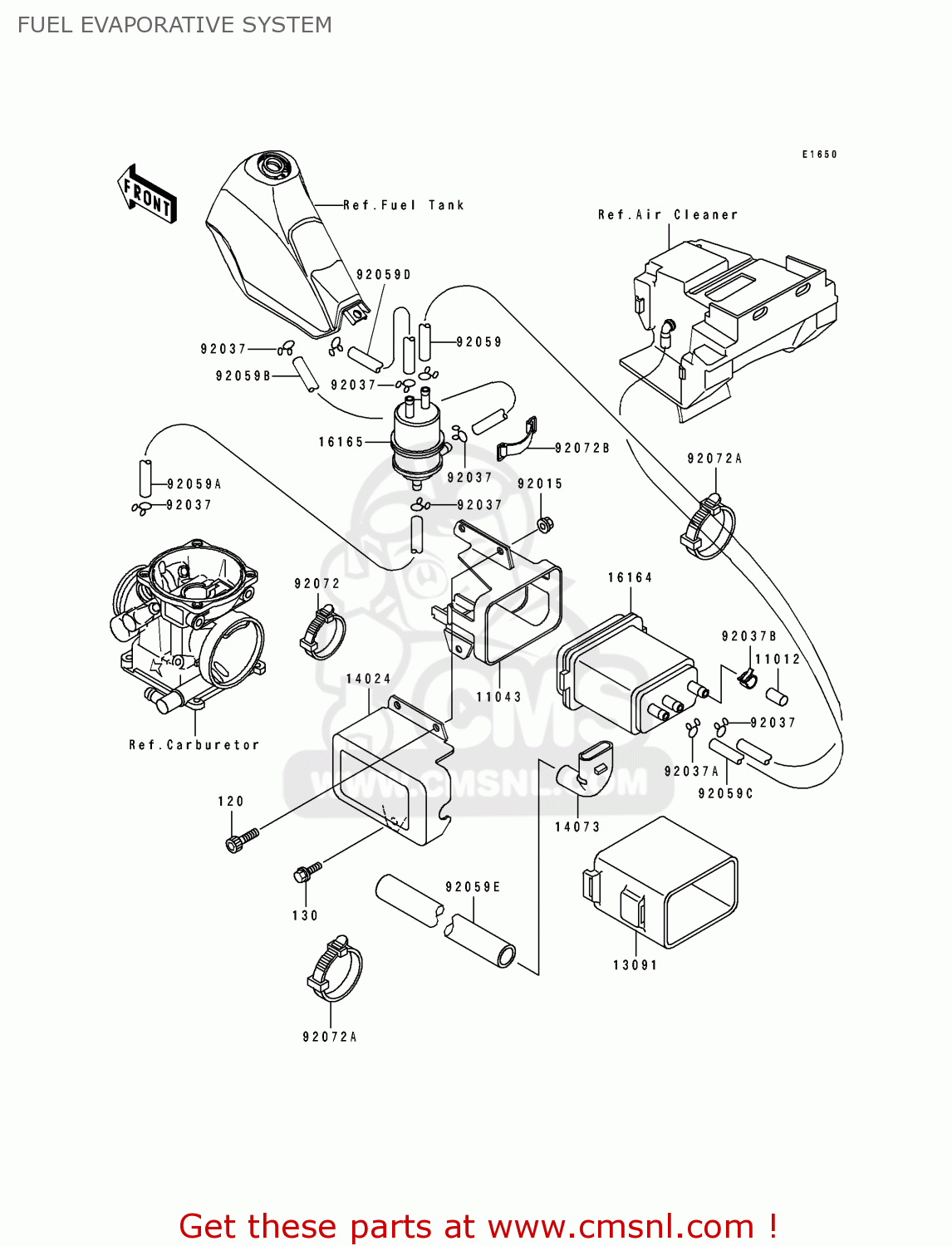

Fuel evaporative system diagram KL250D14 KLR250 1997 USA CALIFORNIA CANADA

FUEL EVAPORATIVE SYSTEM KL250D14 KLR250 1997 USA CALIFORNIA CANADA
FUEL EVAPORATIVE SYSTEM KL250D14 KLR250 1997 USA CALIFORNIA CANADA
FUEL EVAPORATIVE SYSTEM KL250D14 KLR250 1997 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
120
120S0616
ref: 120
CA
BOLT-SOCKET,6X16
120S0616
€ 1.00
130
130C0608
ref: 130
CA
BOLT-FLANGED
€ 2.50
11012
110121388
ref: 11012
CA
CANISTER CAP
€ 5.50
11043
110431180
ref: 11043
CA
CANISTER BRACKET
€ 26.00
13091
130911176
ref: 13091
CA
CANISTER HOLDER
€ 35.50
14024
140241063
ref: 14024
CA
CANISTER COVER
€ 18.00
14073
140731219
ref: 14073
CA
CANISTER DUCT
€ 10.00
16164
161641001
ref: 16164
CA
CANISTER
€ 77.00
16165
161651001
ref: 16165
CA
SEPARATOR
161651001
€ 69.50
92015
920151365
ref: 92015
CA
NUT,6MM
920151365
€ 3.00
92037
92037072
ref: 92037
CA
CLAMP,TUBE
92037072
€ 4.00
92037A
920371104
ref: 92037A
CA
CLAMP,HOSE
920371104
€ 1.00
92037B
920371512
ref: 92037B
CA
CANISTER CLAMP
€ 3.50
92059
920591531
ref: 92059
CA
TUBE,5X8X660,BLUE
€ 12.00
92059A
920591533
ref: 92059A
CA
TUBE,4X9X500,WHITE
920591533
€ 12.50
92059B
920591534
ref: 92059B
CA
TUBE,5X8X430,RED
€ 22.50
92059C
920591535
ref: 92059C
CA
TUBE,7X12X400,GREEN
€ 13.00
92059D
920591536
ref: 92059D
CA
TUBE,5X8X320,BLUE
€ 12.00
92059E
920591571
ref: 92059E
CA
TUBE
€ 20.00
92072
92072031
ref: 92072
CA
BAND,MIDDLE
92072031
€ 3.00
92072A
92072056
ref: 92072A
CA
BAND,RUBBER
92072056
€ 3.00
92072B
92072066
ref: 92072B
CA
BAND,L=50
92072066
€ 11.00
