CARBURETOR

KL250D14 KLR250 1997 USA CALIFORNIA CANADA

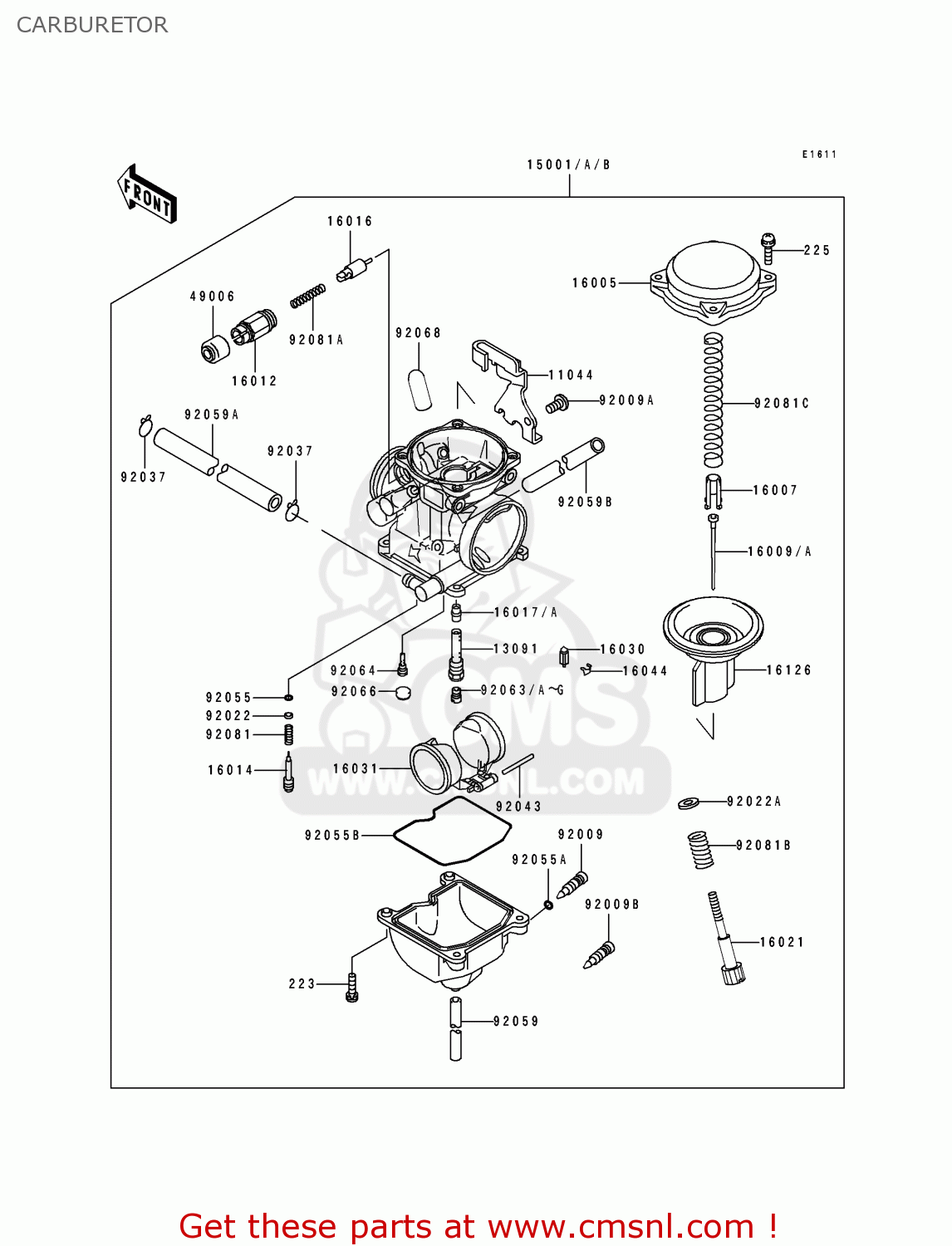

Carburetor diagram KL250D14 KLR250 1997 USA CALIFORNIA CANADA

CARBURETOR KL250D14 KLR250 1997 USA CALIFORNIA CANADA
CARBURETOR KL250D14 KLR250 1997 USA CALIFORNIA CANADA
CARBURETOR KL250D14 KLR250 1997 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11044
110441061
ref: 11044
BRACKET,THROTTLE CABL
€ 44.00
13091
130911259
ref: 13091
HOLDER,NEEDLE JET
130911259
€ 19.00
15001A
150011121
ref: 15001A
CNUS
CARBURETOR-ASSY
150011121
€ 527.00
15001B
150011122
ref: 15001B
CA
CARBURETOR ASSEMBLY
€ 296.00
16005
160051057
ref: 16005
TOP-CHAMBER,MIXING,27
160051057
€ 30.50
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
160071117
€ 16.50
16009A
160091255
ref: 16009A
JET,NEEDLE,#N31C
€ 20.50
16012
160121055
ref: 16012
CAP-STARTER PLUNGER
160121055
€ 17.50
16014
160141029
ref: 16014
SCREW-PILOT AIR
160141029
€ 13.50
16016
160161065
ref: 16016
PLUNGER,STARTER
160161065
€ 40.50
16017
160171265
ref: 16017
JET,NEEDLE
€ 37.00
16021
160211109
ref: 16021
SCREW-THROTTLE STOP
160211109
€ 31.50
16030
160301007
ref: 16030
FLOAT VALVE ASSY
160301007
€ 37.00
16031
160311056
ref: 16031
FLOAT
160311056
€ 39.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
16044007
€ 4.00
16126
161261163
ref: 16126
VALVE,VACUUM
161261163
€ 157.50
49006
490061165
ref: 49006
BOOT,STARTER PLUNGER
490061165
€ 6.50
92009
920091095
ref: 92009
SCREW,DRAIN
920091095
€ 10.00
92009A
920091365
ref: 92009A
SCREW
920091365
€ 4.50
92009B
920091551
ref: 92009B
CA
SCREW,DRAIN
920091551
€ 6.50
92022
920221003
ref: 92022
WASHER,PLAIN
920221003
€ 2.50
92022A
920221587
ref: 92022A
WASHER,THROTTLE STOP
920221587
€ 3.00
92037
920371531
ref: 92037
CLAMP,TUBE
920371531
€ 3.50
92043
920431207
ref: 92043
PIN,FLOAT
920431207
€ 6.00
92055
920551002
ref: 92055
O RING,PILOT ADJUST
920551002
€ 2.50
92055A
920551053
ref: 92055A
O RING,DRAIN SCREW
920551053
€ 3.00
92055B
920551222
ref: 92055B
RING-O,FLOAT CHAMBER
920551222
€ 12.50
92059
92059111
ref: 92059
HOSE,FUEL OVERFLOW
€ 17.50
92059A
920591538
ref: 92059A
TUBE,6.5X11.5X200
920591538
€ 22.50
223
223C0416
ref: 223
SCREW-PAN-WS-CROS
223C0416
€ 2.50
225
225C0418
ref: 225
SCREW-PAN-WSP-CROS
225C0418
€ 2.50
92059B
920591539
ref: 92059B
TUBE,6.5X9.5X410
920591539
€ 23.00
92063A
920631071
ref: 92063A
JET-MAIN,#118
920631071
€ 9.50
92063D
920631072
ref: 92063D
MAIN JET 2ND #120
920631072
€ 9.50
92063E
920631073
ref: 92063E
MAIN JET,2ND #122
920631073
€ 9.50
92063F
920631117
ref: 92063F
JET-MAIN,#112
920631117
€ 9.50
92063G
920631118
ref: 92063G
JET-MAIN,#115
920631118
€ 9.50
92064
920641101
ref: 92064
JET-PILOT,#35
920641101
€ 11.50
92066
920661051
ref: 92066
PLUG,PILOT AIR SCREW,
920661051
€ 3.00
92068
92068006
ref: 92068
CNUS
RUBBER PLUG
92068006
€ 2.50
92081
920811002
ref: 92081
SPRING,PIROT ADJ SCRW
920811002
€ 3.50
92081A
920811720
ref: 92081A
SPRING,PLUNGER
920811720
€ 7.00
92081B
920811721
ref: 92081B
SPRING,THROTTLE STOP
920811721
€ 9.00
92081C
920811826
ref: 92081C
SPRING,VACUUM VALVE
920811826
€ 16.50
