FUEL TANK/SIDE COVERS

KL250A1A KLR250 1978 CANADA

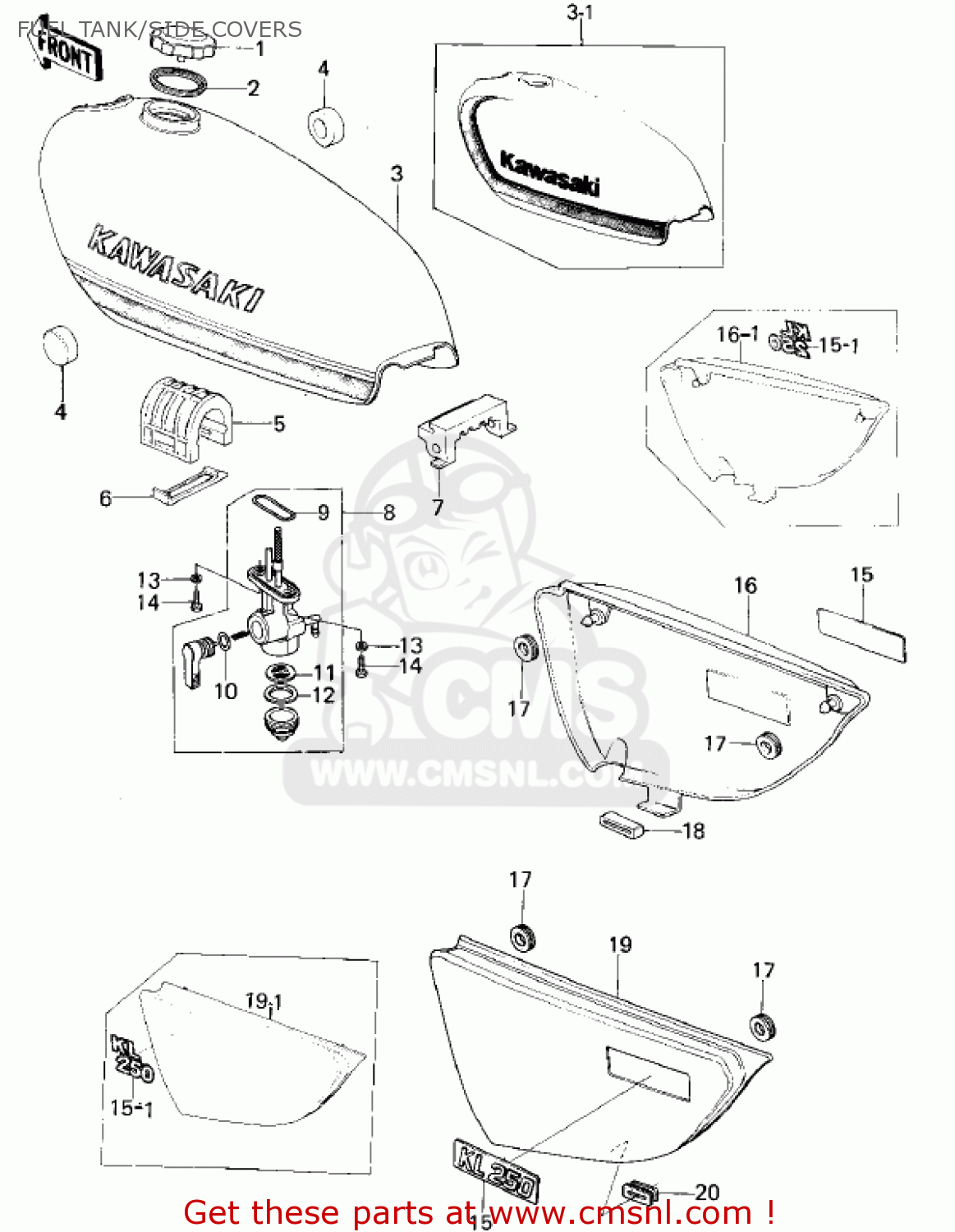

Fuel tank/side covers diagram KL250A1A KLR250 1978 CANADA

FUEL TANK/SIDE COVERS KL250A1A KLR250 1978 CANADA

FUEL TANK/SIDE COVERS KL250A1A KLR250 1978 CANADA

prices are in EUR

ref

part #

description

quantity

1

510481013
ref: 1

CAP-ASSY-TANK,FUEL

€ 37.50

2

51059011
ref: 2

GASKET,FUEL TANK CAP (NAS)

€ 5.50

3

5100110027P
ref: 3
KL250-A1/A1A

TANK,FUEL,FLAME RED

€ 333.50

3-1

510015015B4
ref: 3-1
KL250-A2

FUEL TANK,MARINE BLUE

€ 270.50

4

92075101
ref: 4

DAMPER RUBBER-FL TANK

€ 4.00

5

92075215
ref: 5

DAMPER,FUEL TANK

€ 9.50

6

920721013
ref: 6

BAND,FUEL TANK

€ 2.50

7

920751001
ref: 7

DAMPER,FUEL TANK,REAR

€ 5.50

8

510231001
ref: 8

TAP-ASSY,FUEL

€ 43.50

9

51039003
ref: 9

'O' RING

€ 4.00

10

670B2010
ref: 10

O RING,10MM

€ 1.00

11

140431002
ref: 11

FILTER,FUEL TAP

€ 3.00

12

110091013
ref: 12

GASKET,FUEL TAP CUP (NAS)

€ 3.50

13

92022183
ref: 13

WASHER,6.2X11X1.5

€ 2.50

14

92001114
ref: 14

BOLT-HEX HEAD,6X16

€ 2.50

15

560181013
ref: 15
KL250-A1/A1A

MARK,SIDE COVER

€ 22.50

15-1

560181033
ref: 15-1
KL250-A2

MARK,SIDE COVER

€ 13.50

16

3600110447P
ref: 16
KL250-A1/A1A

COVER,SIDE,R.H.F.RED

€ 85.00

16-1

3600110446N
ref: 16-1
KL250-A2

SIDE COVER,RH,MARINE BLUE

€ 55.00

17

92071056
ref: 17

GROMMET

€ 2.50

18

920751034
ref: 18

DAMPER,SIDE COVER

€ 2.00

19

3600110437P
ref: 19
KL250-A1/A1A

COVER,SIDE,L.H,F.RED

€ 41.50

19-1

3600110436N
ref: 19-1
KL250-A2

SIDE COVER,LH,MARINE BLUE

€ 46.00

20

920711004
ref: 20

GROMMET,SIDE COVER

€ 2.50
