BATTERY CASE/TOOL CASE

KL250A1A KLR250 1978 CANADA

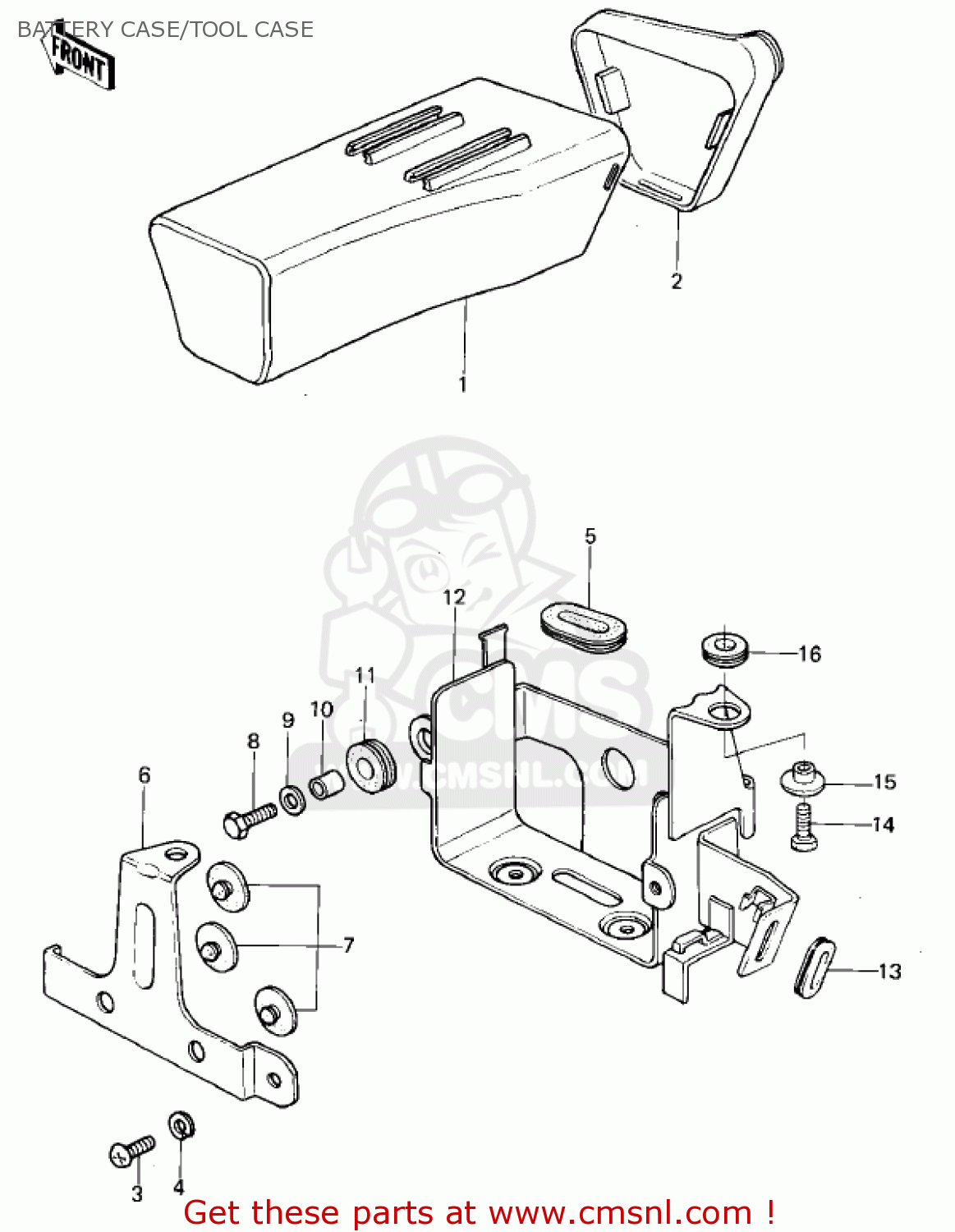

Battery case/tool case diagram KL250A1A KLR250 1978 CANADA

BATTERY CASE/TOOL CASE KL250A1A KLR250 1978 CANADA
BATTERY CASE/TOOL CASE KL250A1A KLR250 1978 CANADA
BATTERY CASE/TOOL CASE KL250A1A KLR250 1978 CANADA
prices are in EUR
ref
part #
description
quantity
1
320981006
ref: 1
CASE,TOOL
€ 16.00
2
110121050
ref: 2
CAP,TOOL CASE
€ 9.50
3
220B0612
ref: 3
SCREW-PAN HEAD,6X12
220B0612
€ 1.00
4
461F0600
ref: 4
WASHER-SPRING,6MM
461F0600
€ 0.50
5
92075166
ref: 5
DAMPER RUBBER
€ 2.00
6
920721003
ref: 6
BAND,BATTERY CASE
€ 10.50
7
92075078
ref: 7
DAMPER,RUBBER
92075078
€ 2.50
8
112B0622
ref: 8
BOLT, 6X22
€ 2.50
9
92022125
ref: 9
WASHER,6.5X20X1.6
92022125
€ 1.00
10
92027120
ref: 10
COLLAR
92027120
€ 3.00
11
92075222
ref: 11
DAMPER RUBBER,CASE
92075222
€ 4.50
12
320971002
ref: 12
CASE,BATTERY
€ 37.00
13
920711187
ref: 13
GROMMET
920711187
€ 3.00
14
112G0618
ref: 14
BOLT-UPSET
112G0618
€ 0.50
15
92027153
ref: 15
COLLAR
92027153
€ 4.00
16
92075051
ref: 16
DAMPER RUBBER
92075051
€ 2.50
