CRANKCASE ('78-'79 KL250-A1/A1A/
KL250A1A KLR250 1978 CANADA

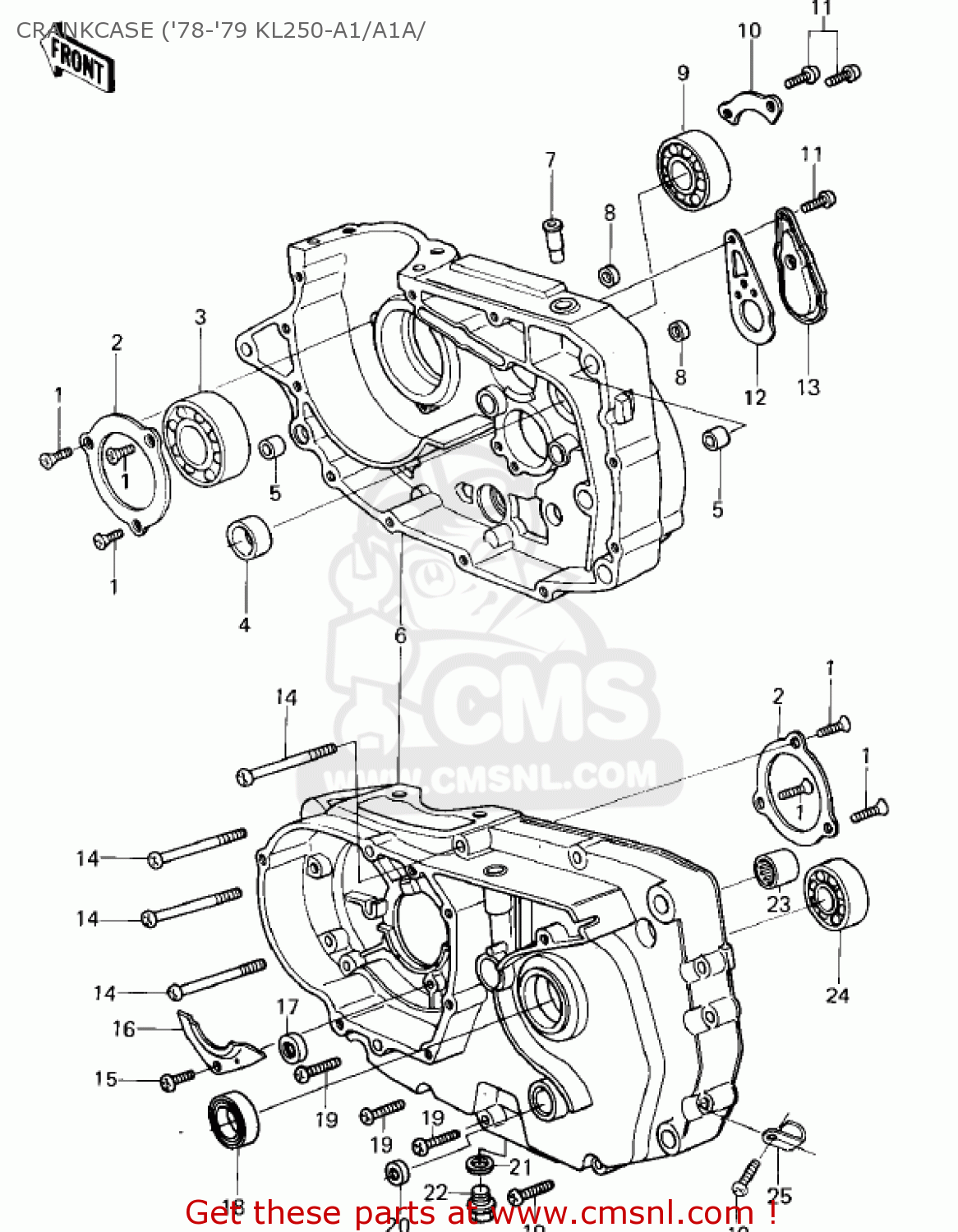

Crankcase ('78-'79 kl250-a1/a1a/ diagram KL250A1A KLR250 1978 CANADA
CRANKCASE ('78-'79 KL250-A1/A1A/ KL250A1A KLR250 1978 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
221B0616
ref: 1
SCREW-CNTSNK HD,6X16
€ 0.50
2
140141004
ref: 2
PLATE,POSITIONING
€ 8.00
3
92045037
ref: 3
BEARING-BALL,#6306
€ 40.00
4
92028132
ref: 4
BUSHING
€ 28.00
5
92042032
ref: 5
PIN,DOWEL,14MM
€ 3.00
6
140015034
ref: 6
CRANKCASE SET,F.BLACK
€ 580.00
7
14067006
ref: 7
BREATHER JOINT
€ 14.00
8
920661282
ref: 8
PLUG
€ 4.00
9
92045038
ref: 9
BEARING-BALL,#6006
€ 23.50
10
14014037
ref: 10
PLATE-POSITION
€ 2.50
11
220B0614
ref: 11
SCREW-PAN HEAD,6X14
€ 2.00
12
16079002
ref: 12
GASKET (MCA)
€ 2.50
13
16078002
ref: 13
CAP
€ 6.00
14
220B0675
ref: 14
SCREW,PAN HEAD,6X75
€ 3.00
15
220B0614
ref: 15
SCREW-PAN HEAD,6X14
€ 2.00
16
14014035
ref: 16
PLATE-POSITION,CAM CH
€ 3.00
17
92050077
ref: 17
OIL SEAL, PUSH ROD
€ 7.50
18
920491159
ref: 18
SEAL-OIL,TC32457
€ 8.00
19
220B0630
ref: 19
SCREW-PAN HEAD,6X30
€ 2.50
20
92050082
ref: 20
OIL SEAL,CHANGE SHAFT
€ 5.50
21
92065097
ref: 21
GASKET,DRAIN PLUG BOL (NAS)
€ 1.00
22
920661174
ref: 22
PLUG,OIL DRAIN,12X15
€ 4.00
23
92046060
ref: 23
BEARING-NEEDLE,HMK151
€ 17.50
24
601B6205
ref: 24
BEARING-BALL,#6205C3
€ 14.00
25
21126008
ref: 25
CLAMP,WIRING HARNESS
€ 3.00
