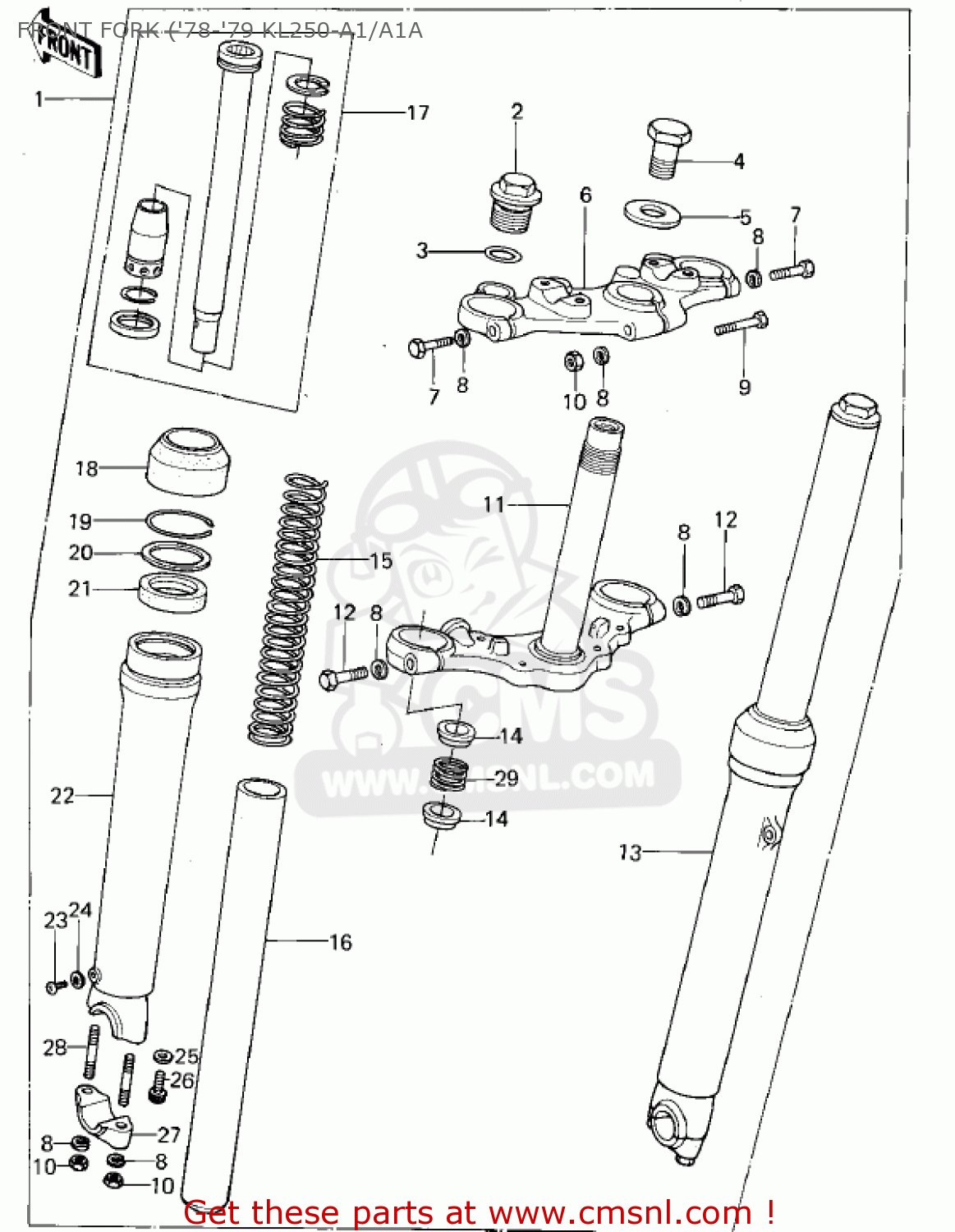

FRONT FORK ('78-'79 KL250-A1/A1A
KL250A1A KLR250 1978 CANADA
Front fork ('78-'79 kl250-a1/a1a diagram KL250A1A KLR250 1978 CANADA
FRONT FORK ('78-'79 KL250-A1/A1A KL250A1A KLR250 1978 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
440011697
ref: 1
F/NO. 000101~006345
FORK-FRONT
€ 1,778.50
1
440011697
ref: 1
F/NO. 006346~
FORK-FRONT
€ 1,778.50
2
44062010
ref: 2
BOLT, FORK TOP
€ 31.00
3
920551012
ref: 3
RING-O,FORK TOP
€ 5.00
4
44041007
ref: 4
BOLT-STRNG STEM HEAD
€ 11.50
5
44043016
ref: 5
WASHER,FORK UPPER HOL
€ 7.00
6
44039080
ref: 6
HEAD,STEERING STEM
€ 140.50
7
44041044
ref: 7
BOLT-STEERING STEM HD
€ 6.50
8
461F0800
ref: 8
WASHER-SPRING,8MM
€ 0.50
9
44041042
ref: 9
BOLT-STEERING STEM HD
€ 3.00
10
92017013
ref: 10
NUT,LOCK,8MM
€ 5.50
11
440371006
ref: 11
STEM,STEERING
€ 177.50
12
920011076
ref: 12
BOLT,8X35
€ 6.00
13
440061007
ref: 13
TUBE,R.H,FORK OUTER
€ 144.50
14
44028033
ref: 14
GUIDE-FORK SPRING
€ 6.00
15
440261015
ref: 15
SPRING,FORK INNER,LOW
€ 23.00
16
440131006
ref: 16
USE FOR 44001-1038/1
TUBE,FORK INNER
€ 101.50
16
440131013
ref: 16
USE FOR 44001-1060
TUBE,FORK,INNER
€ 101.50
17
440221010
ref: 17
USE FOR 44001-1038/1
CYLINDER,FORK
€ 51.50
17
440221014
ref: 17
USE FOR 44001-1060
CYLINDER,FORK,ID=12.5
€ 45.50
16
440131006
ref: 16
TUBE,FORK INNER
€ 101.50
17
440221010
ref: 17
CYLINDER,FORK
€ 51.50
18
44010036
ref: 18
DUST SHIELED,FORK
€ 17.50
19
44044012
ref: 19
RING-SNAP
€ 17.50
20
44043044
ref: 20
WASHER,OIL SEAL FIT
€ 8.00
21
44009016
ref: 21
OIL SEAL,FORK
€ 16.50
22
440051007
ref: 22
TUBE,L.H,FORK OUTER
€ 102.00
23
220B0408
ref: 23
SCREW-PAN-CROS
€ 0.50
24
44045002
ref: 24
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
25
44045057
ref: 25
GASKET (NAS)
€ 3.00
26
44041040
ref: 26
BOLT-FORK CYLINDER
€ 4.50
27
44063011
ref: 27
HOLDER-FRONT AXLE
€ 27.00
28
172G0830
ref: 28
STUD,8X30
€ 1.50
29
440261014
ref: 29
SPRING,FORK,INNER,UPP
€ 6.00
