ENGINE COVERS ('78-'79 KL250-A1/

KL250A1A KLR250 1978 CANADA

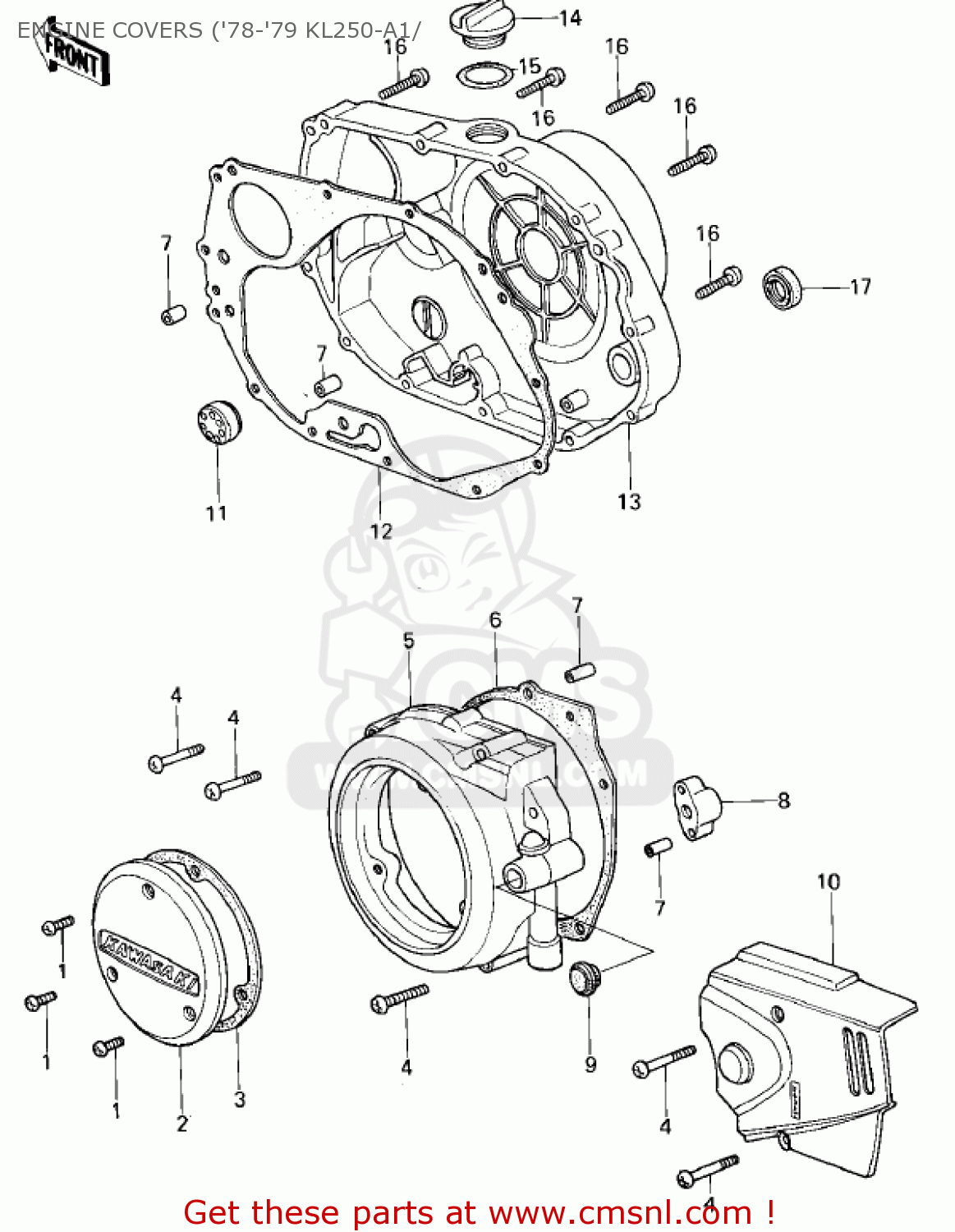

Engine covers ('78-'79 kl250-a1/ diagram KL250A1A KLR250 1978 CANADA

ENGINE COVERS ('78-'79 KL250-A1/ KL250A1A KLR250 1978 CANADA

ENGINE COVERS ('78-'79 KL250-A1/ KL250A1A KLR250 1978 CANADA

prices are in EUR

ref

part #

description

quantity

1

220B0614
ref: 1

SCREW-PAN HEAD,6X14

€ 2.00

2

140251108
ref: 2
BARREL

COVER,GENERATOR

€ 29.50

3

110091010
ref: 3

GASKET,DYNAMO COVER (MCA)

€ 4.00

4

220B0640
ref: 4

SCREW-PAN HEAD,6X40

€ 2.00

5

1403110032H
ref: 5
BARREL

COVER,L.H ENGINE

€ 120.00

6

110091009
ref: 6

GASKET,L.H,ENGINE COV (MCA)

€ 16.00

7

92042007
ref: 7

PIN-DOWEL

€ 4.00

8

920271467
ref: 8

COLLAR,PUSH ROD

€ 2.50

9

92066065
ref: 9

PLUG,CLUTCH PUSH ROD,

€ 2.50

10

1402610032H
ref: 10
BARREL

COVER,CHAIN

€ 70.50

11

52015004
ref: 11

GAUGE,OIL LEVEL

€ 27.00

12

110091235
ref: 12

GASKET,ENGINE COV,RH (MCA)

€ 20.50

13

140325003
ref: 13
BARREL

COVER,R.H ENGINE

€ 86.00

14

16115013
ref: 14

PLUG-OIL FILLER

€ 13.50

15

92055049
ref: 15

'0'RING,31MM

€ 2.50

16

220B0630
ref: 16

SCREW-PAN HEAD,6X30

€ 2.50

17

92050078
ref: 17

OIL SEAL

€ 5.50
