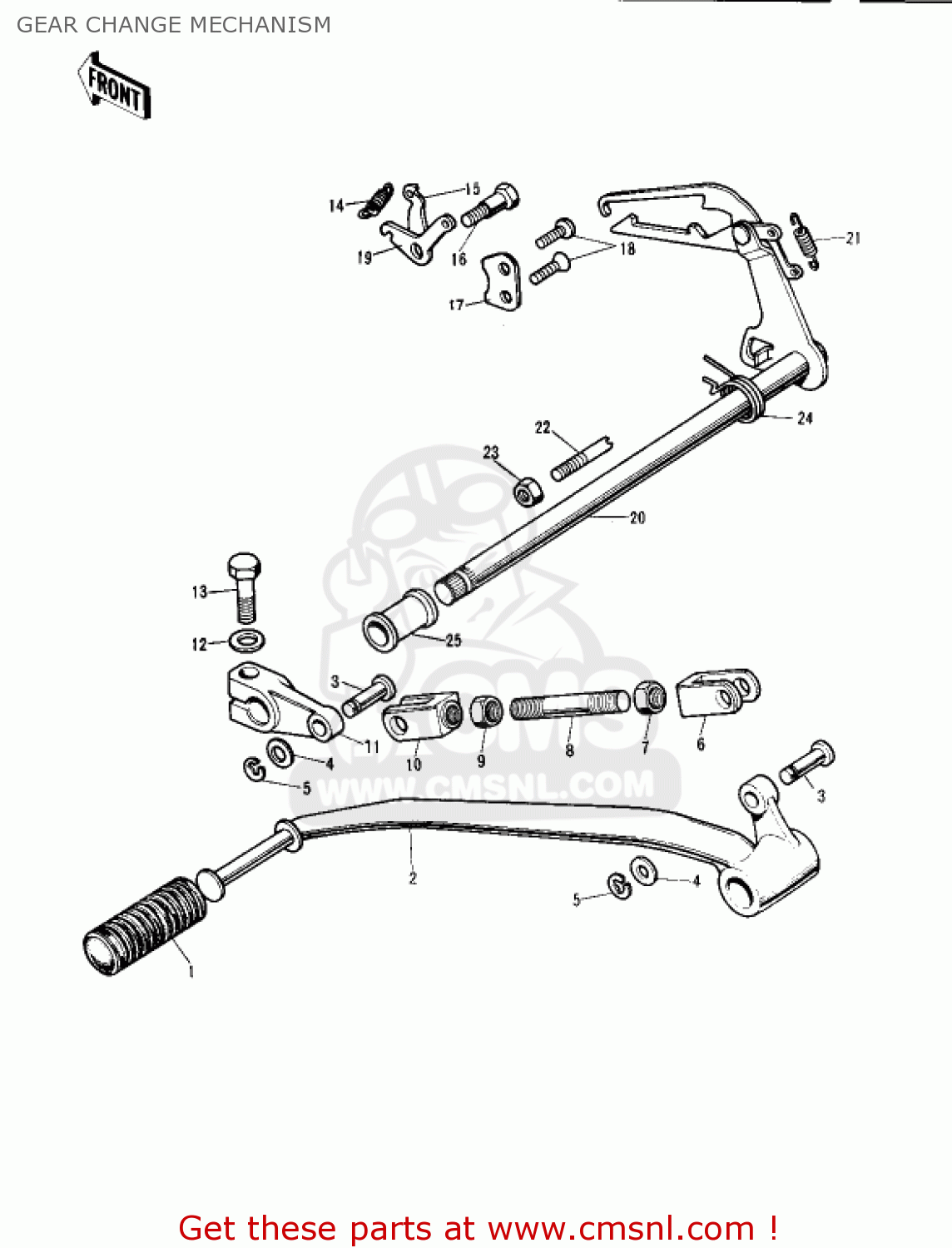

GEAR CHANGE MECHANISM

ref

part #

description

quantity

1

13157004
ref: 1

RUBBER-CHANGE PEDAL

€ 4.00

2

13242009
ref: 2

GEAR CHANGE PEDAL ASSEMBLY

€ 27.50

3

92043069
ref: 3

PIN,8X15.4

€ 7.00

4

920221028
ref: 4

WASHER,8.5X13X1

€ 2.50

5

482K5000
ref: 5

CIRCLIP,5MM

€ 2.00

6

13159008
ref: 6

CONNECTOR,B

€ 51.50

7

92017010
ref: 7

NUT,8MM

€ 3.50

8

92003074
ref: 8

ROD

€ 16.00

9

318N0800
ref: 9

NUT,8MM

€ 2.50

10

13159007
ref: 10

CONNECTOR,A

€ 14.00

11

13158007
ref: 11

LEVER-GEAR CHANGE

€ 50.50

12

461F0800
ref: 12

WASHER-SPRING,8MM

€ 0.50

13

921501488
ref: 13
S1-A/B

BOLT

€ 5.50

13

115G0825
ref: 13
S1-C,KH250-A5

BOLT-HEX,HEAD,8X25

€ 3.00

14

92081091
ref: 14

SPRING-COIL

€ 3.50

15

13170005
ref: 15

PLATE,CHANGE DRUM LEV

€ 7.00

16

92011023
ref: 16

SCREW-PAN HEAD

€ 2.50

17

13169007
ref: 17

PLATE-DRUM LEV POSTON

€ 9.00

18

221B0616
ref: 18

SCREW-CNTSNK HD,6X16

€ 0.50

19

13236002
ref: 19

LEVER-COMP,CHNG RETRN

€ 13.00

20

13161036
ref: 20

LEVER ASSY,GEAR CHNGE

€ 55.50

21

921441720
ref: 21

SPRING,CHANGE LEVER

€ 3.00

22

920011401
ref: 22

BOLT,RETURN SPRING

€ 3.00

23

312B0800
ref: 23

NUT,8MM

€ 0.50

24

920811129
ref: 24

SPRING,TENTION

€ 6.50

25

13171004
ref: 25

DUST SHIELD-CHNG SHT

€ 6.50
