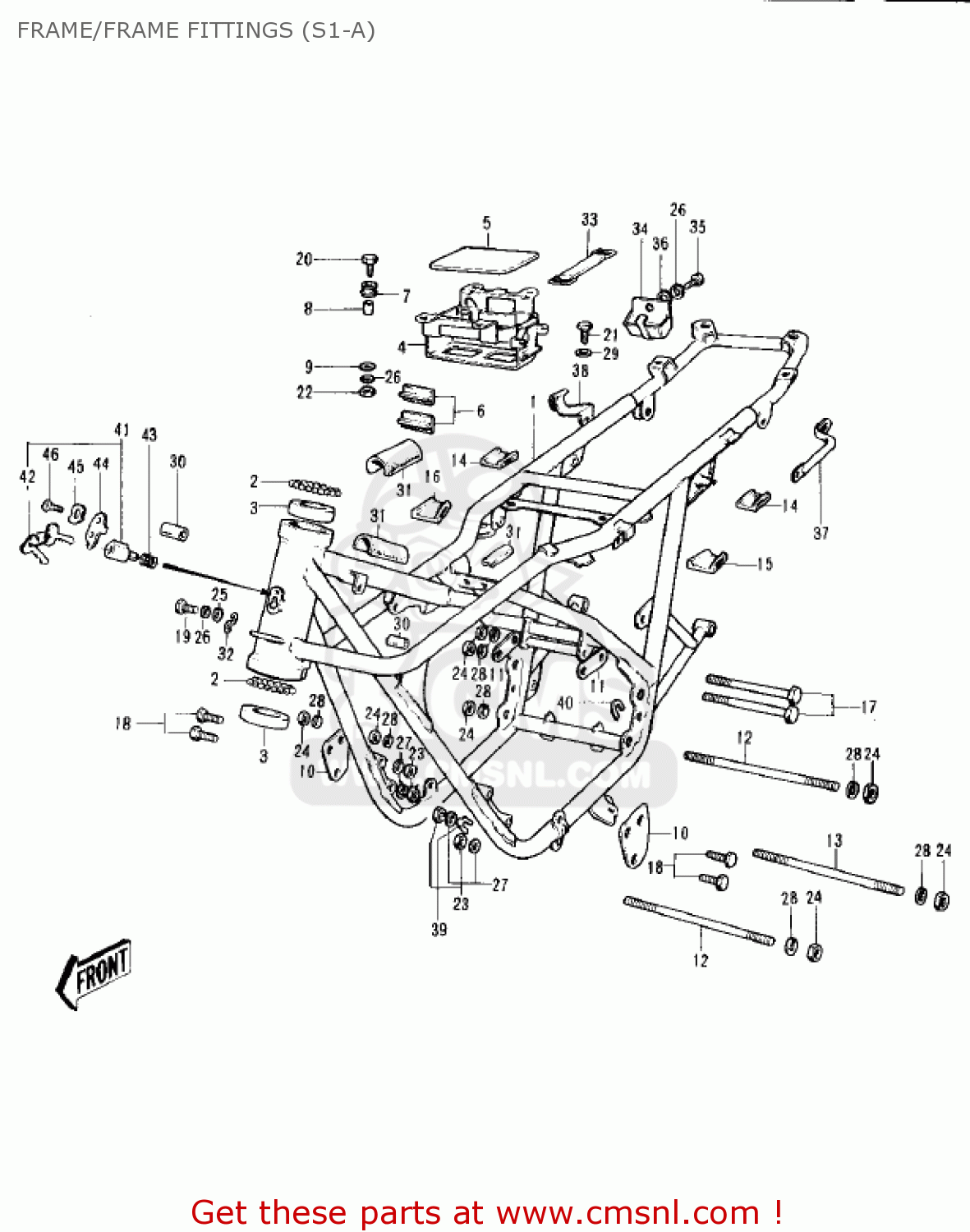

FRAME/FRAME FITTINGS (S1-A)

ref

part #

description

quantity

1

32002061
ref: 1

FRAME

€ 480.00

2

600A0800
ref: 2

BALL-STEEL,1/4

€ 0.50

3

92048006
ref: 3

RACE-STRNG BEARIN-STE

€ 11.50

4

32099008
ref: 4

CASE-BATTERY

€ 37.00

5

32103006
ref: 5

MAT-BATTERY

€ 3.00

6

32103003
ref: 6

DAMPER,RECTIFIER RUBB

€ 3.50

7

92075076
ref: 7

DAMPER

€ 3.00

8

92027129
ref: 8

COLLAR,6.8X10X8.5

€ 3.00

9

92022125
ref: 9

WASHER,6.5X20X1.6

€ 1.00

10

32030022
ref: 10

PLATE-ENGINE MOUNT

€ 4.00

11

32030023
ref: 11

PLATE-ENGINE MOUNT

€ 8.00

12

92003182
ref: 12

BOLT, 10 X 237

€ 7.00

13

92003181
ref: 13

BOLT,10X225

€ 8.50

14

31082007
ref: 14

RUBBER PAD

€ 3.00

15

31082008
ref: 15

RUBBER PAD

€ 4.50

16

31082009
ref: 16

RUBBER PAD

€ 6.50

17

920011602
ref: 17

BOLT,FLANGED,10X110

€ 7.50

18

920011182
ref: 18

BOLT,10X45

€ 6.00

19

112G0612
ref: 19

BOLT-UPSET

€ 2.50

20

112B0622
ref: 20

BOLT, 6X22

€ 2.50

21

220B0614
ref: 21

SCREW-PAN HEAD,6X14

€ 2.00

22

311B0600
ref: 22

NUT,6MM

€ 0.50

23

311B0800
ref: 23

NUT,8MM

€ 0.50

24

314B1000
ref: 24

NUT,10MM

€ 0.50

25

410B0600
ref: 25

WASHER-PLAIN-SMALL,6M

€ 0.50

26

461F0600
ref: 26

WASHER-SPRING,6MM

€ 0.50

27

461F0800
ref: 27

WASHER-SPRING,8MM

€ 0.50

28

461F1000
ref: 28

WASHER-SPRING,10MM

€ 0.50

29

464H0600
ref: 29

WASHER-LOCK,6MM

€ 0.50

30

92075044
ref: 30

DAMPER,FUEL TANK

€ 3.00

31

51067002
ref: 31

MAT-FUEL TANK

€ 12.00

32

92037108
ref: 32

CLAMP

€ 6.00

33

92072012
ref: 33

BAND-TOOL

€ 4.50

34

32132001
ref: 34

COVER-SPARK PLUG

€ 1.50

35

112B0614
ref: 35

BOLT-UPSET 6X14

€ 2.50

36

92022024
ref: 36

WASHER,7X16X1.2

€ 2.50

37

32109013
ref: 37

GRIP-FRAME

€ 15.00

38

32122006
ref: 38

BRACKET-HELMET HOLDER

€ 2.00

39

92025049
ref: 39

SHIM-ENG FIT RR,0.8MM

€ 0.50

39

92025050
ref: 39

SHIM-ENG FIT RR,1.0MM

€ 0.50

39

92025051
ref: 39

SHIM-ENG FIT RR,1.6MM

€ 0.50

39

92025052
ref: 39

SHIM-ENG FIT RR,2.0MM

€ 0.50

40

92025053
ref: 40

SHIM,T=0.5

€ 3.00

40

92025054
ref: 40

SHIM-ENG FIT FR,0.8MM

€ 2.50

40

92025055
ref: 40

SHIM-ENG FIT FR,1.0MM

€ 1.50

40

92025056
ref: 40

SHIM-ENG FIT FR,1.6MM

€ 1.00

40

92025057
ref: 40

SHIM,T=2.0

€ 2.50

40

92025058
ref: 40

SHIM,T=2.3

€ 2.50

41

27016030
ref: 41

LOCK ASSY-STEERING

€ 11.50

42

2701801665
ref: 42

KEY SET,#265

€ 4.50

42

2701801679
ref: 42

KEY SET,#279

€ 4.50

43

27032001
ref: 43

SPRING-STEERING LOCK

€ 3.50

44

110121134
ref: 44

CAP,STEERING LOCK

€ 4.50

45

92097003
ref: 45

WASHER

€ 2.50

46

92008007
ref: 46

SCREW-TAPPING

€ 2.50
