FENDERS (S1-A/B/C)
KH250A5 1976 CANADA

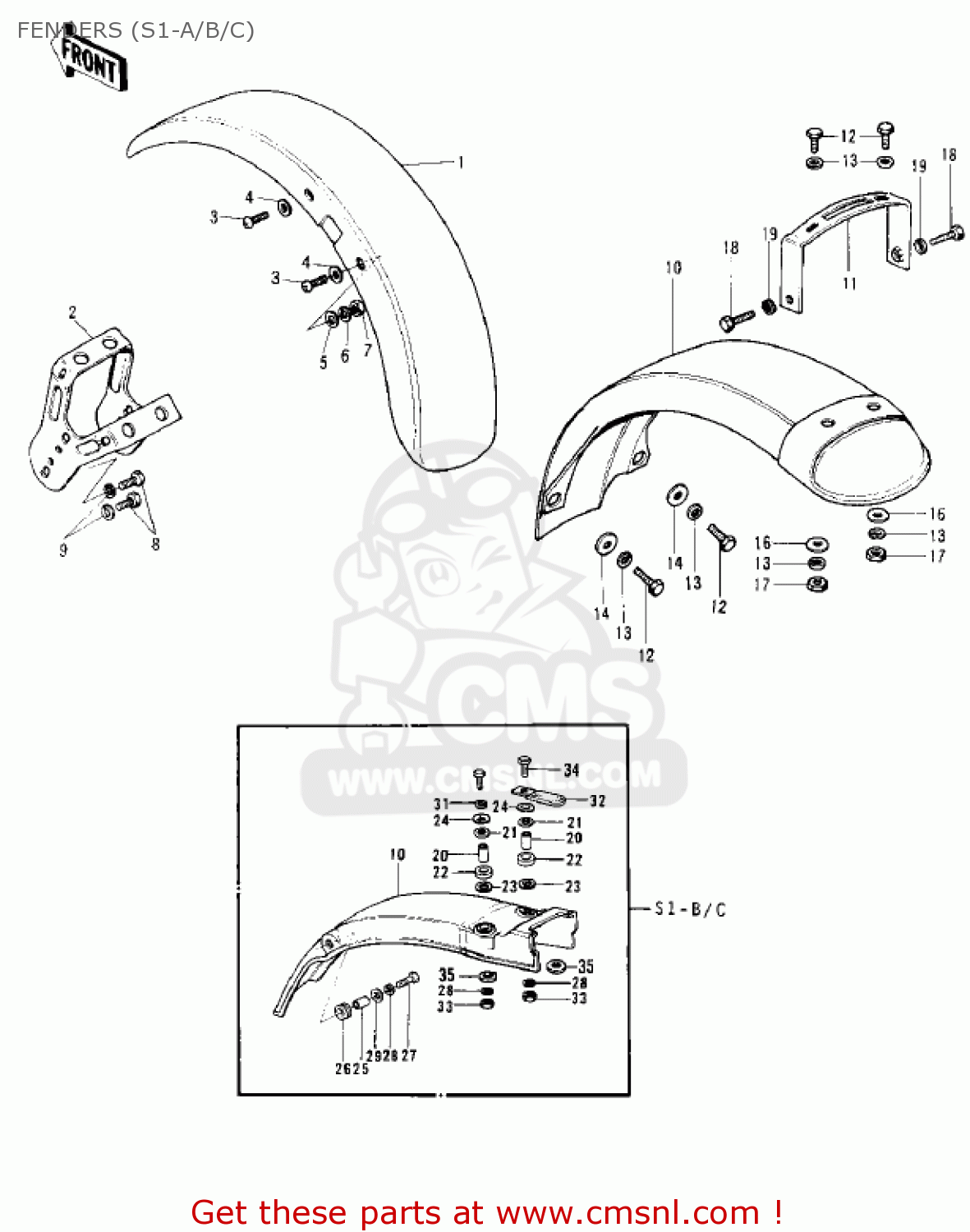

Fenders (s1-a/b/c) diagram KH250A5 1976 CANADA
FENDERS (S1-A/B/C) KH250A5 1976 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
35004075
ref: 1
S1-A
FENDER-FRONT
€ 80.50
1
35004084
ref: 1
S1-B/C
FENDER,FRONT
€ 111.00
2
35009026
ref: 2
S1-A
BRACE,FRONT FENDER
€ 17.00
2
35009030
ref: 2
S1-B/C
BRACE,FRONT FENDER
€ 26.00
3
220E0614
ref: 3
SCREW-PAN HEAD,6X14
€ 2.00
4
92022193
ref: 4
WASHER,6.5X20X1.6,WHI
€ 3.50
5
411B0600
ref: 5
WASHER-PLAIN,6MM
€ 0.50
6
461F0600
ref: 6
WASHER-SPRING,6MM
€ 0.50
7
311B0600
ref: 7
NUT,6MM
€ 0.50
8
116B0816
ref: 8
BOLT-HEX HEAD,8X16
€ 0.50
9
461F0800
ref: 9
WASHER-SPRING,8MM
€ 0.50
10
35022056
ref: 10
S1-A
FENDER-REAR
€ 33.00
10-1
35022099
ref: 10-1
S1-B/C
FENDER,REAR
€ 16.50
11
35025021
ref: 11
S1-A
BRACKET-REAR FENDER
€ 8.00
12
112G0616
ref: 12
S1-A
BOLT UPSET,6X16
€ 1.00
13
461F0600
ref: 13
S1-A
WASHER-SPRING,6MM
€ 0.50
14
92027122
ref: 14
S1-A
COLLAR,L=4.7
€ 5.50
15
92022125
ref: 15
S1-A
WASHER,6.5X20X1.6
€ 1.00
16
411B0600
ref: 16
S1-A
WASHER-PLAIN,6MM
€ 0.50
17
311B0600
ref: 17
S1-A
NUT,6MM
€ 0.50
18
113N1025
ref: 18
S1-A
BOLT,HEX HEAD,10X25
€ 2.50
19
461F1000
ref: 19
S1-A
WASHER-SPRING,10MM
€ 0.50
20
92027162
ref: 20
S1-B/C
COLLAR-REAR FENDER
€ 4.50
21
92075121
ref: 21
S1-B/C
DAMPER,FENDER
€ 2.50
22
92075133
ref: 22
S1-B/C
DAMPER,RR FENDER
€ 4.00
23
92022227
ref: 23
S1-B/C
WASHER-PLAIN,7MM
€ 3.00
24
92022228
ref: 24
S1-B/C
WASHER-PLAIN,7MM
€ 2.50
25
92027103
ref: 25
S1-B/C
COLLAR
€ 2.50
26
92075105
ref: 26
S1-B/C
DAMPER
€ 2.50
27
112G0616
ref: 27
S1-B/C
BOLT UPSET,6X16
€ 1.00
28
461F0600
ref: 28
S1-B/C
WASHER-SPRING,6MM
€ 0.50
29
92022125
ref: 29
S1-B/C
WASHER,6.5X20X1.6
€ 1.00
30
110N0632
ref: 30
S1-B/C
BOLT,6X32
€ 2.50
31
411B0600
ref: 31
S1-B/C
WASHER-PLAIN,6MM
€ 0.50
32
92037113
ref: 32
S1-B/C
CLAMP
€ 4.00
33
311B0600
ref: 33
S1-B/C
NUT,6MM
€ 0.50
34
110N0636
ref: 34
S1-B/C
BOLT,HEX HEAD,6X36
€ 2.00
35
92022228
ref: 35
S1-B/C
WASHER-PLAIN,7MM
€ 2.50
