AIR CLEANER/MUFFLERS
KH250A5 1976 CANADA

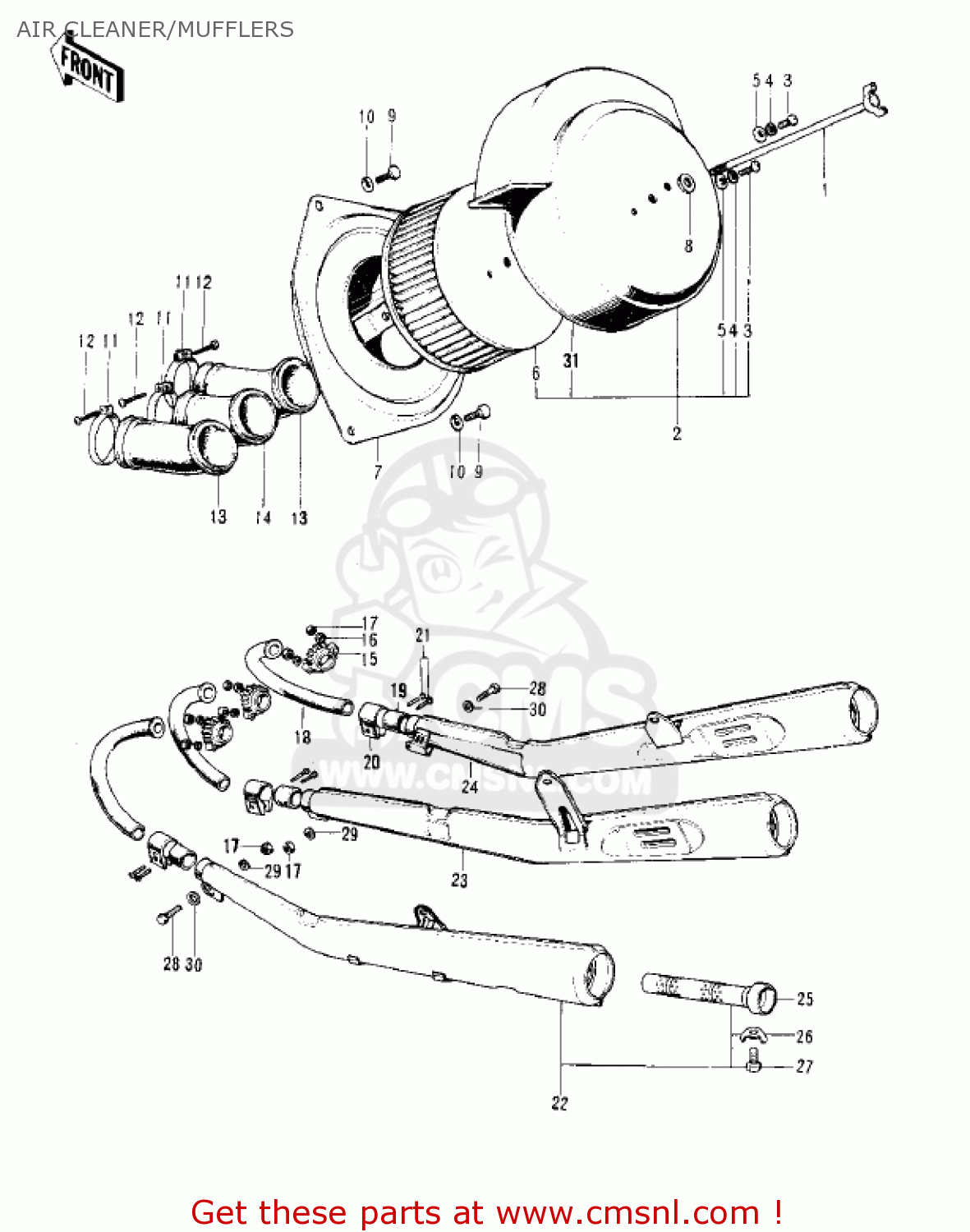

Air cleaner/mufflers diagram KH250A5 1976 CANADA
AIR CLEANER/MUFFLERS KH250A5 1976 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
92003073
ref: 1
BOLT-AIR CLEANER FIT
€ 7.00
2
1101005721
ref: 2
S1-A/B
AIR CLEANER ASY,BLACK
€ 44.50
2
1101009021
ref: 2
S1-C
AIR CLEANER ASY,BLAC
€ 71.50
2
1101009021
ref: 2
KH250-A5
AIR CLEANER ASY,BLAC
€ 71.50
3
220B0408
ref: 3
SCREW-PAN-CROS
€ 0.50
4
461F0400
ref: 4
WASHER-SPRING,4MM
€ 0.50
5
410B0400
ref: 5
WASHER-PLAIN-SMALL,4M
€ 0.50
6
11013026
ref: 6
ELEMENT-AIR CLEANER
€ 18.00
7
11011013
ref: 7
BODY-AIR CLEANER
€ 25.00
8
92022021
ref: 8
WASHER-LEG SHIELD FIT
€ 2.00
9
112G0610
ref: 9
BOLT,6X10
€ 0.50
10
461F0600
ref: 10
WASHER-SPRING,6MM
€ 0.50
11
92037065
ref: 11
S1-A
CLAMP-AIR INLET PIPE
€ 6.50
11
920371242
ref: 11
S1-B/C,KH250-A5
CLAMP,CARBURETOR HOLD
€ 6.50
12
220B0635
ref: 12
S1-A
SCREW-PAN HEAD,6X35
€ 1.00
12
220C0635
ref: 12
S1-B/C,KH250-A5
SCREW-PAN-CROS,6X35,B
€ 3.50
13
11015027
ref: 13
DUCT,AIR INLET,LH&RH
€ 22.00
14
11015028
ref: 14
DUCT,AIR INLET,CNT
€ 12.50
15
18069038
ref: 15
HOLDER-EXHAUST PIPE
€ 37.00
16
461F0800
ref: 16
WASHER-SPRING,8MM
€ 0.50
17
311B0800
ref: 17
NUT,8MM
€ 0.50
18
18049063
ref: 18
PIPE-EXHAUST
€ 54.50
19
18043008
ref: 19
SEAL,MUFFLER
€ 27.00
20
1804400479
ref: 20
HOLDER,MUFFLER CONECT
€ 19.00
21
220B0628
ref: 21
SCREW-PAN HEAD,6X28
€ 2.50
22
18001146
ref: 22
S1-A
MUFFLER ASSY,L.H
€ 210.00
22
18001146
ref: 22
S1-C,KH250-A5
MUFFLER ASSY,L.H
€ 210.00
23
18001147
ref: 23
S1-A
MUFFLER ASSY,CENTER
€ 231.00
23
18001147
ref: 23
S1-B
MUFFLER ASSY,CENTER
€ 231.00
23
18001147
ref: 23
S1-C,KH250-A5
MUFFLER ASSY,CENTER
€ 231.00
24
18001148
ref: 24
S1-A
MUFFLER ASSY,R.H
€ 222.50
24
18001148
ref: 24
S1-B
MUFFLER ASSY,R.H
€ 222.50
24
18001148
ref: 24
S1-C,KH250-A5
MUFFLER ASSY,R.H
€ 222.50
25
18033050
ref: 25
S1-A/B
BAFFLE TUBE
€ 57.00
25
18033087
ref: 25
S1-C,KH250-A5
BAFFLE TUBE
€ 71.50
26
92024016
ref: 26
WASHER-LOCK,6MM
€ 1.50
27
112G0612
ref: 27
BOLT-UPSET
€ 2.50
28
115G0820
ref: 28
BOLT,8X20
€ 2.00
29
461F0800
ref: 29
WASHER-SPRING,8MM
€ 0.50
30
411B0800
ref: 30
WASHER-PLAIN,8MM
€ 0.50
31
11024001
ref: 31
CLEANER CAP SEAL,RUBBER
€ 17.00
