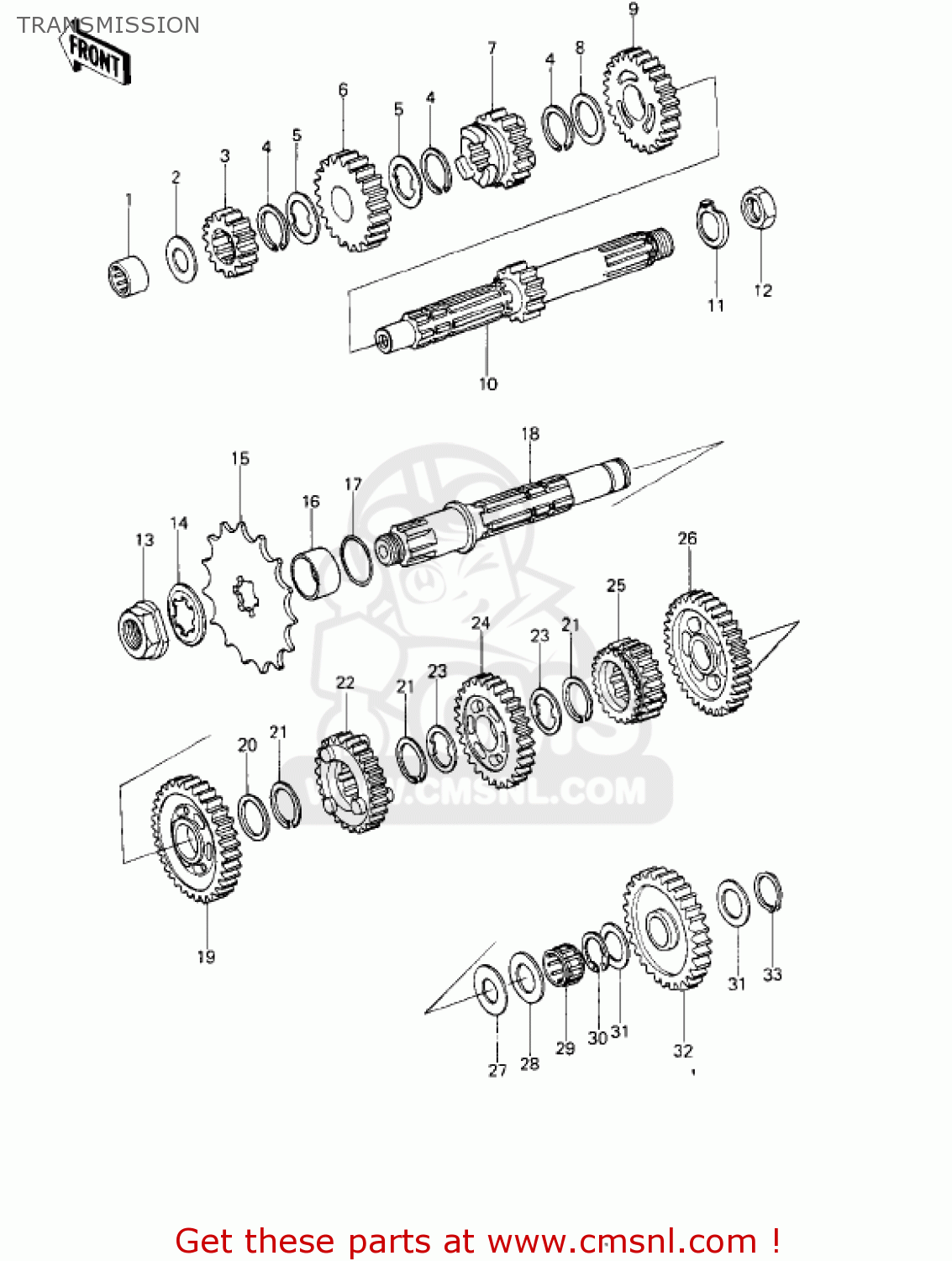

TRANSMISSION

ref

part #

description

quantity

1

92046057
ref: 1
HK1516

NEEDLE BEARING,HK1516

€ 22.00

2

92022279
ref: 2
1.0 T

WASHER,15.3X25X1

€ 7.00

3

13130046
ref: 3
14 T

GEAR,DRIVESHAFT,2ND

€ 121.50

4

92033029
ref: 4

CIRCLIP,18MM

€ 6.50

5

92024059
ref: 5
O.D.=25

WASHER,LOCK

€ 3.00

6

13134031
ref: 6
21 T

GEAR,DRIVESHAFT,4TH

€ 136.00

7

13132046
ref: 7
18 T

GEAR,DRIVESHAFT,3RD

€ 208.50

8

92022252
ref: 8
I.D.=20.5

WASHER

€ 4.00

9

13136062
ref: 9
21 T

TOP GEAR DRIVESHAFT

€ 148.00

10

13127057
ref: 10
11 T

DRIVESHAFT

€ 270.50

11

92024076
ref: 11

WASHER,LOCK,16M/M

€ 2.50

12

92015072
ref: 12

NUT,LOCK,16MM

€ 4.50

13

92015075
ref: 13

NUT,18M/M

€ 12.00

14

92024065
ref: 14
I.D.=21.5

WASHER,LOCK

€ 3.50

15

13144068
ref: 15

ENGINE SPROCKET,14T

€ 120.50

15

131441017
ref: 15
OFF-ROAD USE ONLY

ENGINE SPROCKET,13T

€ 30.50

16

920271053
ref: 16

ENGINE SPROCKET COLLAR

€ 9.50

17

92055035
ref: 17

O RING

€ 3.00

18

13128043
ref: 18

SHAFT,OUTPUT

€ 95.50

19

13131054
ref: 19
27 T

GEAR,OUTPUT SHAFT,2ND

€ 167.50

20

92022198
ref: 20
I.D.=22.3

WASHER-PLAIN

€ 3.50

21

92033025
ref: 21

CIRCLIP,25MM

€ 3.00

22

13135036
ref: 22
24 T

GEAR,OUTPUT SHAFT,4TH

€ 146.00

23

92024039
ref: 23
O.D.=27

WASHER-LOCK

€ 4.00

24

13133043
ref: 24
26 T

GEAR,OUTPUT SHAFT,3RD

€ 200.50

25

13137041
ref: 25
20 T

TOP GEAR,OUTPUT SHAFT

€ 131.50

26

13129060
ref: 26
30 T

LOW GEAR,OUTPUT SHAFT

€ 200.50

27

92022280
ref: 27
PHOSPHOR BRONZ

WASHER,PLAIN

€ 3.00

28

92022281
ref: 28
STEEL

WASHER,PLAIN

€ 4.00

29

920461184
ref: 29
KT172314

BEARING-NEEDLE

€ 20.00

30

92033032
ref: 30

CIRCLIP

€ 3.00

31

92022197
ref: 31
I.D.=17.3

WASHER-THRUST

€ 1.00

32

13073012
ref: 32
28 T

IDLE GEAR

€ 49.00

33

480J1600
ref: 33

CIRCLIP-TYPE-C,16MM

€ 2.50
