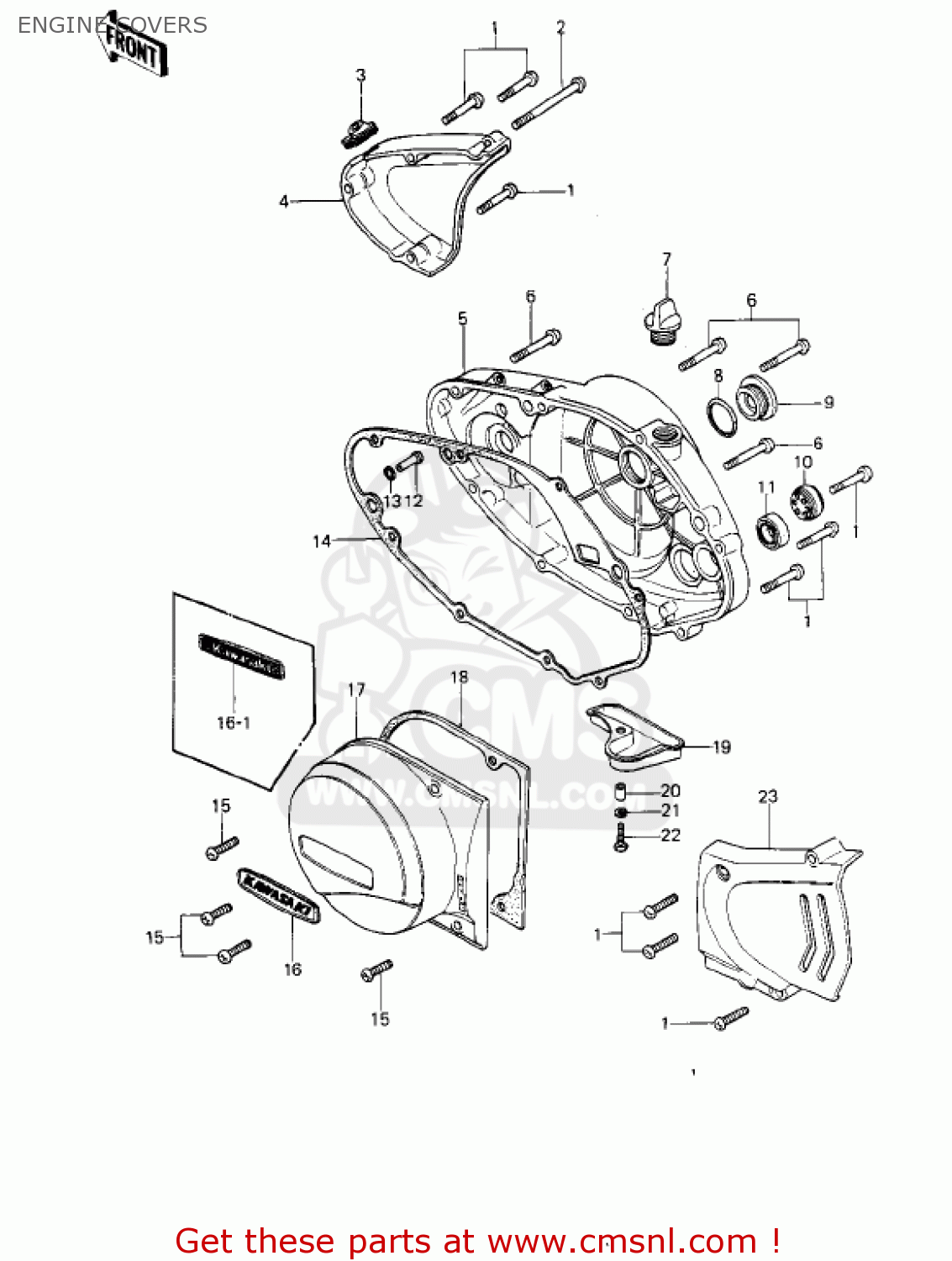

ENGINE COVERS

ref

part #

description

quantity

1

220B0630
ref: 1

SCREW-PAN HEAD,6X30

€ 2.50

2

220B0670
ref: 2

SCREW-PAN HEAD,6X70

€ 2.50

3

92071097
ref: 3

GROMMET

€ 3.50

4

140300702H
ref: 4

OIL PUMP COVER,BARREL FINISH

€ 119.00

5

140321182H
ref: 5

ENGINE COVER,RH,BARREL FINISH

€ 331.50

6

220B0640
ref: 6

SCREW-PAN HEAD,6X40

€ 2.00

7

16115018
ref: 7

PLUG,OIL FILLER

€ 7.00

8

92055091
ref: 8

0 RING

€ 4.00

9

92067024
ref: 9

PLUG,RELEASE

€ 7.50

10

52015004
ref: 10

GAUGE,OIL LEVEL

€ 27.00

11

92049012
ref: 11

OIL SEAL SB20285

€ 8.50

12

16128006
ref: 12

VALVE-CHECK

€ 7.50

13

92055037
ref: 13

RING-O,CHECK VALVE

€ 2.50

14

14046036
ref: 14

GASKET,R.H.ENGINE COV (MCA)

€ 15.00

15

220B0622
ref: 15

SCREW-PAN HEAD,6X22

€ 2.50

16

560181032
ref: 16
KE250-B1/B2

ENGINE COVER EMBLEM

€ 5.50

16-1

560181032
ref: 16-1
KE250-B3

ENGINE COVER EMBLEM

€ 5.50

17

140310962H
ref: 17

ENGINE COVER,LH,BARREL FINISH

€ 195.50

18

14045030
ref: 18

ENGINE COVER GASKET,LH

€ 20.50

19

14036007
ref: 19

RELEASE COVER

€ 17.00

20

92027241
ref: 20

COLLAR

€ 4.50

21

461F0600
ref: 21

WASHER-SPRING,6MM

€ 0.50

22

112B0622
ref: 22

BOLT, 6X22

€ 2.50

23

140260362H
ref: 23

CHAIN CASE COVER,BARREL FINISH

€ 208.50

all assemblies
