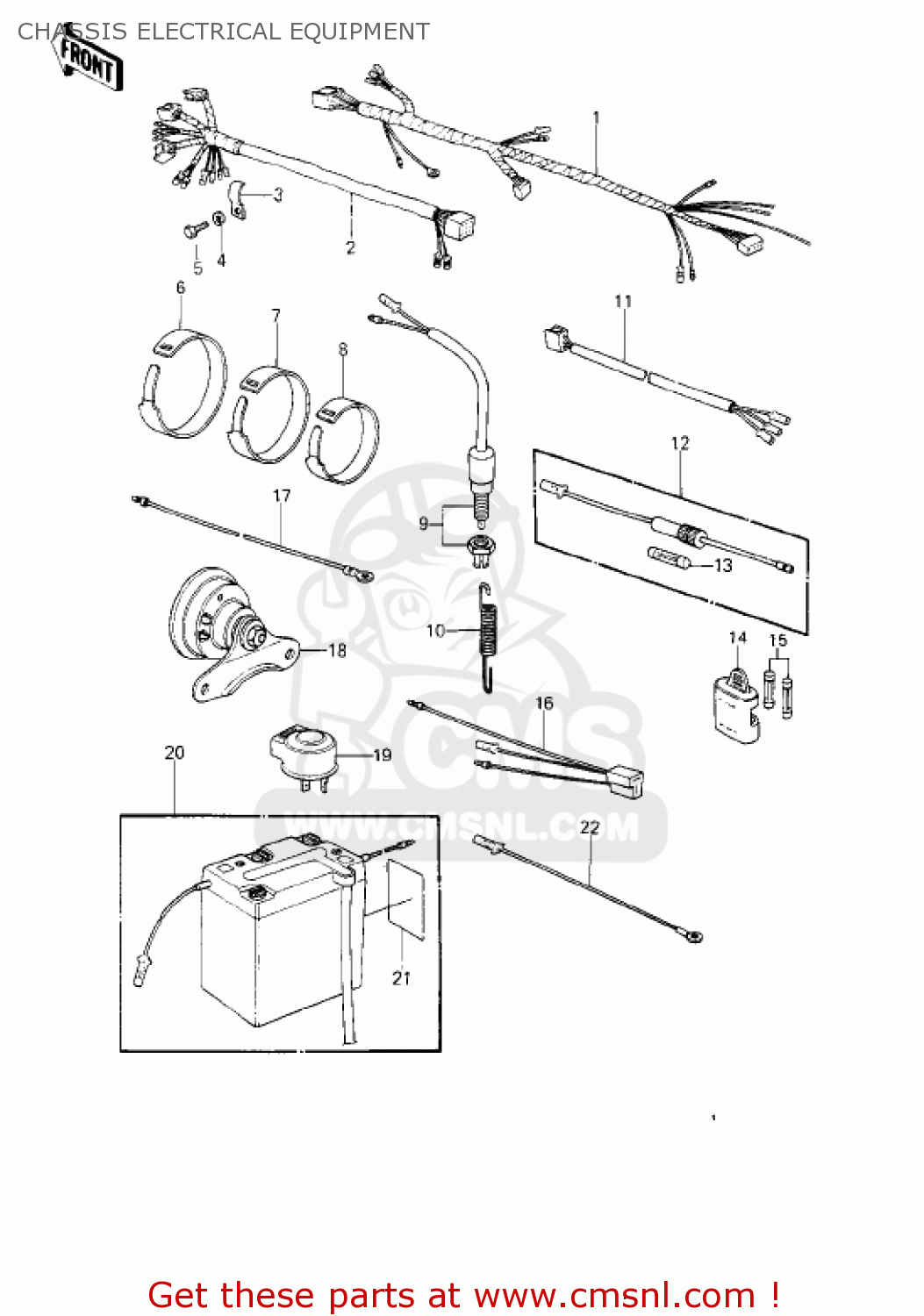

CHASSIS ELECTRICAL EQUIPMENT

ref

part #

description

quantity

1

26001141
ref: 1

WIRING HARNESS,MAIN

€ 144.00

2

26002061
ref: 2

HEADLAMP WIRING HARNESS

€ 223.50

3

92037086
ref: 3

CLAMP-WIRE HARNESS

€ 4.00

4

461F0600
ref: 4

WASHER-SPRING,6MM

€ 0.50

5

112G0612
ref: 5

BOLT-UPSET

€ 2.50

6

92072032
ref: 6
L=218 M/M

BAND,LONG

€ 3.00

7

92072031
ref: 7
L=149 M/M

BAND,MIDDLE

€ 3.00

8

92072030
ref: 8
L=123 M/M

BAND,SHORT

€ 3.00

9

27010025
ref: 9

SWITCH,BRAKE LAMP

€ 18.50

10

27011006
ref: 10

SPRING-BRAKE LAMP SW

€ 3.50

11

260011007
ref: 11

HARNESS,TAIL LAMP

€ 10.50

12

26004025
ref: 12

FUSE-ASSY

€ 12.50

13

26006007
ref: 13

FUSE 15A

€ 2.50

14

26016004
ref: 14

HOLDER,SPARE FUSE

€ 7.50

15

26006007
ref: 15

FUSE 15A

€ 2.50

16

26011072
ref: 16

WIRE,RECTIFIER LEAD

€ 7.00

17

26011082
ref: 17

WIRE-LEAD,GROUND

€ 3.50

18

27003083
ref: 18

HORN

€ 179.50

19

27002013
ref: 19

RELAY-ASSY,TURN SIGNA

€ 27.00

20

K26012034
ref: 20
6N6 1D 2

BATTERY,YUA,6N6-1D-2

€ 78.00

21

560401036
ref: 21

WARNING, BATTERY

€ 2.00

22

260111009
ref: 22

BATTERY WIRE LEAD,GROUND

€ 3.00

all assemblies
