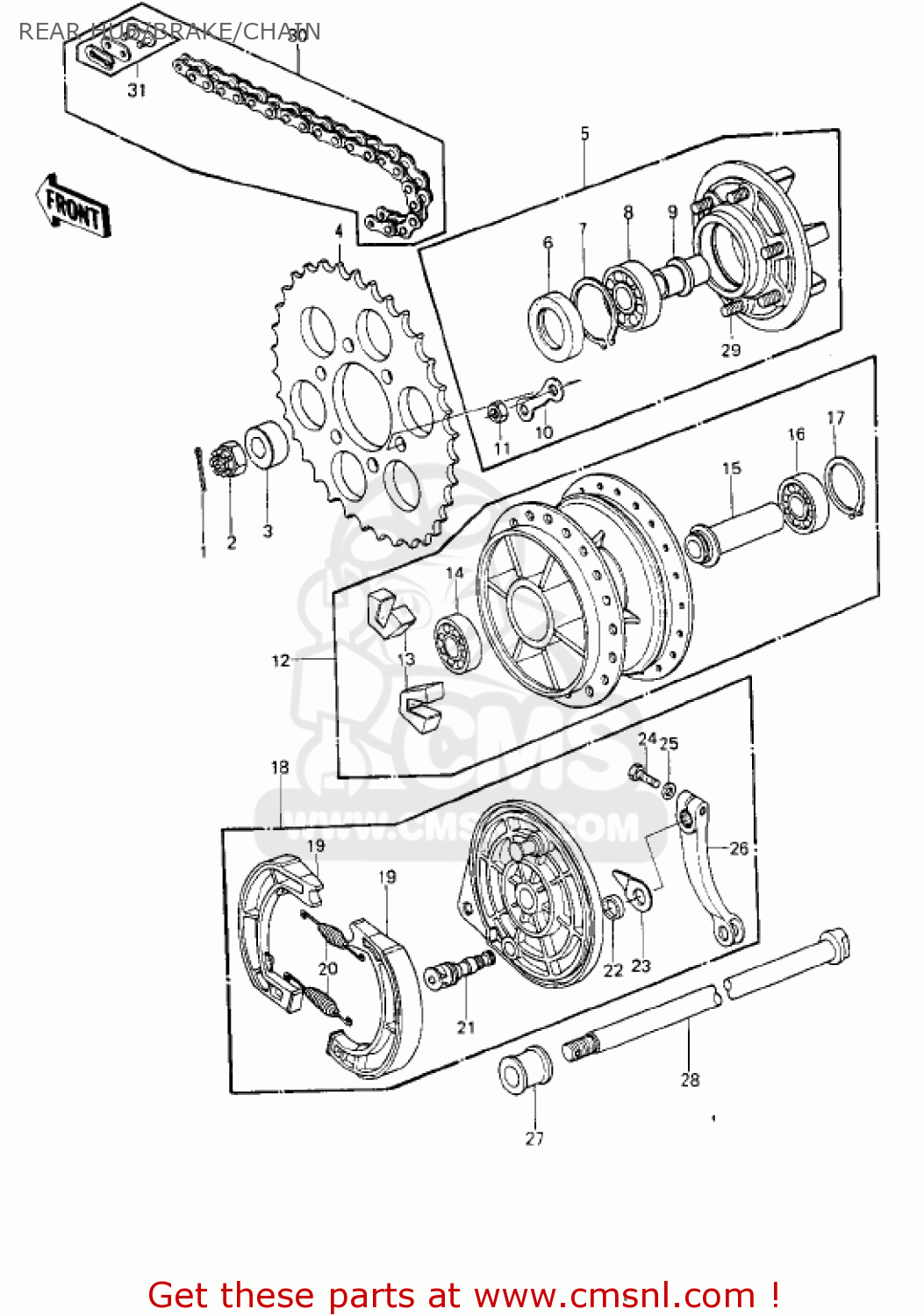

REAR HUB/BRAKE/CHAIN

ref

part #

description

quantity

1

550D4035
ref: 1

PIN-COTTER,4.0X35

€ 1.00

2

92015055
ref: 2

NUT,16MM

€ 8.00

3

42032068
ref: 3

COLLAR,17X35X17.5

€ 18.00

4

42041175
ref: 4

REAR SPROCKET,39T

€ 37.50

5

42008030
ref: 5

COUPLING ASSY,REAR HB

€ 111.50

6

92052006
ref: 6

OIL SEAL WTC35527

€ 6.50

7

920331043
ref: 7

RING,SNAP,56.2M/M

€ 6.00

8

601B6205
ref: 8

BEARING-BALL,#6205C3

€ 14.00

9

42036023
ref: 9

SLEEVE,COUPLING

€ 27.00

10

92088007
ref: 10

WASHER,LOCK

€ 8.00

11

42045005
ref: 11

NUT,10MM

€ 5.00

12

42005052
ref: 12

DRUM ASSY,REAR BRAKE

€ 275.50

13

42014024
ref: 13

DAMPER,RR BRAKE DRUM

€ 9.00

14

601B6303
ref: 14

BEARING-BALL,#6303C3

€ 24.00

15

42010038
ref: 15

COLLAR,REAR HUB BEARG

€ 7.00

16

601B6303U
ref: 16

BEARING-BALL

€ 26.00

17

920331042
ref: 17

CIRCLIP,47M/M

€ 4.00

18

410351004
ref: 18

PANEL ASSY,REAR BRAKE

€ 308.00

19

42019011
ref: 19

SHOE,BRAKE (MCA)

€ 18.50

20

42020004
ref: 20

SPRING-BRAKE SHOE

€ 5.50

21

410501003
ref: 21

CAM SHAFT,REAR BRAKE

€ 10.00

22

41051001
ref: 22

DUST SHIELD-BRAKE CAM

€ 2.50

23

41085017
ref: 23

INDICATOR,BRAKE SHOE

€ 7.50

24

112G0625
ref: 24

BOLT-UPSET,6X25

€ 4.00

25

410B0600
ref: 25

WASHER-PLAIN-SMALL,6M

€ 0.50

26

42029040
ref: 26

LEVER,REAR BRAKE CAM

€ 34.50

27

42032069
ref: 27

REAR AXLE COLLAR,RH

€ 26.50

28

42031053
ref: 28

AXLE,REAR

€ 49.50

29

92004061
ref: 29

REAR HUB COUPLING STUD

€ 6.00

30

92057106
ref: 30
EK520SH

CHAIN ASSY, DRIVE

€ 45.00

31

920581001
ref: 31

JOINT-CHAIN

€ 4.50
