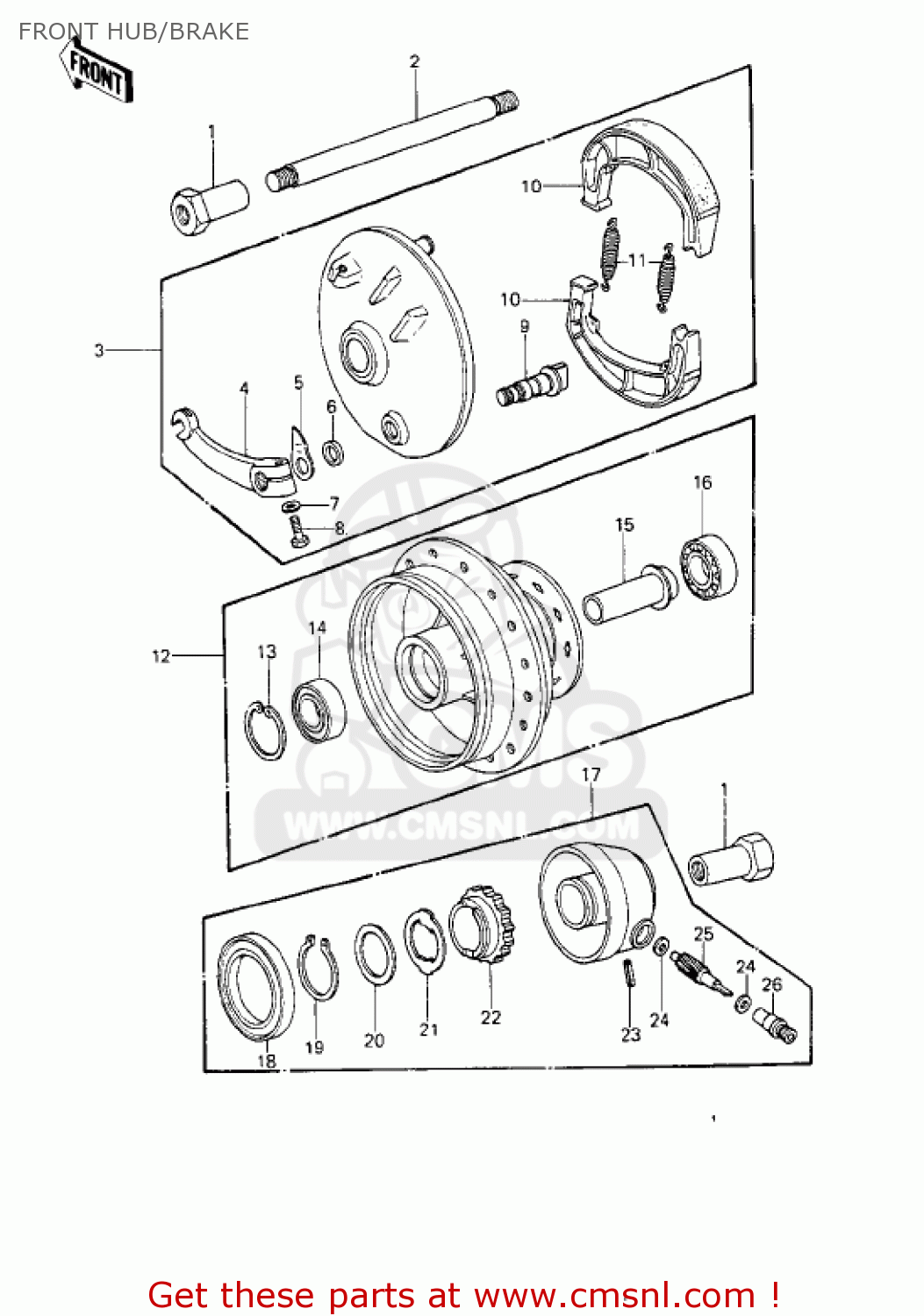

FRONT HUB/BRAKE

ref

part #

description

quantity

1

41069031
ref: 1

COLLAR,FRONT AXLE

€ 20.50

2

41068048
ref: 2
L=216 M/M

AXLE,FRONT

€ 26.50

3

41035082
ref: 3

PANEL ASSY,FRONT BRAK

€ 140.50

4

41053028
ref: 4

LEVER,BRAKE CAM

€ 21.00

5

41085017
ref: 5

INDICATOR,BRAKE SHOE

€ 7.50

6

41051001
ref: 6

DUST SHIELD-BRAKE CAM

€ 2.50

7

410B0600
ref: 7

WASHER-PLAIN-SMALL,6M

€ 0.50

8

112G0625
ref: 8

BOLT-UPSET,6X25

€ 4.00

9

42026027
ref: 9

CAM SHAFT,BRAKE

€ 9.00

10

410481068
ref: 10

SHOE-BRAKE (NAS)

€ 16.00

11

42020004
ref: 11

SPRING-BRAKE SHOE

€ 5.50

12

41034052
ref: 12

DRUM ASSY,FRONT BRAKE

€ 165.50

13

920331041
ref: 13

CIRCLIP,42MM

€ 4.00

14

92045033
ref: 14

BEARING,BALL,#6302NS

€ 20.00

15

41039037
ref: 15
15 2 X 22 X 51

COLLAR,FRONT HUB BRG

€ 7.50

16

601B6302
ref: 16

BEARING-BALL,#6302C3

€ 16.00

17

41078011
ref: 17

GEAR BOX ASSY

€ 103.50

18

654A506509
ref: 18

OIL SEAL,#50659

€ 10.50

19

480J2400
ref: 19

CIRCLIP-TYPE-C,24MM

€ 3.50

20

41065005
ref: 20

WASHER,24.5X32X0.8

€ 2.00

21

41064015
ref: 21

RECEIVER-SPEEDOMETER

€ 5.50

22

41059027
ref: 22
25T

GEAR SPEEDOMETER

€ 21.00

23

41082001
ref: 23

PIN-SPRING

€ 2.50

24

41063001
ref: 24

WASHER-THRST SPD PINI

€ 3.00

25

41060015
ref: 25
8T

PINION,SPEEDOMETER

€ 17.00

26

41062005
ref: 26

BUSHING,SPEEDOMETER C

€ 12.00
