TAIL LAMP
KE100-B9 1990 USA

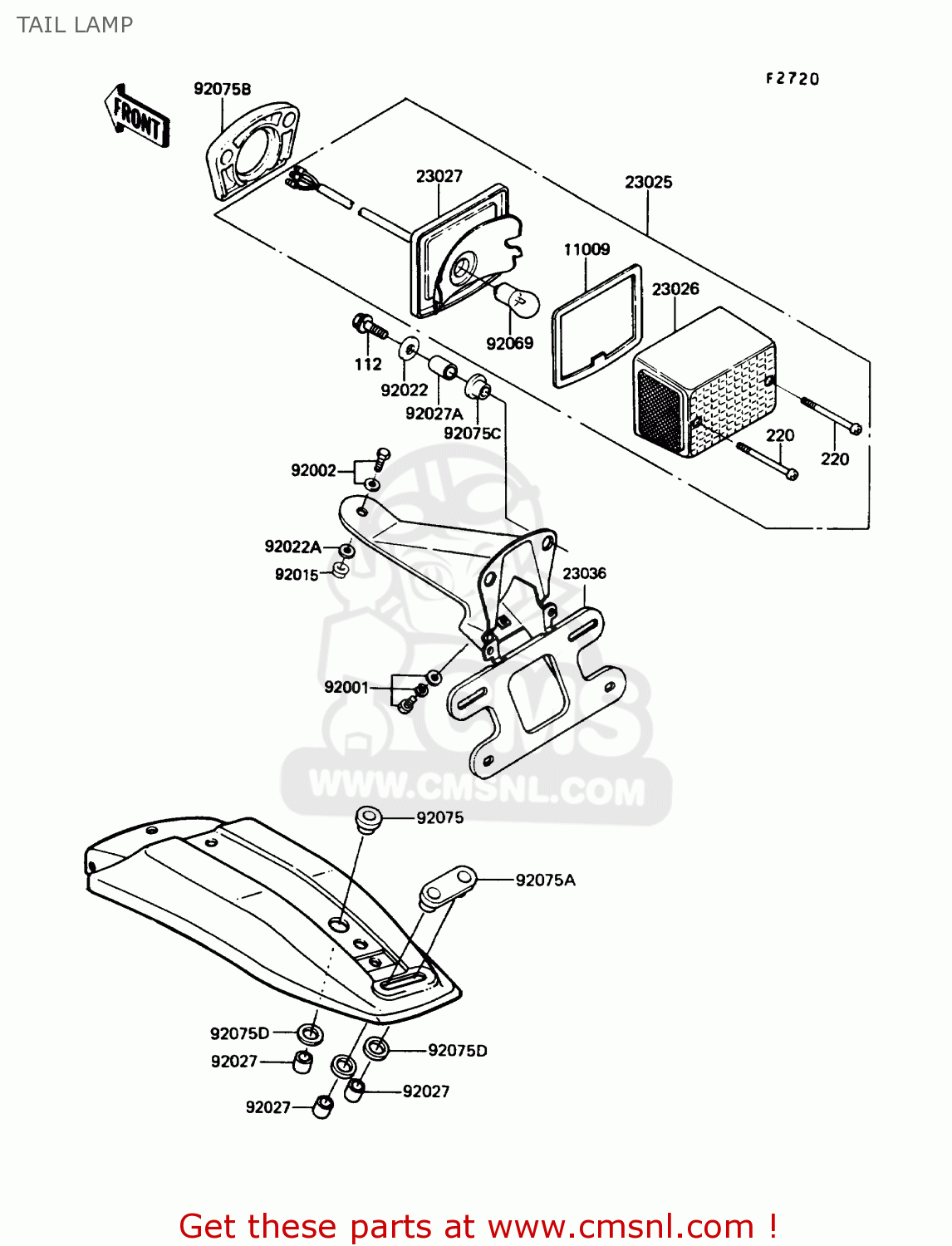

Tail lamp diagram KE100-B9 1990 USA
TAIL LAMP KE100-B9 1990 USA
×
prices are in EUR
ref
part #
description
quantity
112
112B0625
ref: 112
BOLT-UPSET,6X25
€ 4.00
220
220B0440
ref: 220
SCREW-PAN-CROS
€ 2.50
11009
110091078
ref: 11009
GASKET,TAIL LAMP LENS (NAS)
€ 4.50
23025
230251032
ref: 23025
TAIL LAMP
€ 83.50
23026
230261003
ref: 23026
LENS,TAIL LAMP
€ 50.50
23027
230271020
ref: 23027
BODY-COMP-TAIL LAMP
€ 71.50
23036
230361010
ref: 23036
LICENSE PLATE BRACKET
€ 62.00
92001
920011768
ref: 92001
BOLT
€ 2.00
92002
920021125
ref: 92002
BOLT,6X28
€ 2.50
92015
920151367
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92022A
920221557
ref: 92022A
WASHER,6.5X20X1.6
€ 1.00
92027
92027156
ref: 92027
COLLAR-BATTERY CASE
€ 3.00
92027A
920271819
ref: 92027A
COLLAR,6.1X8X15.7
€ 2.50
92069
92069074
ref: 92069
BULB,6V-32X3CP
€ 4.50
92075
920751004
ref: 92075
DAMPER,TAIL LAMP
€ 2.50
92075A
920751005
ref: 92075A
DAMPER,TAIL LAMP
€ 3.00
92075B
920751094
ref: 92075B
DAMPER,TAIL LAMP
€ 10.00
92075C
920751095
ref: 92075C
DAMPER
€ 2.00
92075D
92075310
ref: 92075D
DAMPER,RUBBER
€ 2.50
