MUFFLER
KE100-B9 1990 USA

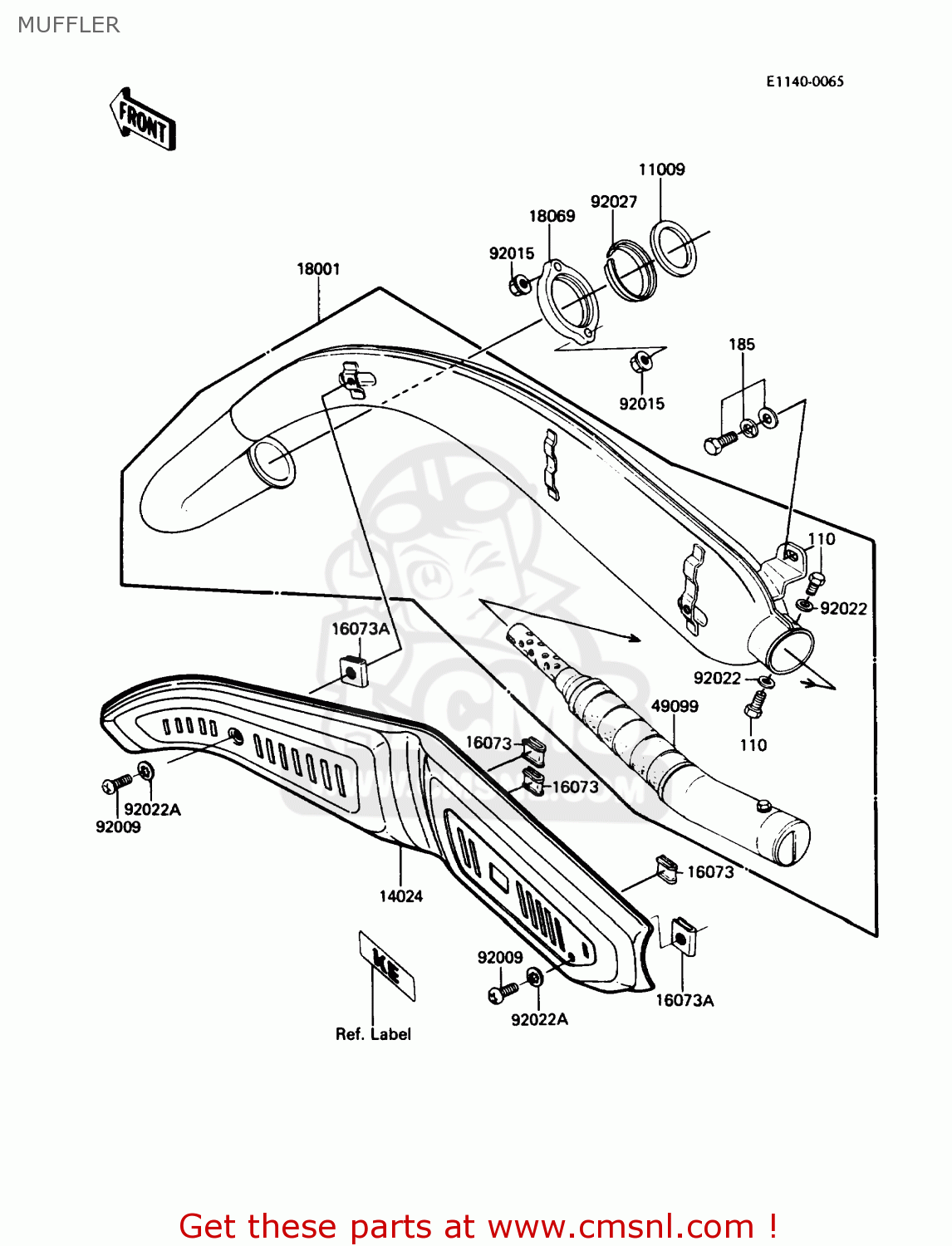

Muffler diagram KE100-B9 1990 USA
MUFFLER KE100-B9 1990 USA
×
prices are in EUR
ref
part #
description
quantity
110
110B0614
ref: 110
BOLT-HEX HEAD,6X14
€ 2.50
185
185C0816
ref: 185
BOLT-UPSET-WSP-SMALL
€ 3.00
11009
18067003
ref: 11009
GASKET-EXHAUST PIPE (NAS)
€ 5.50
14024
140251372
ref: 14024
COVER,MUFFLER,F.BLACK
€ 69.00
16073
18065007
ref: 16073
INSULATOR,HEAT
€ 3.00
16073A
18065009
ref: 16073A
INSULATOR,HEAT
€ 3.00
18001
180011603
ref: 18001
MUFFLER
€ 472.50
18069
18069048
ref: 18069
HOLDER-EXHAUST PIPE
€ 41.00
49099
18033070
ref: 49099
BAFFLE-PIPE MUFFLER
€ 106.50
92009
920091309
ref: 92009
SCREW,6X12
€ 2.50
92015
920151365
ref: 92015
NUT,6MM
€ 3.00
92022
92022077
ref: 92022
WASHER,6.1X12X1
€ 0.50
92022A
920221548
ref: 92022A
WASHER,TOOTHED,6MM
€ 2.00
92027
18070008
ref: 92027
COLLAR,EXHAUST PIPE H
€ 8.50
