SEAT

KE100-B9 1990 USA

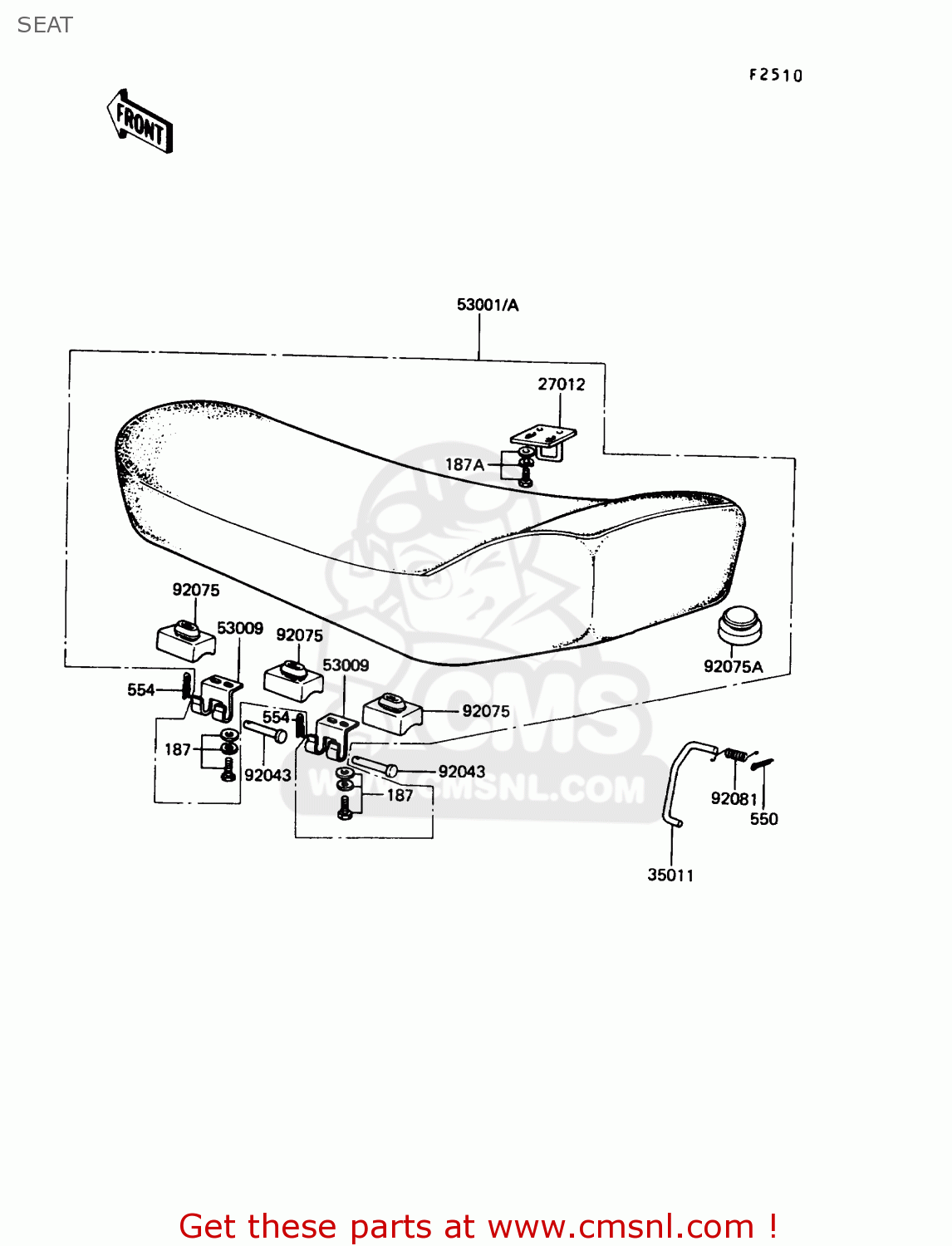

Seat diagram KE100-B9 1990 USA

prices are in EUR

ref

part #

description

quantity

187

187B0612
ref: 187

BOLT-UPSET-WSP

€ 0.50

187A

187B0614
ref: 187A

BOLT-UPSET-WSP

€ 0.50

550

550D2015
ref: 550

PIN-COTTER,2.0X15

€ 1.00

554

554A0600
ref: 554

PIN-SNAP,SIDE STAND

€ 0.50

27012

53008021
ref: 27012

HOOK,SEAT

€ 7.50

35011

53054003
ref: 35011

STAY,SEAT

€ 6.50

53001

530011452
ref: 53001

SEAT-ASSY,DUAL

€ 303.50

53009

53009017
ref: 53009

HINGE,SEAT

€ 3.50

92043

53011002
ref: 92043

PIN,6X48

€ 3.50

92075

92075023
ref: 92075

DAMPER RUBB-DUAL SEAT

€ 3.00

92075A

92075216
ref: 92075A

DAMPER,SEAT

€ 3.00

92081

53055001
ref: 92081

SPRING-SEAT HOOK

€ 8.50
