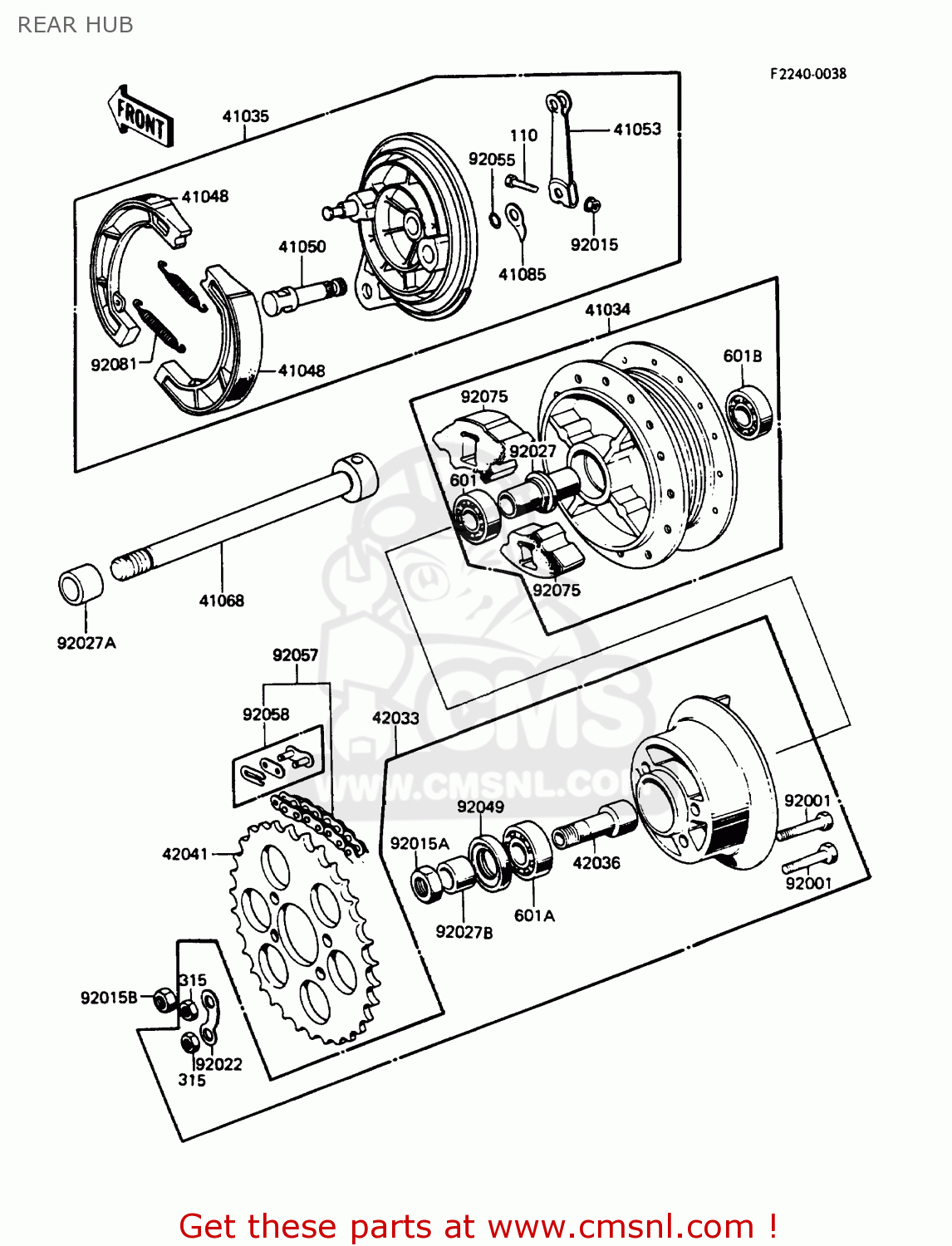

REAR HUB

ref

part #

description

quantity

110

110G0630
ref: 110

BOLT-HEX HEAD,6X30

€ 1.00

315

315B1000
ref: 315

NUT,10MM

€ 0.50

601

601B6201G
ref: 601

BALL BEARING

€ 7.00

601A

601B6203G
ref: 601A

BALL BEARING,#6203,601B6203

€ 10.50

601B

601B6301ZG
ref: 601B

BEARING BALL

€ 15.00

41034

410341048
ref: 41034

DRUM-ASSY,RR

€ 275.50

41035

410351081
ref: 41035

PANEL-ASSY-BRAKE,RR

€ 249.50

41048

41048017
ref: 41048

SHOE,BRAKE (MCA)

€ 13.00

41050

42026018
ref: 41050

CAM-BRAKE

€ 19.50

41053

42029020
ref: 41053

LEVER-BRAKE CAM

€ 20.50

41068

410681229
ref: 41068

AXLE

€ 26.00

41085

41085003
ref: 41085

INDICATOR,BRAKE SHOE

€ 9.00

42033

420331042
ref: 42033

COUPLING-ASSY,RR HUB

€ 151.00

42036

42036013
ref: 42036

SLEEVE,RR HUB COUPLIN

€ 23.50

42041

420411095
ref: 42041

SPROCKET-HUB,40T

€ 28.50

92001

92001082
ref: 92001

BOLT-REAR SPROCKET

€ 2.00

92015

41072007
ref: 92015

NUT,6MM

€ 2.50

92015A

42045004
ref: 92015A

NUT,16MM

€ 4.00

92015B

42045005
ref: 92015B

NUT,10MM

€ 5.00

92022

92088011
ref: 92022

WASHER,LOCK

€ 3.00

92027

42010005
ref: 92027

COLLAR,L=58

€ 8.50

92027A

42032006
ref: 92027A

COLLAR-REAR HUB R.H

€ 7.00

92027B

42037003
ref: 92027B

COLLAR,17X25X12.5

€ 7.50

92049

92052003
ref: 92049

OIL SEAL-COUPLING

€ 8.50

92055

92055004
ref: 92055

RING-O,BRAKE CAM

€ 3.00

92057

920571099
ref: 92057

CHAIN,DRIVE,EK428-G

€ 249.50

92058

920581014
ref: 92058

JOINT-CHAIN,EK428-G

€ 3.50

92075

42014016
ref: 92075

DAMPER,RR HUB SHOCK

€ 12.50

92081

920811766
ref: 92081

SPRING,BRAKE SHOE

€ 5.50
