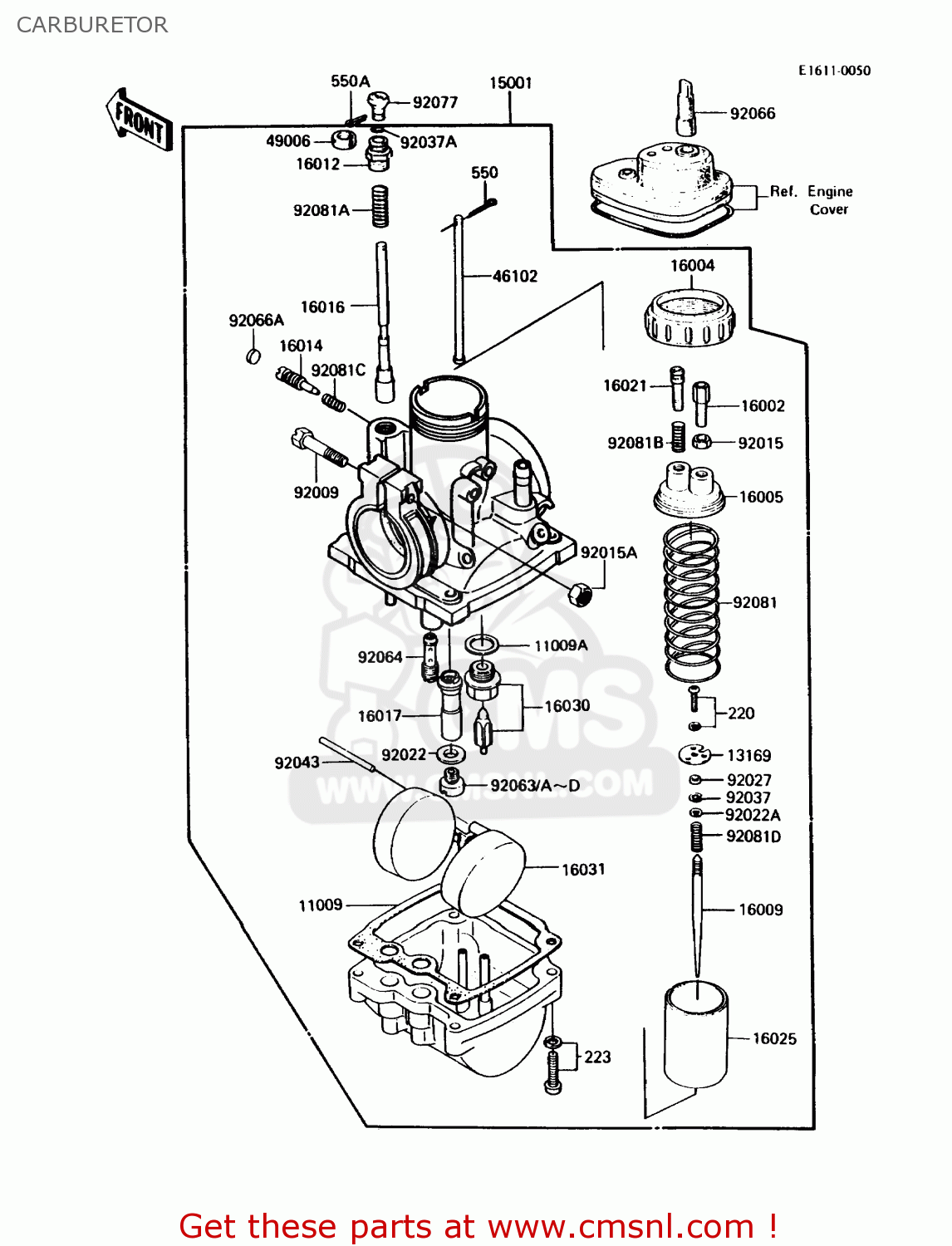

CARBURETOR

ref

part #

description

quantity

11009

16019021
ref: 11009

GASKET,FLOAT CHAMBER (NAS)

€ 13.00

11009A

16029002
ref: 11009A

WASHER-VALVE SEAT

€ 2.50

13169

131691676
ref: 13169

PLATE

€ 4.50

15001

150011220
ref: 15001

CARBURETOR ASSEMBLY

€ 155.50

16002

16002017
ref: 16002

ADJUSTER-CABLE

€ 8.00

16004

16004010
ref: 16004

CAP-CHAMBER,MIXING

€ 13.50

16005

16005005
ref: 16005

TOP-CHAMBER,MIXING

€ 12.50

16009

160091289
ref: 16009

JET,NEEDLE,#4EJ39

€ 20.50

16012

16012021
ref: 16012

CAP-STARTER PLUNGER

€ 11.50

16014

16014002
ref: 16014

SCREW-PILOT AIR

€ 11.00

16016

16016012
ref: 16016

PLUNGER,STARTER

€ 28.00

16017

160171299
ref: 16017

JET,NEEDLE,0-1

€ 24.50

16021

16021002
ref: 16021

SCREW-THROTTLE STOP

€ 12.00

16025

160251013
ref: 16025

THROTTLE VALVE,CA2.0

€ 69.50

16030

16030001
ref: 16030

VALVE-FLOAT,#2.0

€ 40.50

16031

16031015
ref: 16031

FLOAT

€ 40.50

46102

16024006
ref: 46102

ROD-THROTTLE VLV STOP

€ 5.50

49006

16036012
ref: 49006

BOOT,STARTER PLUNGER

€ 4.50

92009

16010004
ref: 92009

SCREW-CLAMP

€ 3.50

92015

16003004
ref: 92015

NUT-CABLE ADJUST LOCK

€ 4.50

92015A

920151026
ref: 92015A

NUT, 6M/M

€ 4.00

92022

16034001
ref: 92022

WASHER-MAIN JET

€ 2.50

92022A

920221068
ref: 92022A

THROTTLE VALVE WASHER

€ 4.00

92027

920271103
ref: 92027

RING,JET NEEDLE

€ 4.50

92037

16008010
ref: 92037

CLAMP,E-TYPE

€ 5.00

92037A

920371077
ref: 92037A

CLAMP

€ 3.00

92043

16032003
ref: 92043

FLOAT PIN

€ 4.00

92063

920631030
ref: 92063

JET-MAIN,#A80R

€ 11.00

92063A

920631032
ref: 92063A

JET-MAIN,#A77.5R

€ 10.00

92063B

920631111
ref: 92063B

JET,MAIN,#A75

€ 8.00

92063C

920631322
ref: 92063C

JET-MAIN,#A82,5R

€ 10.50

92063D

920631323
ref: 92063D

JET-MAIN,#A85R

€ 10.50

92064

920641018
ref: 92064

JET-PILOT,#A15

€ 13.00

92066

16147001
ref: 92066

PLUG,12X40

€ 3.00

92066A

920661051
ref: 92066A

PLUG,PILOT AIR SCREW,

€ 3.00

92077

92077022
ref: 92077

KNOB,CARBURETOR

€ 7.00

220

220B0308
ref: 220

SCREW-PAN-CROS

€ 0.50

223

223B0418
ref: 223

SCREW-PAN-WS-CROS

€ 1.00

550

550D1210
ref: 550

PIN-COTTER,1.2X10

€ 1.50

550A

550D1615
ref: 550A

PIN-COTTER,1.6X15

€ 1.50

92081

16006013
ref: 92081

SPRING-THROTTLE VALVE

€ 10.00

92081A

16013010
ref: 92081A

SPRING,STARTER PLUNGR

€ 3.50

92081B

16022005
ref: 92081B

SPRING-THR STOP SCREW

€ 5.50

92081C

16022007
ref: 92081C

SPRING-THR STOP SCREW

€ 5.50

92081D

920811072
ref: 92081D

NEEDLE JET SPRING

€ 2.50

all assemblies
