OIL PUMP
KE100-B17 1998 USA

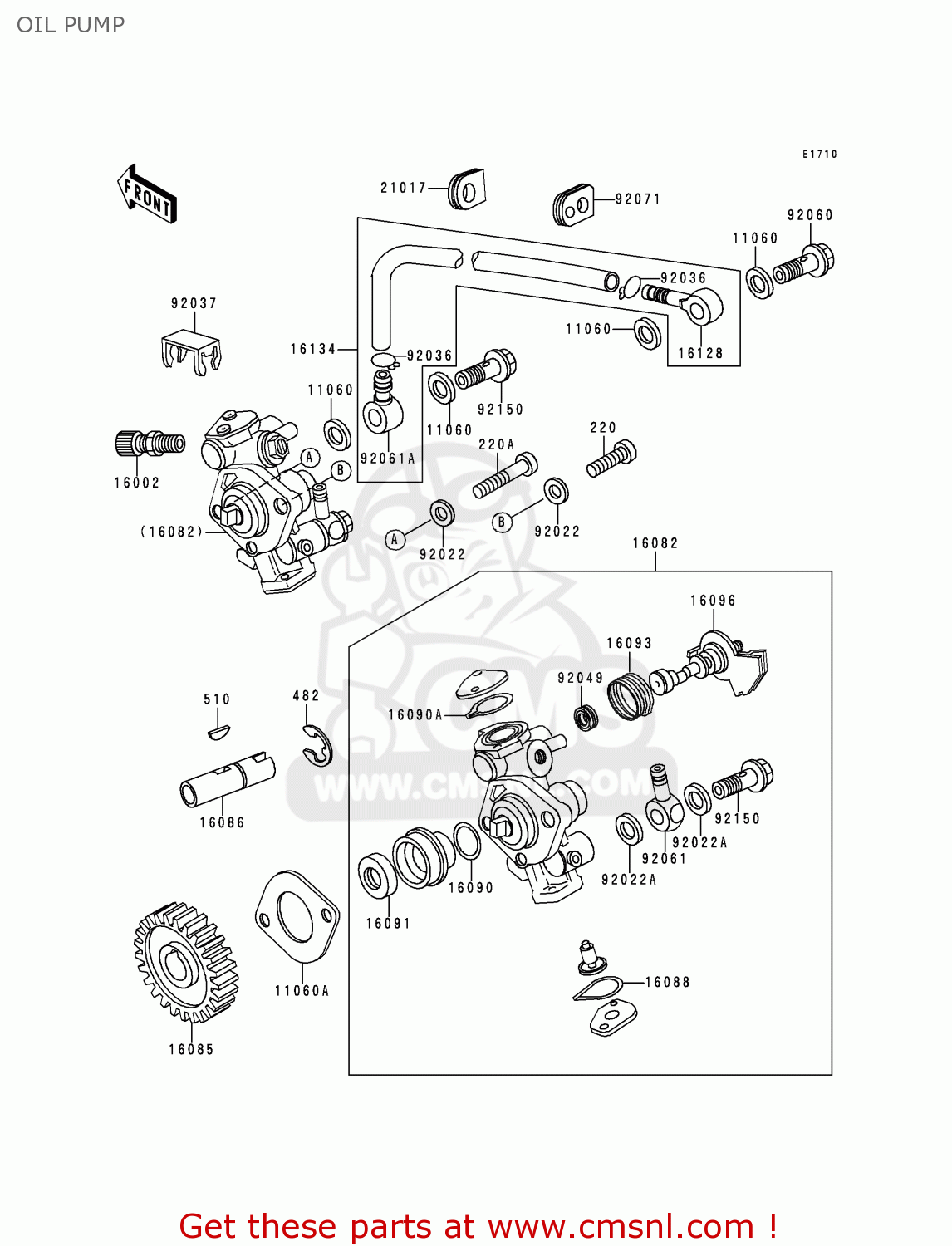

Oil pump diagram KE100-B17 1998 USA
OIL PUMP KE100-B17 1998 USA
×
prices are in EUR
ref
part #
description
quantity
220
220B0514
ref: 220
ACREW-PAN HEAD,5X14
€ 2.50
220A
220B0528
ref: 220A
SCREW-PAN-CROS
€ 0.50
482
482K9000
ref: 482
CIRCLIP-TYPE-E,9MM
€ 2.50
510
510A3100
ref: 510
KEY-WOODRUFF
€ 1.50
11060
110601155
ref: 11060
GASKET,6X12X1.13 (NAS)
€ 3.00
11060A
110601160
ref: 11060A
GASKET,OIL PUMP (NAS)
€ 3.00
16002
16002012
ref: 16002
ADJUSTER-CABLE
€ 7.50
16082
16082067
ref: 16082
PUMP-ASSY-OIL
€ 219.50
16085
16085004
ref: 16085
GEAR-OIL PUMP
€ 14.50
16086
16086001
ref: 16086
SHAFT,OIL PUMP
€ 13.00
16088
16088002
ref: 16088
RING-O,CAP,BANJO SIDE
€ 6.50
16090
16090002
ref: 16090
RING-O,OIL PUMP SHAFT
€ 4.50
16090A
16090004
ref: 16090A
RING-O,CAP,CAMSHAFT S
€ 6.00
16091
16091001
ref: 16091
OIL SEAL-OIL PUMP SHT
€ 4.50
16093
16093006
ref: 16093
SPRING,OIL PUMP LEVE
€ 6.50
16096
16096012
ref: 16096
LEVER-OIL PUMP
€ 11.50
16128
16128009
ref: 16128
VALVE-CHECK
€ 15.50
16134
16134021
ref: 16134
TUBE,OIL
€ 29.00
21017
21017002
ref: 21017
GROMMET
€ 3.00
92022
92022037
ref: 92022
WASHER,5.5X10.5X0.8
€ 2.50
92022A
92022077
ref: 92022A
WASHER,6.1X12X1
€ 0.50
92036
92036022
ref: 92036
RING-SNAP
€ 2.50
92037
920371107
ref: 92037
OIL PUMP CABLE CLAMP
€ 2.50
92049
920491294
ref: 92049
SEAL-OIL,CAMSHAFT,"X"
€ 7.50
92060
92060008
ref: 92060
BOLT-BANJO
€ 11.50
92061
92061009
ref: 92061
FITTING,BANJO
€ 8.50
92061A
92061018
ref: 92061A
CONNECTOR,BANGO
€ 7.00
92071
92071067
ref: 92071
GROMMET,OIL PIPE
€ 3.50
92150
921501982
ref: 92150
BOLT
€ 4.00
