ENGINE COVER(S)
KE100-B17 1998 USA

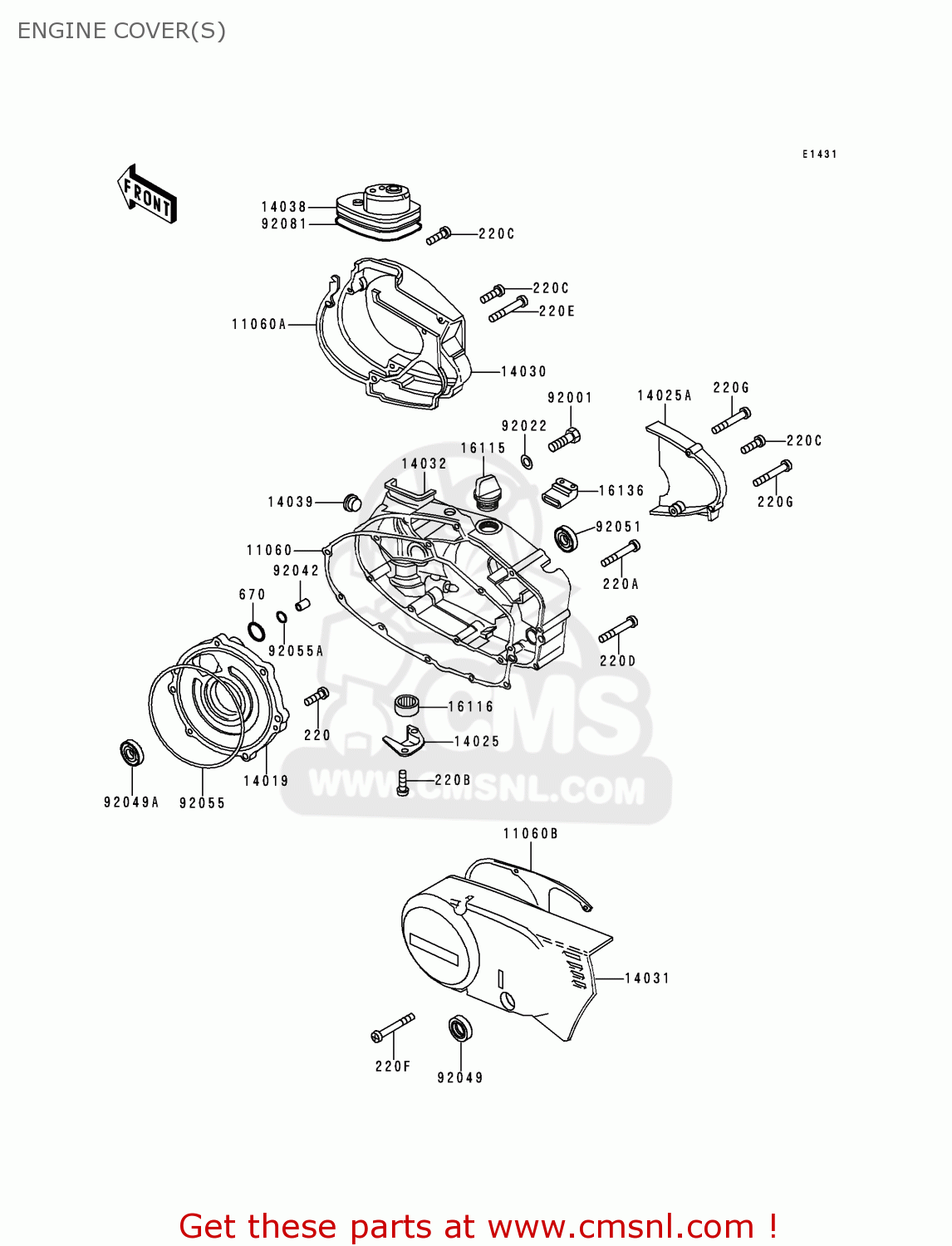

Engine cover(s) diagram KE100-B17 1998 USA
ENGINE COVER(S) KE100-B17 1998 USA
×
prices are in EUR
ref
part #
description
quantity
220
220B0620
ref: 220
SCREW-PAN HEAD,6X20
€ 2.50
220A
220B0645
ref: 220A
SCREW-PAN HEAD,6X45
€ 2.50
220B
220X0612
ref: 220B
SCREW-PAN-CROS
€ 2.50
220C
220X0620
ref: 220C
SCREW-PAN-CROS
€ 3.00
220D
220X0630
ref: 220D
SCREW-PAN-CROS
€ 2.00
220E
220X0635
ref: 220E
SCREW-PAN-CROS
€ 2.50
220F
220X0645
ref: 220F
SCREW-PAN-CROS
€ 2.50
220G
220X0675
ref: 220G
SCREW-PAN-CROS
€ 2.50
670
670B3026
ref: 670
O RING,26MM
€ 3.00
11060
110601198
ref: 11060
GASKET,CLUTCH COVER (NAS)
€ 17.00
11060A
110601201
ref: 11060A
GASKET,CARBURETOR COV (NAS)
€ 20.00
11060B
110601202
ref: 11060B
GASKET,GENERATOR COVE (NAS)
€ 15.00
14019
14019056
ref: 14019
COVER,ROTARY DISC VAL
€ 52.00
14025
140251137
ref: 14025
COVER,DRAIN PLUG
€ 7.00
14025A
140251185
ref: 14025A
COVER,OIL PUMP
€ 31.00
14030
140301011
ref: 14030
COVER,CARBURETOR
€ 59.50
14031
140311043
ref: 14031
COVER,L.H ENGINE
€ 100.00
14032
140321096
ref: 14032
COVER-CLUTCH
€ 153.50
14038
14038035
ref: 14038
BOOT,CARBURETOR
€ 9.50
14039
14039001
ref: 14039
CAP,RUBBER
€ 3.00
16115
16115018
ref: 16115
PLUG,OIL FILLER
€ 7.00
16116
16116006
ref: 16116
PLUG,25X12
€ 10.50
16136
16136007
ref: 16136
GROMMET,OVERFLOW PIPE
€ 5.50
92001
920011935
ref: 92001
BOLT,6X14
€ 2.50
92022
92022077
ref: 92022
WASHER,6.1X12X1
€ 0.50
92042
92042017
ref: 92042
PIN,DOWEL,8X16
€ 4.00
92049
92049004
ref: 92049
OIL SEAL SB12205
€ 6.00
92049A
920491482
ref: 92049A
SEAL-OIL
€ 12.00
92051
92051003
ref: 92051
OIL SEAL TB16267
€ 6.00
92055
92055010
ref: 92055
RING-O,100MM
€ 6.00
92055A
92055029
ref: 92055A
RING-O,7.8X3.5
€ 2.50
92081
92081047
ref: 92081
SPRING,COIL
€ 7.50
