CHASSIS ELECTRICAL EQUIPMENT
KE100-B17 1998 USA

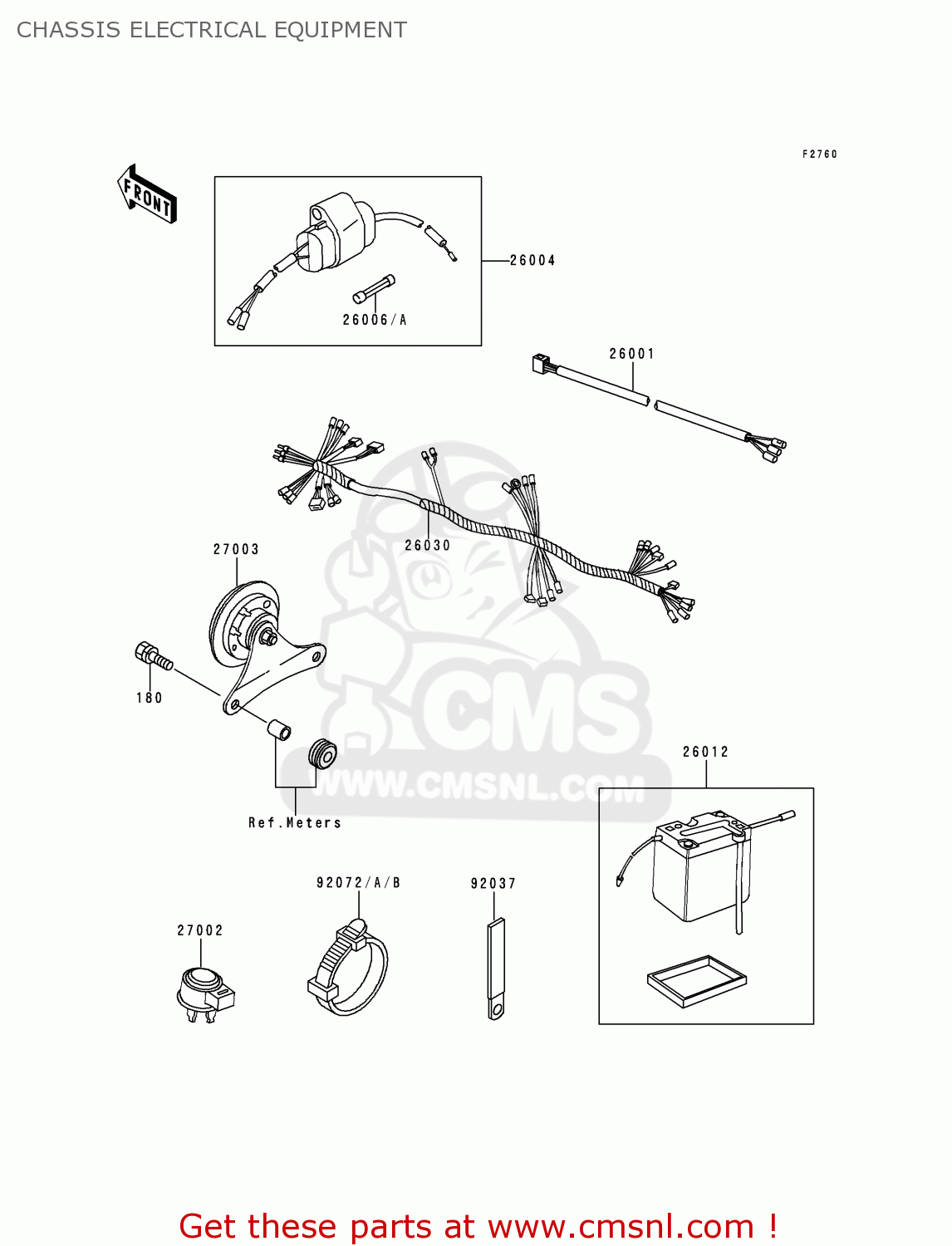

Chassis electrical equipment diagram KE100-B17 1998 USA
CHASSIS ELECTRICAL EQUIPMENT KE100-B17 1998 USA
×
prices are in EUR
ref
part #
description
quantity
180
180C0625
ref: 180
BOLT-UPSET-WS,6X25
€ 3.00
26001
260011007
ref: 26001
HARNESS,TAIL LAMP
€ 10.50
26004
260041105
ref: 26004
FUSE ASSEMBLY
€ 21.00
26006
260061002
ref: 26006
FUSE,10A,L=30M/M
€ 3.00
26006A
260061003
ref: 26006A
FUSE,15A,L=30M/M
€ 3.00
26012
260121291
ref: 26012
BATTERY
€ 49.50
26030
260301455
ref: 26030
HARNESS,MAIN
€ 152.00
27002
27002013
ref: 27002
RELAY-ASSY,TURN SIGNA
€ 27.00
27003
270031052
ref: 27003
HORN
€ 38.00
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92072
92072030
ref: 92072
BAND,SHORT
€ 3.00
92072A
92072031
ref: 92072A
BAND,MIDDLE
€ 3.00
92072B
92072032
ref: 92072B
BAND,LONG
€ 3.00
