HEADLIGHT(S)
KE100-B17 1998 USA

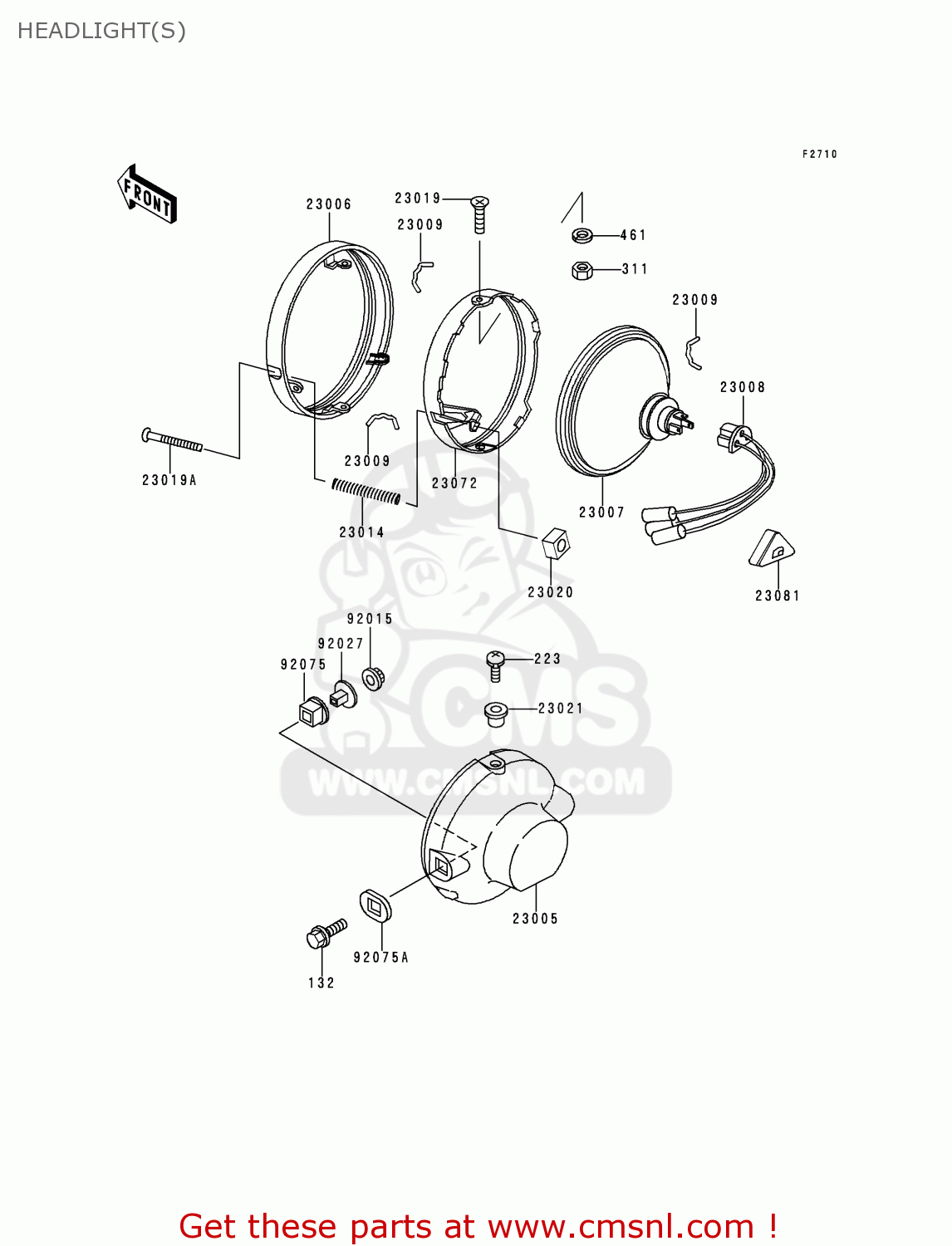

Headlight(s) diagram KE100-B17 1998 USA
HEADLIGHT(S) KE100-B17 1998 USA
×
prices are in EUR
ref
part #
description
quantity
132
132E0830
ref: 132
BOLT-FLANGED-SMALL
€ 3.50
223
223B0512
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
311
311B0400
ref: 311
NUT-HEX,4MM
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
€ 0.50
23005
2300510076Z
ref: 23005
BODY-COMP-HEAD LAMP,B
€ 71.50
23006
230061004
ref: 23006
RIM-LAMP
€ 56.00
23007
23007055
ref: 23007
LENS-COMP,4020 MARK
€ 60.00
23008
23008044
ref: 23008
SOCKET-ASSY,HEAD LAMP
€ 15.00
23009
23009015
ref: 23009
SPRING,HEAD LAMP LENS
€ 3.50
23014
23014012
ref: 23014
SPRING,FOCUS ADJUST
€ 3.50
23019
23019026
ref: 23019
SCREW,LENS FITTING
€ 3.00
23019A
23019027
ref: 23019A
SCREW,FOCUS ADJUSTING
€ 3.00
23020
23020012
ref: 23020
NUT,ADJUSTING
€ 2.50
23021
23021010
ref: 23021
WASHER
€ 2.50
23072
23072002
ref: 23072
RETAINER,SEALED BEAM
€ 29.50
23081
23081001
ref: 23081
COVER,HD LAMP SOCKET
€ 6.50
92015
920151014
ref: 92015
NUT,8MM
€ 0.50
92027
920271105
ref: 92027
COLLAR,L=15.6
€ 4.50
92075
920751077
ref: 92075
DAMPER,HEAD LAMP
€ 3.00
92075A
920751078
ref: 92075A
DAMPER,HEAD LAMP
€ 3.00
