TAILLIGHT/CHASSIS ELECTRICAL EQU

KDX420-B1 KDX420 1981 UNITED KINGDOM USA CALIFORNIA EXPORT

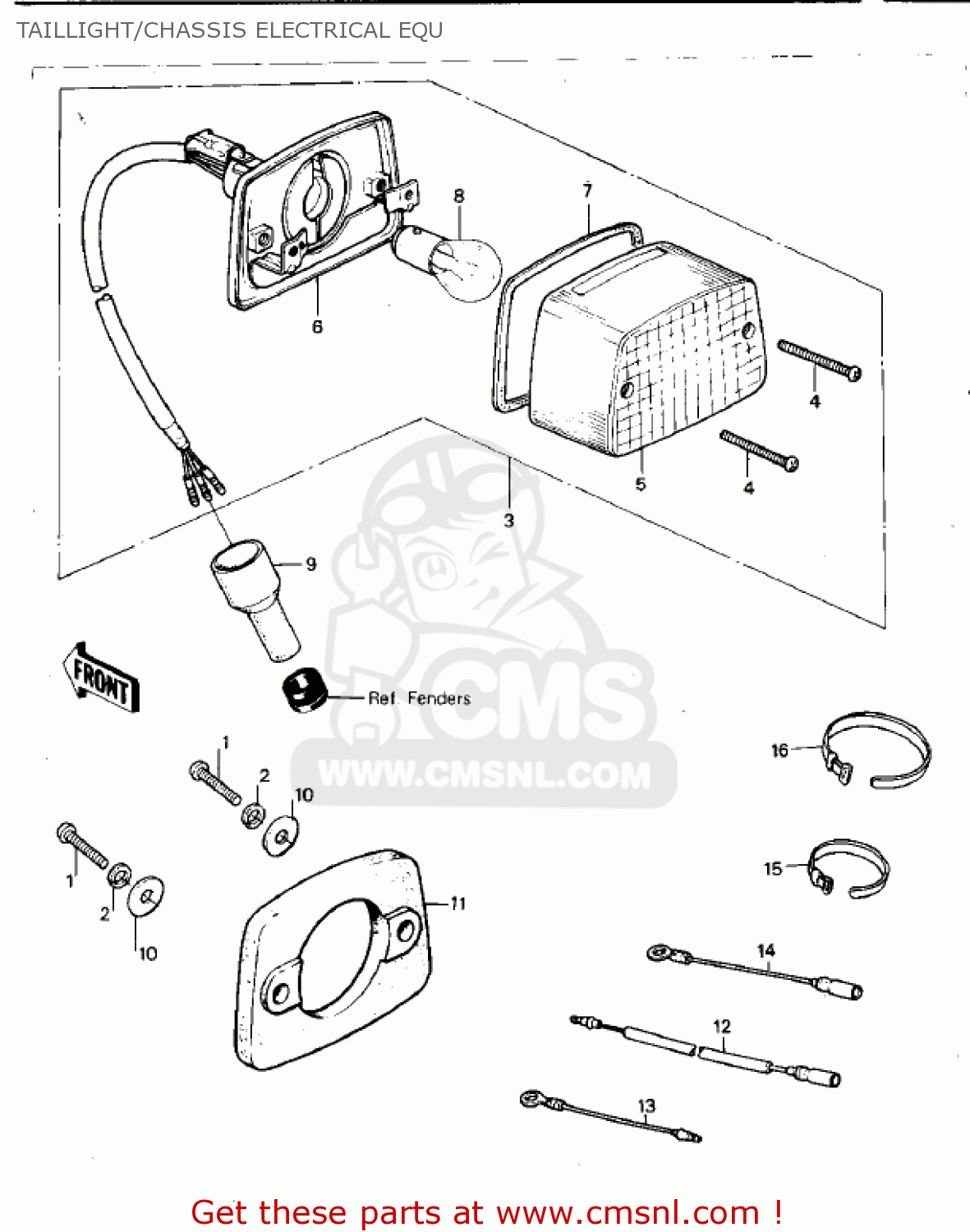

Taillight/chassis electrical equ diagram KDX420-B1 KDX420 1981 UNITED KINGDOM USA CALIFORNIA EXPORT

prices are in EUR

ref

part #

description

quantity

220B0520
ref: 1

SCREW-PAN-CROS

€ 0.50

461F0500
ref: 2

WASHER-SPRING,5MM

€ 0.50

23025075
ref: 3

LAMP-TAIL,040-5459 MA

€ 96.00

220B0330
ref: 4

SCREW-PAN-CROS

€ 1.00

23026040
ref: 5

LENS,TAIL LAMP

€ 28.50

23027044
ref: 6

BODY-COMP-TAIL LAMP

€ 52.00

23028020
ref: 7

GASKET,TAIL LAMP LENS (NAS)

€ 6.50

92069028
ref: 8

BULB 6V 17/5.3W

€ 4.50

490061048
ref: 9

BOOT,HARNESS COVER

€ 3.00

92022263
ref: 10

WASHER,PLAIN,6MM

€ 1.50

920754014
ref: 11

DAMPER

€ 6.00

260114001
ref: 12

WIRE,TAIL LAMP

€ 2.00

260114002
ref: 13

WIRE,GROUND HEAD LAMP

€ 1.00

260114003
ref: 14

WIRE,GROUND TAIL LMP

€ 1.50

920723505
ref: 15

BAND,L=203.2

€ 1.00

920723509
ref: 16

BAND,RUBBER

€ 2.00

TAILLIGHT/CHASSIS ELECTRICAL EQU

all assemblies
