FUEL TANK

KDX420-B1 KDX420 1981 UNITED KINGDOM USA CALIFORNIA EXPORT

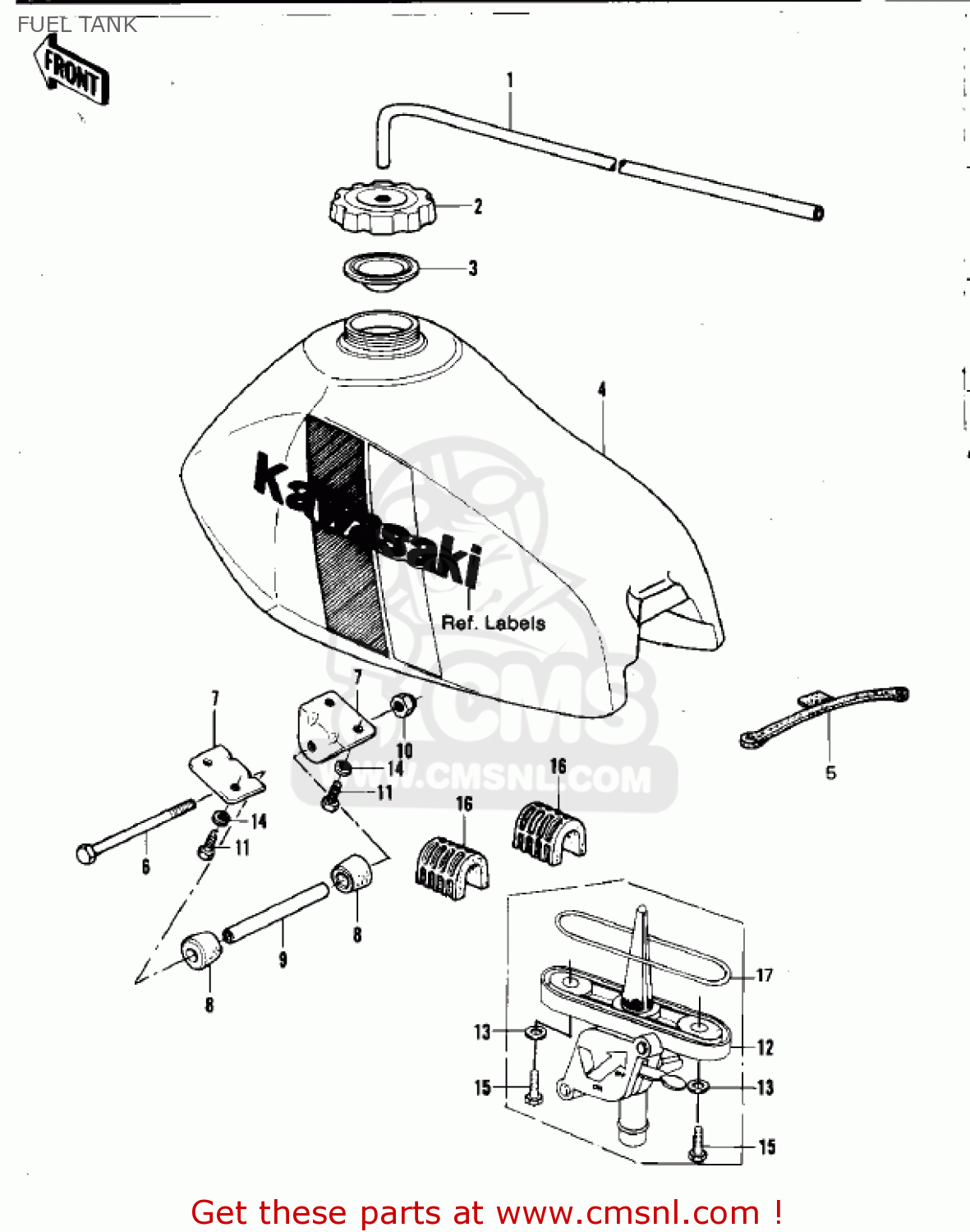

Fuel tank diagram KDX420-B1 KDX420 1981 UNITED KINGDOM USA CALIFORNIA EXPORT

prices are in EUR

ref

part #

description

quantity

920594001
ref: 1

TUBE,5X7X500

€ 4.00

510491060
ref: 2

CAP-FUEL TANK

€ 5.50

110094001
ref: 3

GASKET,FUEL TANK CAP (NAS)

€ 7.00

5100140046W
ref: 4

FUEL TANK,LIME GREEN

€ 227.00

92072042
ref: 5

BAND,FUEL TANK

€ 9.00

112G06105
ref: 6

BOLT-UPSET,6X105

€ 1.50

320521031
ref: 7

BRACKET,TANK

€ 11.50

920751220
ref: 8

DAMPER,FUEL TANK FITT

€ 4.00

920271228
ref: 9

COLLAR,FUEL TANK FITT

€ 3.00

92019008
ref: 10

NUT-LOCK,6MM

€ 3.00

112G0612
ref: 11

BOLT-UPSET

€ 2.50

510234002
ref: 12

COCK ASSY,FUEL

€ 37.00

92022183
ref: 13

WASHER,6.2X11X1.5

€ 2.50

461F0600
ref: 14

WASHER-SPRING,6MM

€ 0.50

92001114
ref: 15

BOLT-HEX HEAD,6X16

€ 2.50

920751221
ref: 16

DAMPER,FUEL TANK

€ 8.00

51039003
ref: 17

'O' RING

€ 4.00

FUEL TANK

all assemblies
