MUFFLER

KDX420-B1 KDX420 1981 UNITED KINGDOM USA CALIFORNIA EXPORT

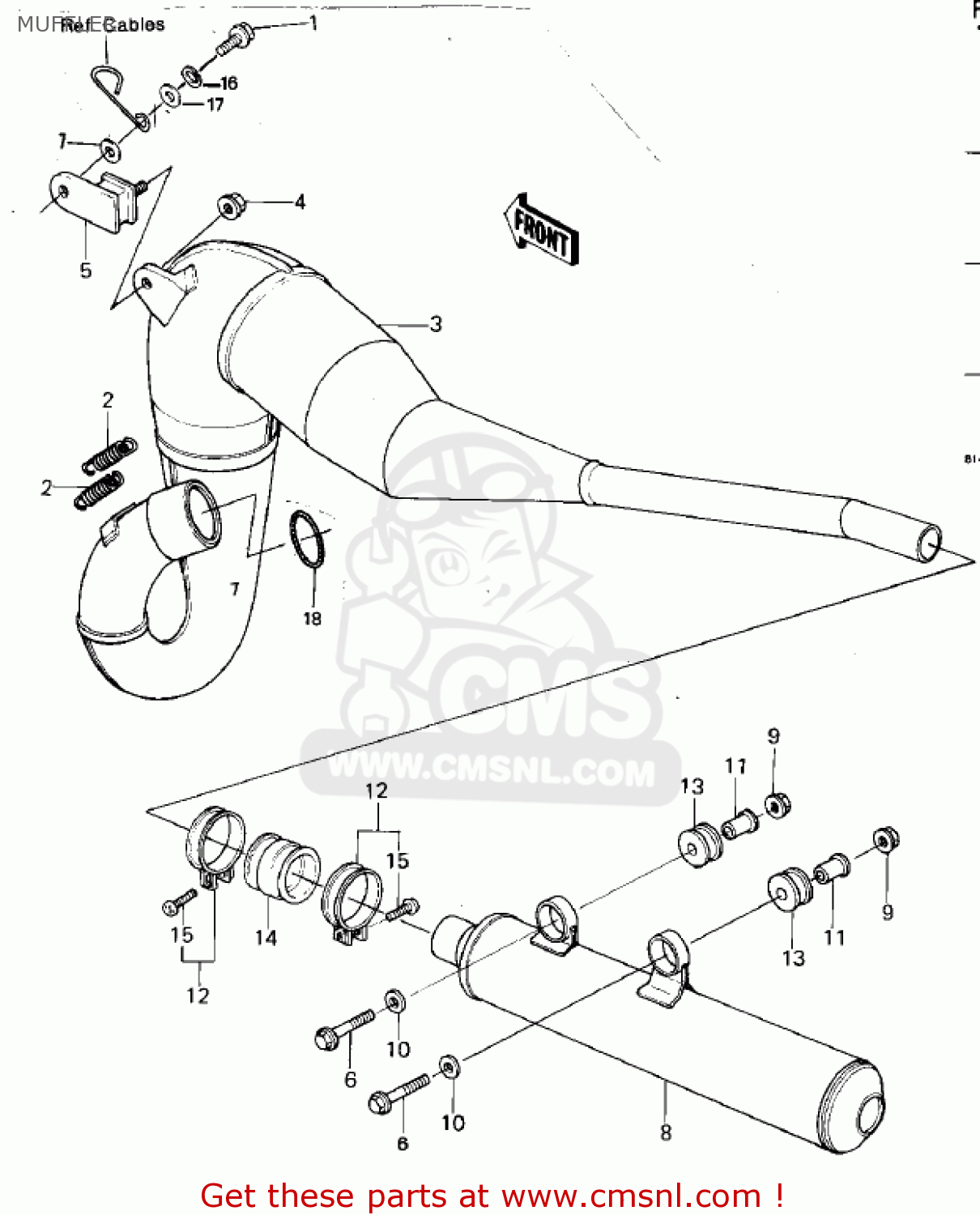

Muffler diagram KDX420-B1 KDX420 1981 UNITED KINGDOM USA CALIFORNIA EXPORT

prices are in EUR

ref

part #

description

quantity

115G0825
ref: 1

BOLT-HEX,HEAD,8X25

€ 3.00

18071003
ref: 2

SPRING,MUFFLER CONNEC

€ 7.50

180021136
ref: 3

BODY-COMP-MUFFLER,BLK

€ 188.00

920151124
ref: 4

NUT,LOCK,8MM

€ 3.50

920751060
ref: 5

DAMPER,MUFFLER FITTIN

€ 18.50

130G0830
ref: 6

BOLT,8X30

€ 1.00

920221561
ref: 7

WASHER,8.5X20X1.6

€ 2.50

180021163
ref: 8

MUFFLER,F.BLACK

€ 204.50

920151124
ref: 9

NUT,LOCK,8MM

€ 3.50

92022298
ref: 10

WASHER,8.5X35X2.3

€ 9.50

920271134
ref: 11

COLLAR,FUEL TANK FITT

€ 7.00

92037177
ref: 12

CLAMP

€ 7.50

920751196
ref: 13

DAMPER,MUFFLER

€ 5.50

920931014
ref: 14

SEAL,MUFFLER

€ 19.50

220B0525
ref: 15

SCREW-PAN-CROS,5X25

€ 2.50

461F0800
ref: 16

WASHER-SPRING,8MM

€ 0.50

410B0800
ref: 17

WASHER-PLAIN-SMALL,8M

€ 0.50

920551057
ref: 18

RING-O,55MM,MUFFLER

€ 9.50
