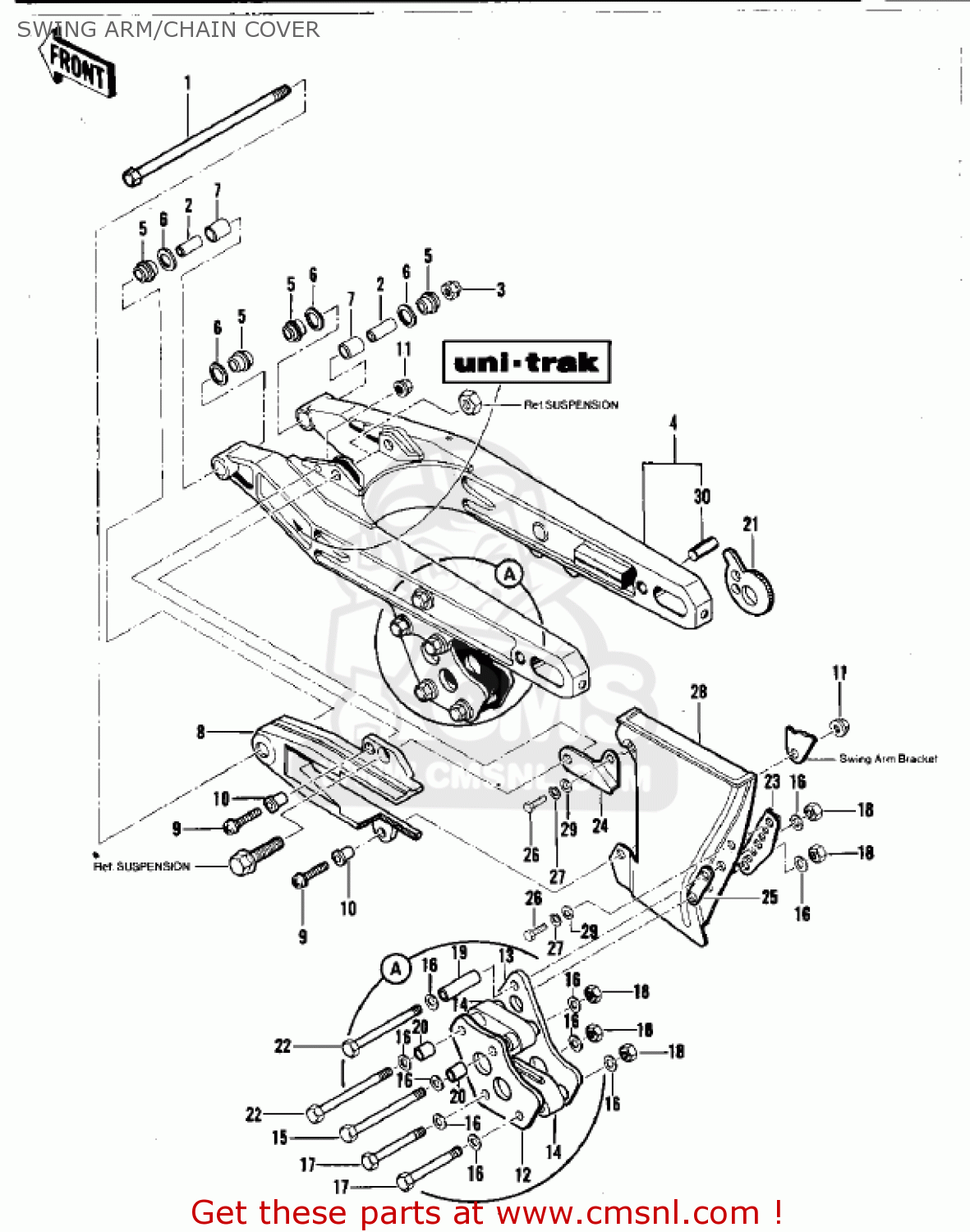

SWING ARM/CHAIN COVER

ref

part #

description

quantity

1

330321020
ref: 1

SHAFT-SWING ARM

€ 64.50

2

420361031
ref: 2

SLEEVE,SWING ARM

€ 33.50

3

92019011
ref: 3

NUT,LOCK,14MM

€ 6.00

4

330014002
ref: 4
FORGED

ARM-COMP,SWING

€ 994.50

5

110121099
ref: 5

CAP,SWING ARM

€ 14.50

6

920251116
ref: 6

SHIM,20X26.6X0.5

€ 2.50

7

920281072
ref: 7

BUSHING

€ 20.50

8

120534001
ref: 8

GUIDE,CHAIN

€ 39.50

9

920091289
ref: 9

SCREW,6X20

€ 2.50

10

920271260
ref: 10
L=3.5 MM

COLLAR

€ 4.00

11

920151078
ref: 11

NUT,6M/M

€ 1.50

12

550204009
ref: 12

GUARD,CHAIN

€ 15.50

13

550204010
ref: 13

GUARD,CHAIN

€ 15.50

14

120531015
ref: 14

GUIDE-CHAIN

€ 22.00

15

112G0660
ref: 15

BOLT-UPSET

€ 3.00

16

411B0600
ref: 16

WASHER-PLAIN,6MM

€ 0.50

17

112G0645
ref: 17

BOLT-UPSET

€ 0.50

18

92019008
ref: 18

NUT-LOCK,6MM

€ 3.00

19

920274016
ref: 19

COLLAR

€ 3.00

20

920274017
ref: 20

COLLAR

€ 1.50

21

330401060
ref: 21

ADJUSTER-CHAIN

€ 21.00

22

110G0670
ref: 22

BOLT,HEX HEAD,6X70

€ 3.00

23

110341841
ref: 23

BRACKET,CHAIN CASE,F.

€ 8.50

24

110344076
ref: 24

BRACKET

€ 5.50

25

110344077
ref: 25

BRACKET,CHAIN CASE

€ 1.50

26

112B0614
ref: 26

BOLT-UPSET 6X14

€ 2.50

27

461F0600
ref: 27

WASHER-SPRING,6MM

€ 0.50

28

360144005
ref: 28

COVER,CHAIN

€ 37.50

29

92022125
ref: 29

WASHER,6.5X20X1.6

€ 1.00

30

551A0825
ref: 30

PIN,DOWEL,8X05

€ 1.00
