GEAR CHANGE MECHANISM

KDX420-B1 KDX420 1981 UNITED KINGDOM USA CALIFORNIA EXPORT

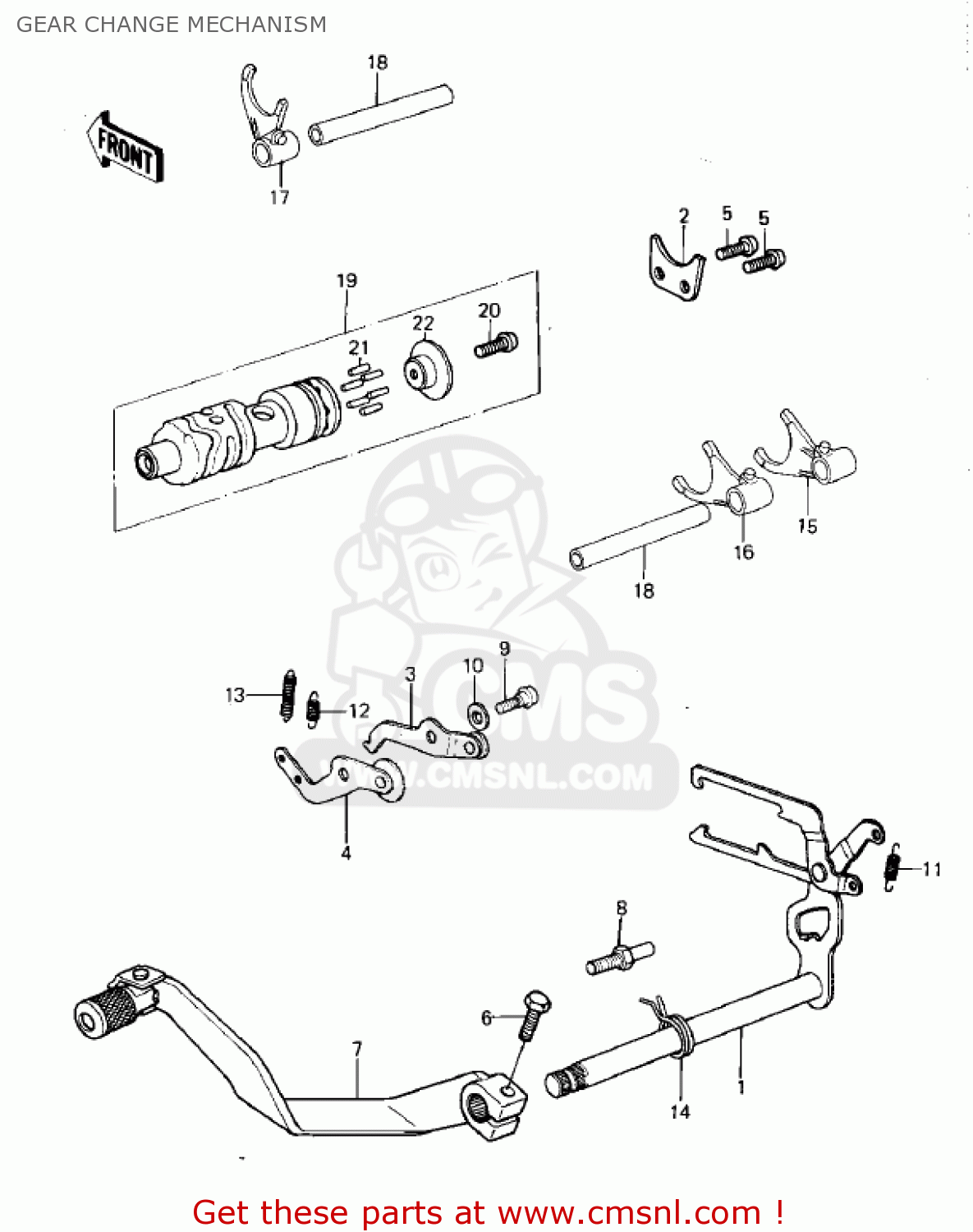

Gear change mechanism diagram KDX420-B1 KDX420 1981 UNITED KINGDOM USA CALIFORNIA EXPORT

prices are in EUR

ref

part #

description

quantity

131611012
ref: 1

LEVER-COMP-CHANGE SHA

€ 136.00

131691267
ref: 2

PLATE,CHANGE DRUM

€ 7.50

13236007
ref: 3

LEVER-COMP,GEAR CHNG

€ 13.00

132361013
ref: 4

LEVER,GEAR SET

€ 6.50

220B0614
ref: 5

SCREW-PAN HEAD,6X14

€ 2.00

112G0620
ref: 6

BOLT 6X20

€ 1.00

132421025
ref: 7

LEVER-ASSY-CHANGE

€ 30.00

920011401
ref: 8

BOLT,RETURN SPRING

€ 3.00

92011023
ref: 9

SCREW-PAN HEAD

€ 2.50

920221053
ref: 10

WASHER,PLAIN

€ 1.50

92081076
ref: 11

SPRING-CHANG LEVER

€ 3.50

92081077
ref: 12

SPRING-COIL

€ 3.00

92081119
ref: 13

SPRING,CHANGE LEVER

€ 3.00

92083028
ref: 14

SPRING,CHG PEDL RTRN

€ 9.50

131401023
ref: 15

FORK,SHIFT,LOW

€ 76.00

131401024
ref: 16

FORK,SHIFT,2ND&3RD

€ 76.00

131401025
ref: 17

FORK-SHIFT,4TH&TOP,34

€ 66.00

490471003
ref: 18

ROD,SHIFT 93.7MM

€ 18.00

132391023
ref: 19

DRUM ASSY,CHANGE

€ 258.50

220B0614
ref: 20

SCREW-PAN HEAD,6X14

€ 2.00

920431060
ref: 21

PIN,GEAR CHANGE DRUM

€ 2.00

13142014
ref: 22

HOLDER,CHANGE DRUM PI

€ 14.00
