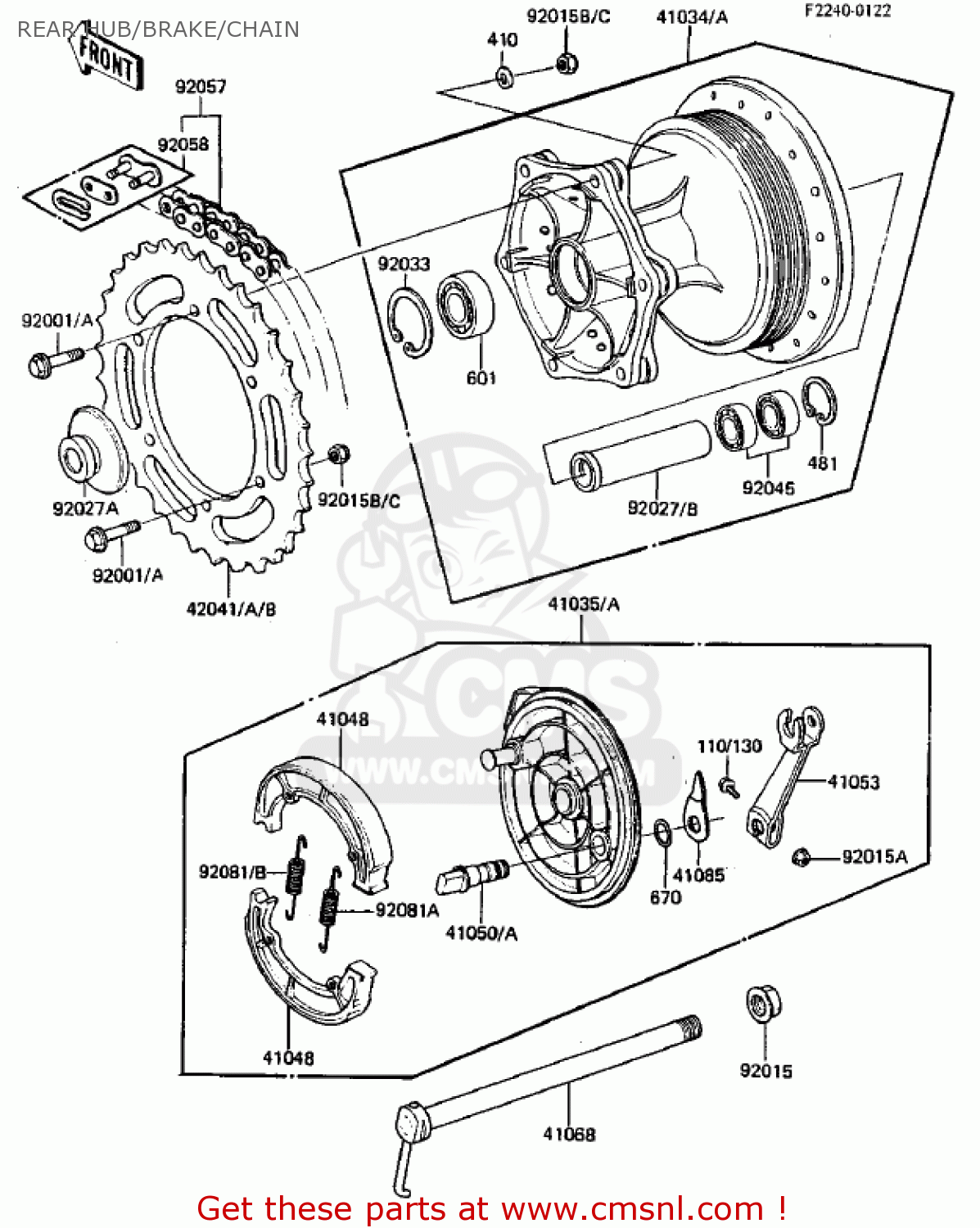

REAR HUB/BRAKE/CHAIN

ref

part #

description

quantity

41034

410345005
ref: 41034

DRUM-ASSY,REAR BRAKE

€ 366.00

41034A

410341102
ref: 41034A

DRUM-ASSY,RR

€ 317.50

41035

410351103
ref: 41035

PANEL-ASSY-BRAKE,RR

€ 314.50

41035A

410351120
ref: 41035A

PANEL-ASSY-BRAKE,RR

€ 414.50

41048

42019010
ref: 41048

SHOE,BRAKE (MCA)

€ 26.00

41050

410501020
ref: 41050

CAM-BRAKE

€ 40.00

41050A

410501034
ref: 41050A

CAM-BRAKE,RR

€ 34.00

41053

410531038
ref: 41053

LEVER-BRAKE CAM,RR

€ 37.00

41068

410681074
ref: 41068

AXLE,RR

€ 55.00

41085

41085001
ref: 41085

INDICATOR,FRONT BRAKE

€ 6.00

42041

420411079
ref: 42041
(OPTION)

SPROCKET-HUB,51T

€ 64.50

42041A

420411132
ref: 42041A

SPROCKET-HUB,50T

€ 88.00

42041B

420411183
ref: 42041B
(OPTION)

SPROCKET-HUB,49T

€ 66.50

92001

920011040
ref: 92001

BOLT,HEX HEAD,8X32

€ 5.50

92001A

920011577
ref: 92001A

BOLT,FLANGED,8X35

€ 2.50

92015

920151015
ref: 92015

NUT,16MM

€ 13.50

92015A

920151078
ref: 92015A

NUT,6M/M

€ 1.50

92015B

920151134
ref: 92015B

NUT,8MM

€ 3.50

92015C

920151143
ref: 92015C

NUT,8MM

€ 0.50

92027

920271384
ref: 92027

COLLAR

€ 38.00

92027A

920271543
ref: 92027A

COLLAR,L=23.5

€ 25.00

92027B

920271748
ref: 92027B

COLLAR,L=99

€ 49.00

92033

920331040
ref: 92033

RING,SNAP,40M/M

€ 4.00

92045

601B6003U
ref: 92045

BEARING-BALL,#6003UC3

€ 21.50

92057

920571079
ref: 92057

CHAIN,D1D520K 116L

€ 36.00

92058

920581051
ref: 92058

JOINT-CHAIN

€ 6.00

92081

920811766
ref: 92081

SPRING,BRAKE SHOE

€ 5.50

92081A

920811550
ref: 92081A

SPRING,BRAKE SHOE

€ 6.00

92081B

920811766
ref: 92081B

SPRING,BRAKE SHOE

€ 5.50

110

112G0630
ref: 110

BOLT-UPSET

€ 1.00

130

130G0630
ref: 130

BOLT, FLANGED, 6X30

€ 0.50

410

410B0800
ref: 410

WASHER-PLAIN-SMALL,8M

€ 0.50

481

481J3500
ref: 481

CIRCLIP-TYPE-C,35MM

€ 1.00

601

601B6203U
ref: 601

BEARING-BALL,#6203LUC

€ 35.50

670

670B2015
ref: 670

O RING,15MM

€ 1.00

all assemblies
