FRAME FITTINGS
KDX250-B4 KDX250 1984 USA CANADA

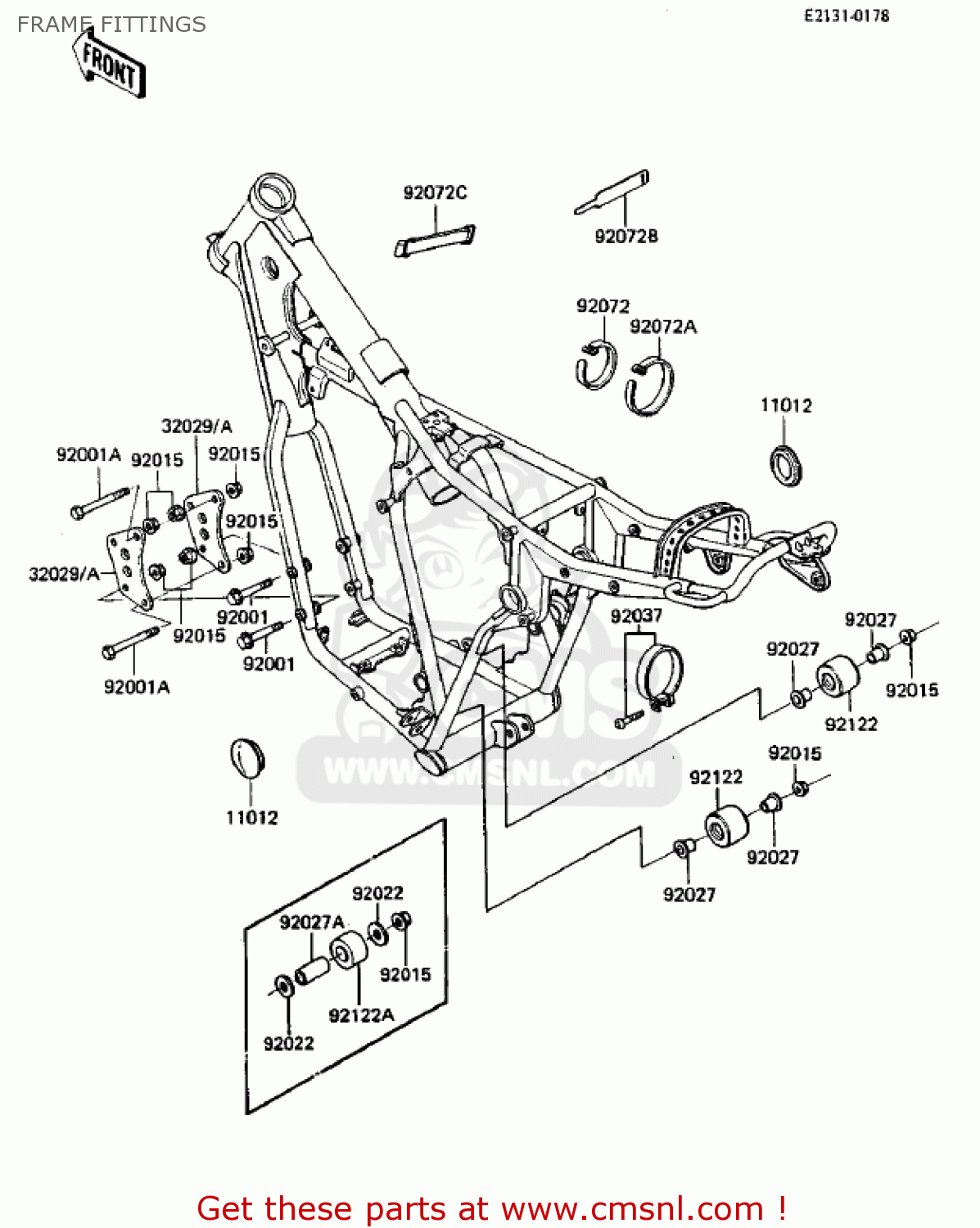

Frame fittings diagram KDX250-B4 KDX250 1984 USA CANADA
FRAME FITTINGS KDX250-B4 KDX250 1984 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11012
110121211
ref: 11012
CAP,UNI-TRAK
€ 3.50
32029
320291333
ref: 32029
BRACKET-ENGINE
€ 23.00
32029A
320291333
ref: 32029A
BRACKET-ENGINE
€ 23.00
92001
920011493
ref: 92001
BOLT,8X57
€ 2.50
92001A
920011494
ref: 92001A
BOLT,8X72
€ 5.50
92015
920151143
ref: 92015
NUT,8MM
€ 0.50
92022
92022092
ref: 92022
WASHER
€ 2.50
92027
920271383
ref: 92027
COLLAR,CHAIN GUIDE
€ 4.00
92027A
920271670
ref: 92027A
COLLAR,CHAIN ROLLER
€ 4.50
92037
920371172
ref: 92037
CLAMP
€ 5.50
92072
92072030
ref: 92072
BAND,SHORT
€ 3.00
92072A
92072056
ref: 92072A
BAND,RUBBER
€ 3.00
92072B
92072068
ref: 92072B
BAND,WIRING HARNESS
€ 2.50
92072C
92072076
ref: 92072C
BAND,L=40
€ 14.00
92122
921221021
ref: 92122
ROLLER,CHAIN GUIDE
€ 9.00
92122A
921221104
ref: 92122A
ROLLER,CHAIN GUIDE
€ 12.00
