OPTIONAL PARTS
KDX250-B4 KDX250 1984 USA CANADA

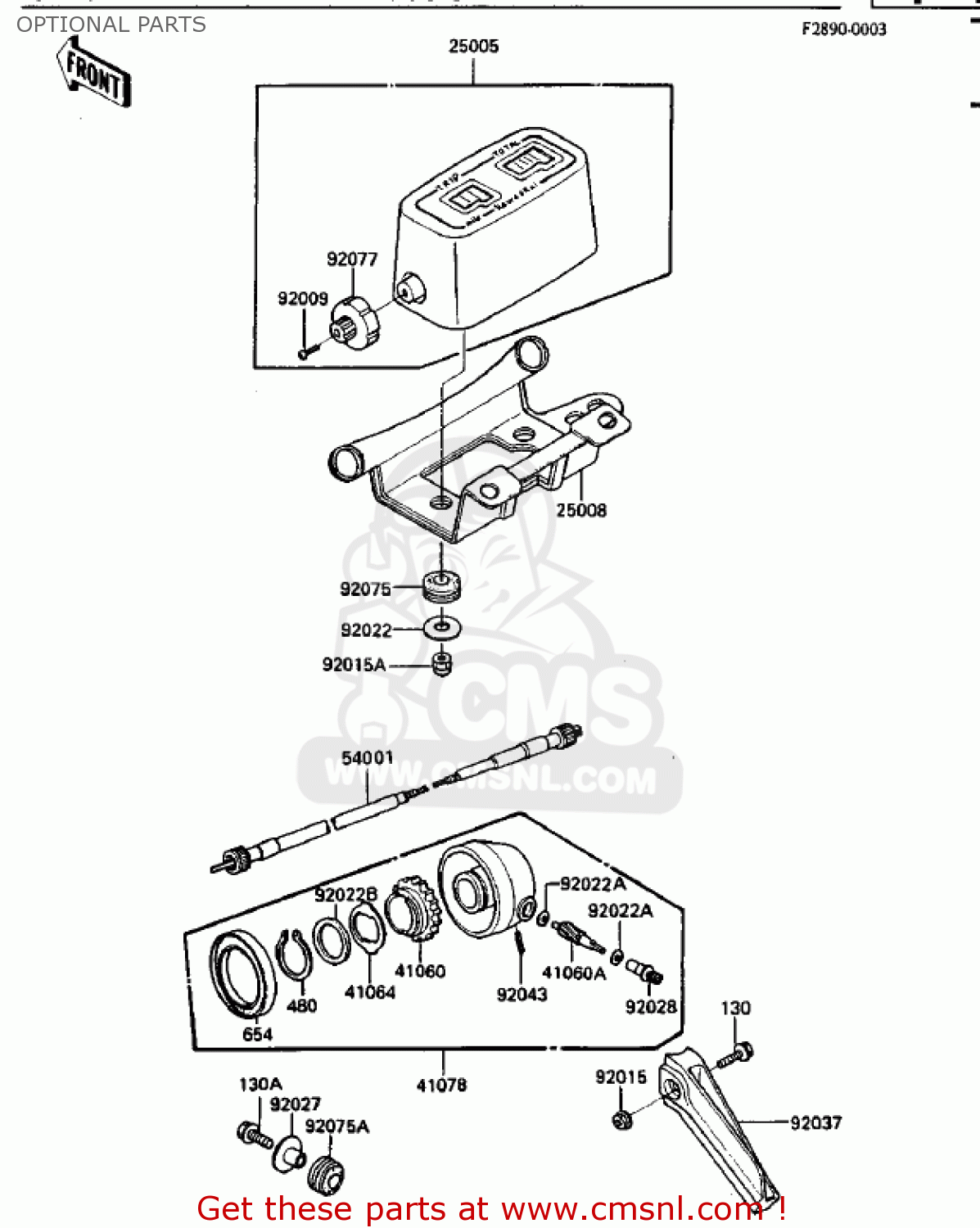

Optional parts diagram KDX250-B4 KDX250 1984 USA CANADA
OPTIONAL PARTS KDX250-B4 KDX250 1984 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
25005
250051061
ref: 25005
ODOMETER, MILE
€ 157.00
25008
250081106
ref: 25008
BRACKET-METER
€ 13.00
41060
41059027
ref: 41060
GEAR SPEEDOMETER
€ 21.00
41060A
41060015
ref: 41060A
PINION,SPEEDOMETER
€ 17.00
41064
41064015
ref: 41064
RECEIVER-SPEEDOMETER
€ 5.50
41078
41078011
ref: 41078
GEAR BOX ASSY
€ 103.50
54001
540014001
ref: 54001
CABLE-SPEEDOMETER
€ 23.00
92009
920091159
ref: 92009
SCREW,2X6
€ 2.00
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92015A
322C0500
ref: 92015A
NUT-CAP
€ 2.00
92022
25009004
ref: 92022
WASHER,5.2X16X1.2T
€ 2.50
92022A
41063001
ref: 92022A
WASHER-THRST SPD PINI
€ 3.00
92022B
41065005
ref: 92022B
WASHER,24.5X32X0.8
€ 2.00
92027
92027251
ref: 92027
COLLAR,L=13.1
€ 1.00
92028
41062005
ref: 92028
BUSHING,SPEEDOMETER C
€ 12.00
92037
920371481
ref: 92037
CLAMP,CABLE
€ 31.50
92043
41082001
ref: 92043
PIN-SPRING
€ 2.50
92075
920751209
ref: 92075
DAMPER,METER
€ 3.50
92075A
92075138
ref: 92075A
DAMPER,HEAD LAMP BRAC
€ 1.50
92077
920771013
ref: 92077
KNOB,METER TRIP
€ 6.50
130
130B0625
ref: 130
BOLT,FLANGED,6X25
€ 0.50
130A
130G0618
ref: 130A
BOLT-FLANGED,6X18
€ 1.00
480
480J2400
ref: 480
CIRCLIP-TYPE-C,24MM
€ 3.50
654
654A506509
ref: 654
OIL SEAL,#50659
€ 10.50
