CARBURETOR
KDX250-B4 KDX250 1984 USA CANADA

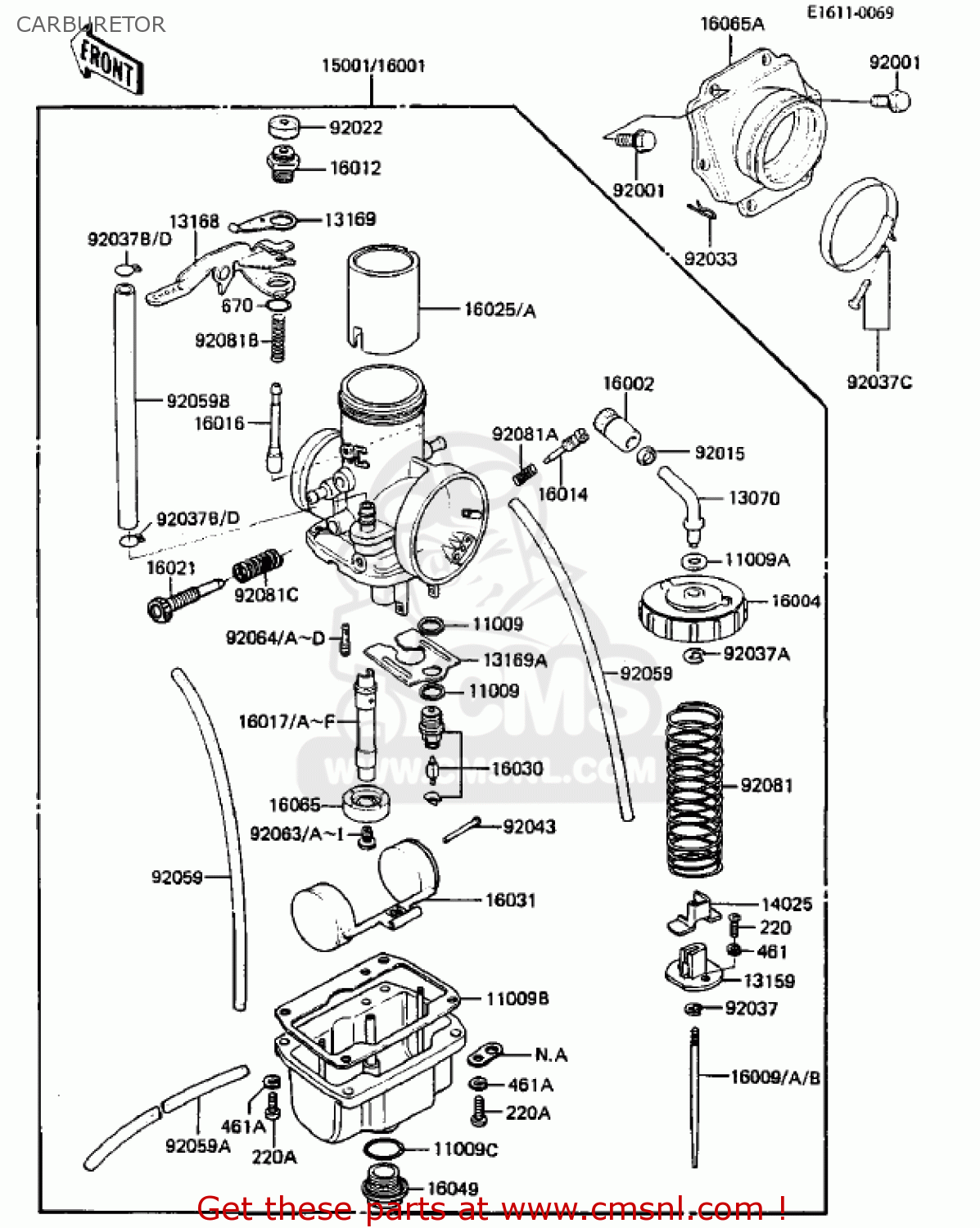

Carburetor diagram KDX250-B4 KDX250 1984 USA CANADA
CARBURETOR KDX250-B4 KDX250 1984 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091076
ref: 11009
GASKET,FLOAT VALVE (NAS)
€ 2.00
11009A
110091191
ref: 11009A
GASKET,CABLE GUIDE (NAS)
€ 4.50
11009B
16019028
ref: 11009B
GASKET,FLOAT CHAMBER (NAS)
€ 11.50
11009C
16038009
ref: 11009C
GASKET,MAIN JET COVER
€ 5.50
13070
130701014
ref: 13070
GUIDE,CABLE
€ 24.50
13159
131591010
ref: 13159
CONNECTOR,THROTTLE
€ 9.00
13168
131681048
ref: 13168
LEVER STARTER PLUNGER
€ 15.00
13169
131691052
ref: 13169
SPRING PLATE STARTER
€ 8.50
13169A
131691520
ref: 13169A
PLATE,FLOAT CHAMBER
€ 7.50
14025
140251478
ref: 14025
COVER,THROTTLE
€ 5.50
15001
160011962
ref: 15001
CARBURETOR
€ 275.50
16001
160011879
ref: 16001
CARBURETOR
€ 349.00
16002
160021006
ref: 16002
ADJUSTER-CABLE
€ 6.50
16004
160041010
ref: 16004
TOP,MIXING CHAMBER
€ 26.50
16009
160091117
ref: 16009
NEEDLE-JET,6FJ43
€ 21.00
16009A
160091123
ref: 16009A
(OPTION)
NEEDLE-JET,6FJ6
€ 15.00
16009B
160091219
ref: 16009B
JET,NEEDLE,#6FJ42
€ 23.00
16012
16012019
ref: 16012
CAP-STARTER PLUNGER
€ 12.50
16014
16014006
ref: 16014
SCREW-PILOT AIR
€ 9.00
16016
160161008
ref: 16016
PLUNGER,ASSY STARTER
€ 17.00
16017
160171039
ref: 16017
(OPTION)
NEEDLE JET,R-O
€ 19.50
16017
160171112
ref: 16017
NEEDLE JET,R-6
€ 19.00
16017B
160171214
ref: 16017B
JET-NEEDLE,R-6
€ 21.00
16017C
160171240
ref: 16017C
(OPTION)
JET,NEEDLE,S-0
€ 24.50
16017D
160171233
ref: 16017D
(OPTION)
JET-NEEDLE,R-8
€ 22.00
16017E
160171236
ref: 16017E
(OPTION)
JET-NEEDLE,R-4
€ 26.50
16017F
160171234
ref: 16017F
(OPTION)
JET-NEEDLE,R-2
€ 27.00
16021
160211034
ref: 16021
SCREW-THROTTLE STOP
€ 12.50
16025
160251072
ref: 16025
VALVE,THROTTLE CA3,0
€ 82.50
16025A
160251075
ref: 16025A
(OPTION)
VALVE-THROTTLE,CA2.5
€ 62.50
16030
160301015
ref: 16030
VALVE-FLOAT,#3.0
€ 31.50
16031
16031030
ref: 16031
FLOAT
€ 36.00
16049
160491005
ref: 16049
COVER-MAIN JET
€ 12.50
16065
160651045
ref: 16065
HOLDER-CARBURETOR,NEE
€ 40.50
16065A
160651048
ref: 16065A
HOLDER-CARBURETOR
€ 43.00
92001
132G0620
ref: 92001
BOLT-FLANGED-SMALL
€ 1.50
92015
16003004
ref: 92015
NUT-CABLE ADJUST LOCK
€ 4.50
92022
16039015
ref: 92022
CAP,STARTER PLUNGER
€ 4.50
92033
92036018
ref: 92033
CIRCLIP
€ 2.50
92037
16008010
ref: 92037
CLAMP,E-TYPE
€ 5.00
92037A
16008011
ref: 92037A
CLAMP,CABLE GUIDE
€ 4.50
92037B
92037056
ref: 92037B
CLAMP,FUEL TUBE
€ 3.00
92037C
920371313
ref: 92037C
CLAMP,CARBURETOR HOLD
€ 7.00
92037D
92037147
ref: 92037D
CLAMP,CHAIN OILER
€ 4.50
92043
16032008
ref: 92043
PIN,FLOAT
€ 4.00
92059
920591142
ref: 92059
TUBE,3.5X6.5X410
€ 16.50
92059A
920591235
ref: 92059A
TUBE,3.5X6.5X300
€ 3.50
92059B
920591443
ref: 92059B
TUBE,5.8X10.8X180
€ 19.50
92063
92063045
ref: 92063
(OPTION)
MAIN JET #300
€ 6.00
92063A
92063046
ref: 92063A
(OPTION)
JET-MAIN,#310
€ 8.00
92063B
92063047
ref: 92063B
JET-MAIN,#320
€ 8.50
92063C
92063048
ref: 92063C
(OPTION)
JET-MAIN,#330
€ 12.50
92063D
92063049
ref: 92063D
(OPTION)
JET-MAIN,#340
€ 10.50
92063E
920631025
ref: 92063E
(OPTION)
JET-MAIN,#155R
€ 8.50
92063F
92063118
ref: 92063F
(OPTION)
JET-MAIN,#145R
€ 8.00
92063G
92063119
ref: 92063G
(OPTION)
MAIN JET,#147.5R
€ 7.50
92063H
92063120
ref: 92063H
JET-MAIN,#150R
€ 8.50
92063I
92063121
ref: 92063I
(OPTION)
MAIN JET,#152.5R
€ 7.00
92064
92064023
ref: 92064
(OPTION)
JET-PILOT,#35
€ 13.00
92064A
92064024
ref: 92064A
(OPTION)
JET-PILOT,#40
€ 14.00
92064B
92064044
ref: 92064B
JET-PILOT,#45
€ 13.00
92064C
920641005
ref: 92064C
(OPTION)
JET-PILOT,#50
€ 10.50
92064D
920641006
ref: 92064D
(OPTION)
JET-PILOT,#55
€ 9.00
92081
16006028
ref: 92081
SPRING,THROTTLE VALVE
€ 8.50
92081A
16022007
ref: 92081A
SPRING-THR STOP SCREW
€ 5.50
92081B
920811181
ref: 92081B
SPRING,STARTER PLUNG
€ 3.00
92081C
920811200
ref: 92081C
SPRING,THROTT STP SCR
€ 5.50
220
220B0308
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220B0516
ref: 220A
SCREW-PAN-CROS
€ 2.50
461
461F0300
ref: 461
WASHER-SPRING,3MM
€ 0.50
461A
461F0500
ref: 461A
WASHER-SPRING,5MM
€ 0.50
670
670B1509
ref: 670
O RING,9MM
€ 1.00
