CRANKSHAFT/PISTON

KDX250-B4 KDX250 1984 USA CANADA

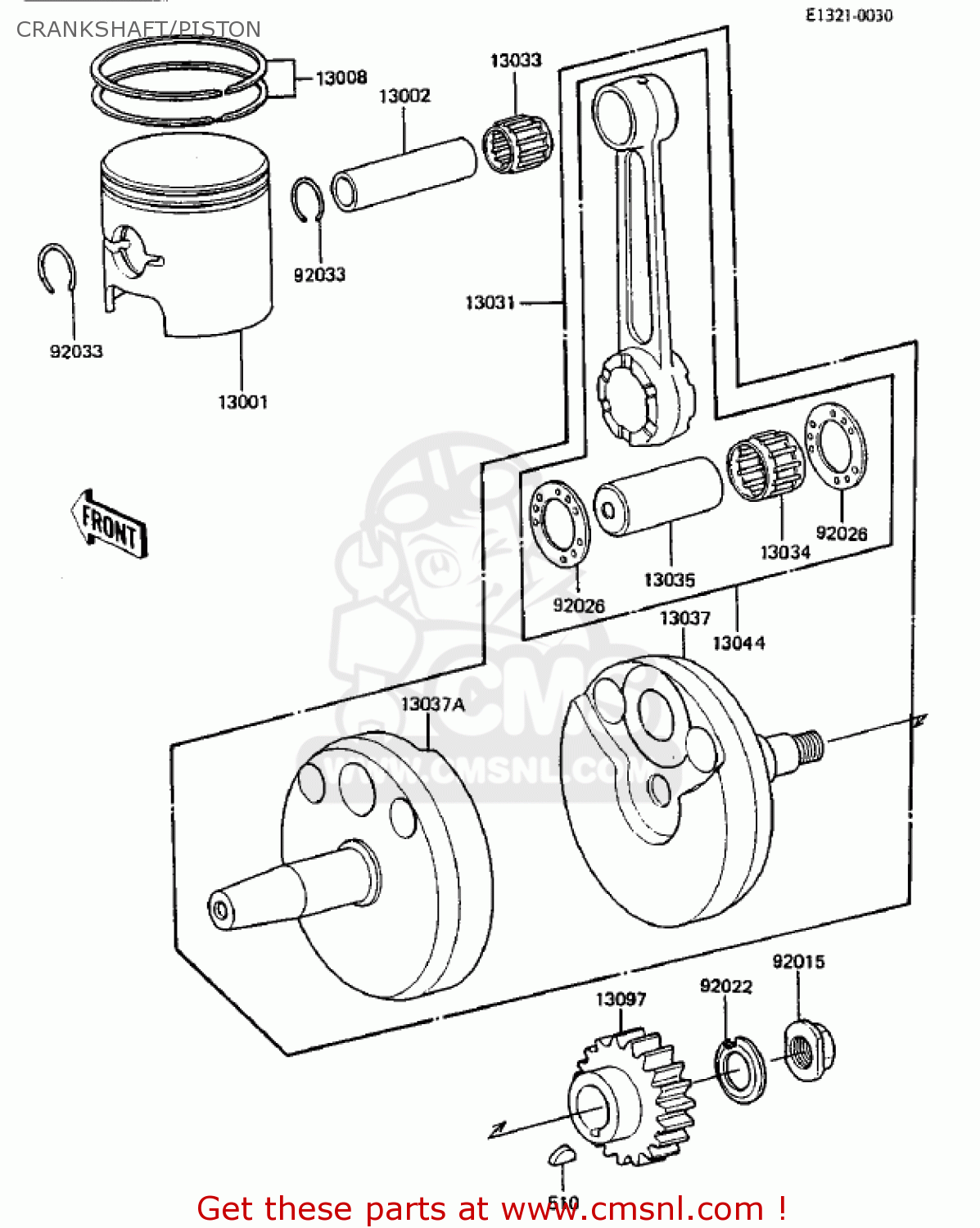

Crankshaft/piston diagram KDX250-B4 KDX250 1984 USA CANADA

prices are in EUR

ref

part #

description

quantity

13001

130011039
ref: 13001

PISTON-ENGINE

€ 69.50

13002

13002017
ref: 13002

PIN-PISTON

€ 17.50

13008

130085026
ref: 13008

RING-SET-PISTON

€ 50.50

13031

130311049
ref: 13031

CRANKSHAFT ASSY

€ 338.00

13033

130331010
ref: 13033

BEARING-NEEDLE,KBK18X

€ 22.50

13034

13034049
ref: 13034

BEARING-NEEDLE,PK2432

€ 36.00

13035

13035034
ref: 13035

PIN-CRANK

€ 54.50

13037

130371069
ref: 13037

CRANKSHAFT,R.H

€ 185.00

13037A

130371097
ref: 13037A

CRANKSHAFT,LH

€ 257.50

13044

130445007
ref: 13044

SET-CONNECTING ROD

€ 133.00

13097

130971028
ref: 13097

GEAR,PRIMARY

€ 75.00

92015

92015069
ref: 92015

NUT,14MM

€ 20.00

92022

92024061
ref: 92022

WASHER,LOCK

€ 2.50

92026

920261241
ref: 92026

SPACER

€ 4.00

92033

92036015
ref: 92033

RING-SNAP,PISTON PIN

€ 3.00

510

510A5100
ref: 510

KEY-WOODRUFF

€ 1.50

CRANKSHAFT/PISTON

all assemblies
