SWING ARM
KDX200-B2 1985 AUSTRALIA / KPH

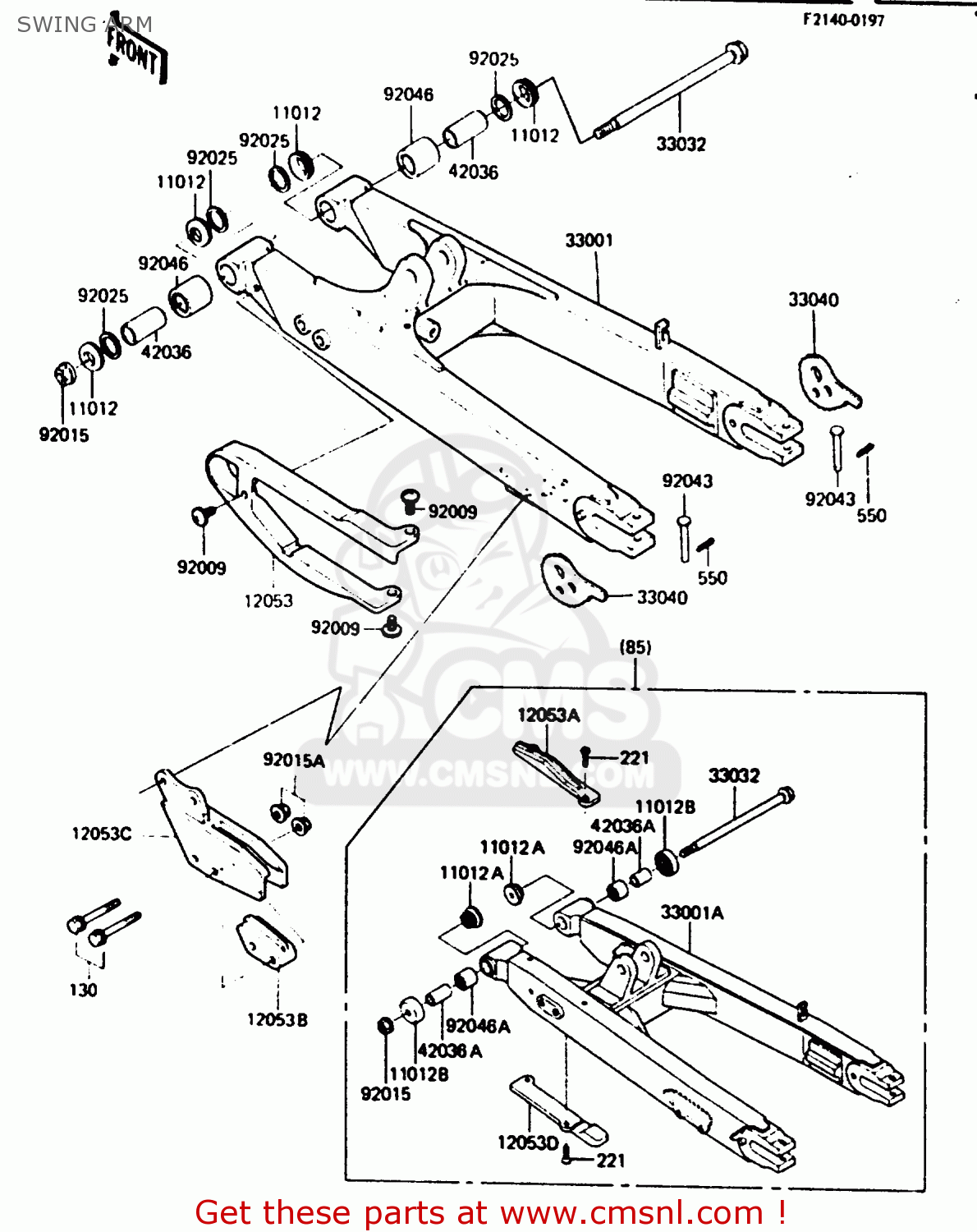

Swing arm diagram KDX200-B2 1985 AUSTRALIA / KPH
SWING ARM KDX200-B2 1985 AUSTRALIA / KPH
×
prices are in EUR
ref
part #
description
quantity
11012A
110121355
ref: 11012A
CAP,SWING ARM
€ 12.50
11012B
110121417
ref: 11012B
CAP,SWING ARM
€ 11.50
12053A
120531101
ref: 12053A
GUIDE-CHAIN,FR,UPP
€ 27.00
12053B
120531105
ref: 12053B
GUIDE-CHAIN,RR,INSIDE
€ 27.50
12053C
120531124
ref: 12053C
GUIDE-CHAIN,RR
€ 67.00
12053D
120531144
ref: 12053D
GUIDE-CHAIN,FR,LWR
€ 21.00
33001A
330011232
ref: 33001A
ARM-COMP-SWING
€ 611.50
33032
330321042
ref: 33032
SHAFT-SWING ARM
€ 49.00
33040
330404003
ref: 33040
ADJUSTER,CHAIN
€ 21.00
42036A
420361145
ref: 42036A
SLEEVE,SWING ARM,L=40
€ 12.00
92015
920151032
ref: 92015
NUT,14M/M
€ 6.50
92015A
920151193
ref: 92015A
NUT,FLANGED,6MM
€ 0.50
92043
920431110
ref: 92043
PIN,6X44.5
€ 3.00
92046A
920461128
ref: 92046A
BEARING-NEEDLE,TA2030
€ 25.00
130
130G0640
ref: 130
BOLT,FLANGED,6X40
€ 0.50
221
221B0610
ref: 221
SCREW-CNTSNK HD,6X10
€ 2.50
530
530D2015
ref: 530
PIN-COTTER, 2.0X15
€ 0.00
