FRAME FITTING
KDX200-B2 1985 AUSTRALIA / KPH

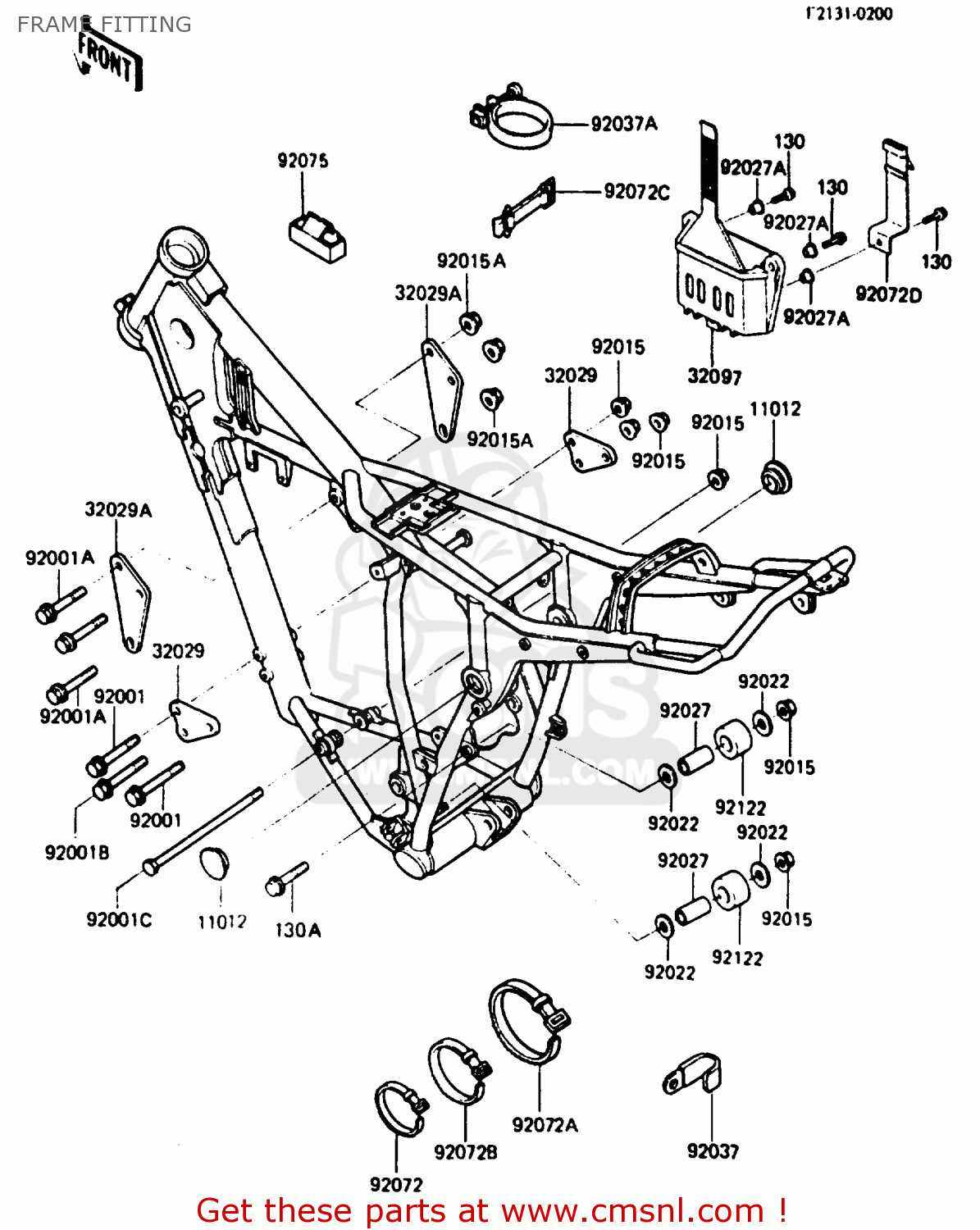

Frame fitting diagram KDX200-B2 1985 AUSTRALIA / KPH
FRAME FITTING KDX200-B2 1985 AUSTRALIA / KPH
×
prices are in EUR
ref
part #
description
quantity
11012
110121211
ref: 11012
CAP,UNI-TRAK
€ 3.50
32029
320291173
ref: 32029
BRACKET-ENGINE
€ 11.50
32029A
320291231
ref: 32029A
BRACKET-ENGINE
€ 16.00
32097
320971069
ref: 32097
CASE-BATTERY
€ 73.00
92001
920011583
ref: 92001
BOLT,FLANGED,8X70
€ 6.00
92001B
920011755
ref: 92001B
BOLT,FLANGED,8X75
€ 6.00
92001C
920011756
ref: 92001C
BOLT,8X180
€ 4.50
92015
920151143
ref: 92015
NUT,8MM
€ 0.50
92015A
920151234
ref: 92015A
NUT,FLANGED,10MM
€ 3.00
92022
92022092
ref: 92022
WASHER
€ 2.50
92027
920271670
ref: 92027
COLLAR,CHAIN ROLLER
€ 4.50
92027A
92027251
ref: 92027A
COLLAR,L=13.1
€ 1.00
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92037A
920371172
ref: 92037A
CLAMP
€ 5.50
92072
92072030
ref: 92072
BAND,SHORT
€ 3.00
92072A
92072032
ref: 92072A
BAND,LONG
€ 3.00
92072B
92072056
ref: 92072B
BAND,RUBBER
€ 3.00
92072C
92072076
ref: 92072C
BAND,L=40
€ 14.00
92072D
920721103
ref: 92072D
BAND,BATTERY CASE
€ 4.50
92075
920751508
ref: 92075
DAMPER,RESISTOR
€ 8.00
92122
921221104
ref: 92122
ROLLER,CHAIN GUIDE
€ 12.00
130
130G0625
ref: 130
BOLT,FLANGED,6X25
€ 0.50
130A
130G0830
ref: 130A
BOLT,8X30
€ 1.00
