FENDER

KDX200-B2 1985 AUSTRALIA / KPH

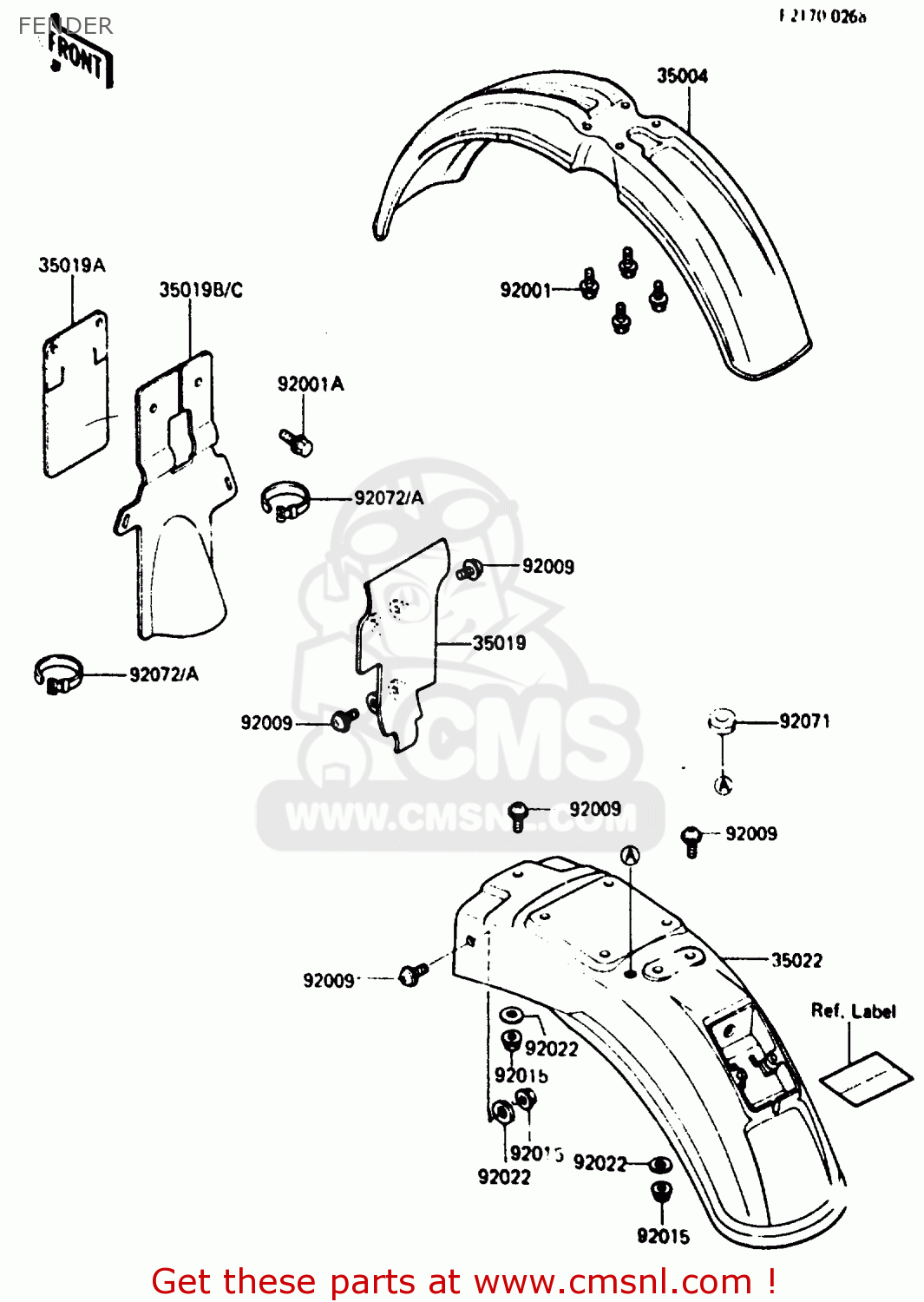

Fender diagram KDX200-B2 1985 AUSTRALIA / KPH

prices are in EUR

ref

part #

description

quantity

35004

3500410766W
ref: 35004

FENDER-FRONT,L.GREEN

€ 61.50

35019

350191050
ref: 35019

FLAP,SUSPENSION ROD

€ 9.50

35019A

350191056
ref: 35019A

FLAP,FENDER,RR

€ 9.50

35019C

350191130
ref: 35019C

FLAP,REAR FENDER

€ 15.50

39022

3502211136W
ref: 39022

FENDER-COMP-REAR,L.GR

€ 91.00

92001

920011773
ref: 92001

BOLT,6X20

€ 2.50

92001A

920011926
ref: 92001A

BOLT,6X14

€ 2.50

92009

920091287
ref: 92009

SCREW,6X14

€ 1.50

92015

920151078
ref: 92015

NUT,6M/M

€ 1.50

92022

92022125
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92071

92071019
ref: 92071

GROMMET,10MM

€ 2.50

92072A

92072031
ref: 92072A

BAND,MIDDLE

€ 3.00
