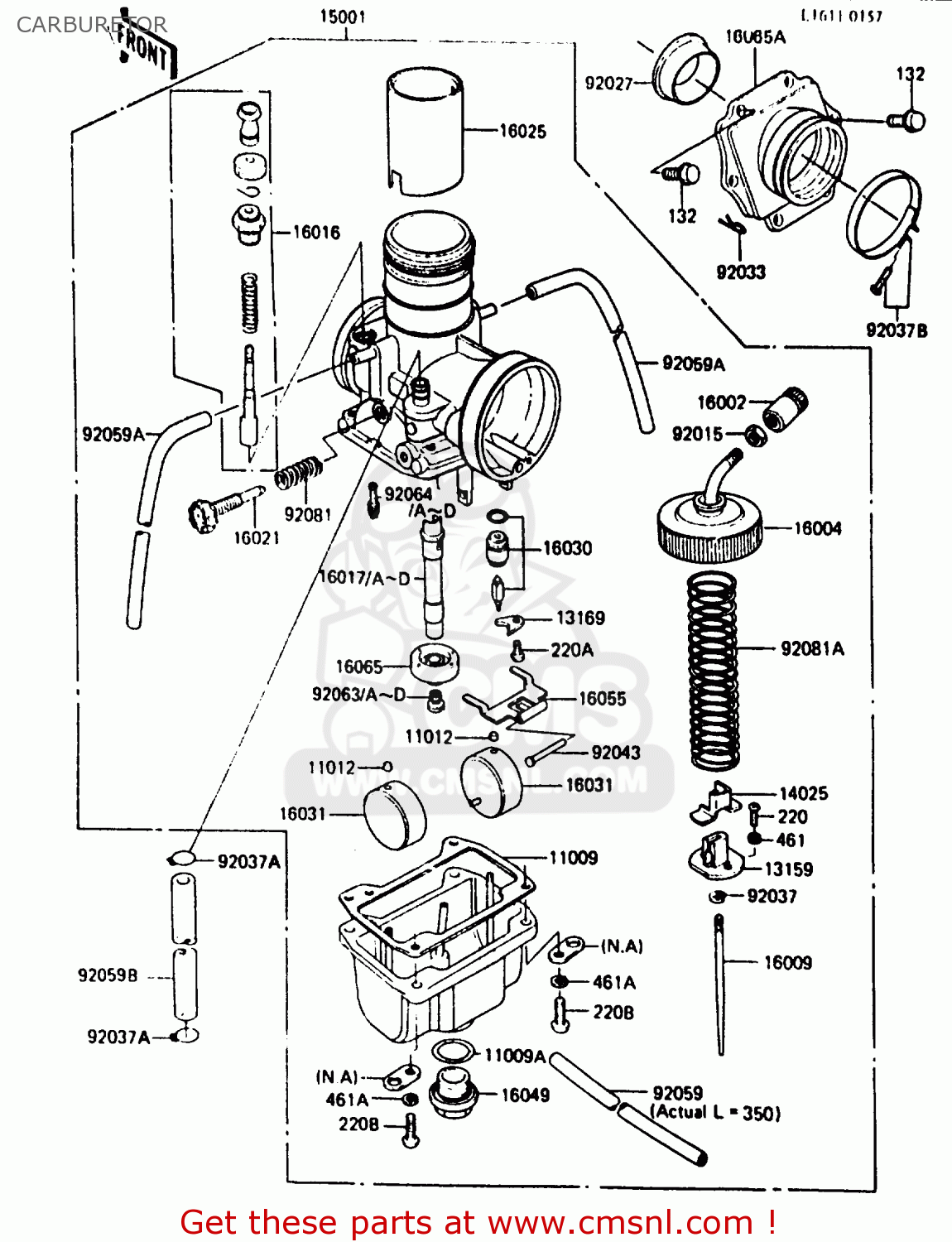

CARBURETOR

ref

part #

description

quantity

11009

110091275
ref: 11009
AS

GASKET,FLOAT CHAMBER (NAS)

€ 8.00

11009A

16038009
ref: 11009A
AS

GASKET,MAIN JET COVER

€ 5.50

11012

110121047
ref: 11012
AS

CAP,FLOAT

€ 3.50

13159

131591004
ref: 13159
AS

CONNECTOR,THROTTLE

€ 9.00

13169

131691190
ref: 13169
AS

PLATE,LOCK

€ 3.50

14025

140251113
ref: 14025
AS

COVER,THROTTLE VALVE

€ 6.00

15001

160011997
ref: 15001
AS

CARBURETOR

€ 263.50

16002

160021006
ref: 16002
AS

ADJUSTER-CABLE

€ 6.50

16004

160041013
ref: 16004
AS

CAP-CHAMBER,MIXING

€ 34.00

16009

160091152
ref: 16009
AS

NEEDLE-JET,5FJ57

€ 23.00

16016

160161013
ref: 16016
AS

PLUNGER,STARTER

€ 24.50

16017

160171212
ref: 16017
AS (OPTION)

JET-NEEDLE,R-4

€ 26.50

16017A

160171213
ref: 16017A
AS

JET-NEEDLE,R-6

€ 25.00

16017B

160171245
ref: 16017B
AS (OPTION)

JET-NEEDLE,S-O

€ 18.00

16017C

160171246
ref: 16017C
AS (OPTION)

JET-NEEDLE,R-8

€ 16.50

16017D

160171247
ref: 16017D
AS (OPTION)

JET-NEEDLE,R-2

€ 26.50

16021

160211033
ref: 16021
AS

SCREW-THROTTLE STOP

€ 12.50

16023

160251105
ref: 16023
AS

VALVE-THROTTLE,CA 3.0

€ 75.00

16030

160301020
ref: 16030
AS

VALVE-FLOAT,3.3

€ 33.00

16031

16031029
ref: 16031
AS

FLOAT

€ 40.00

16049

16049006
ref: 16049
AS

COVER-MAIN JET

€ 10.50

16055

16055009
ref: 16055
AS

ARM-FLOAT

€ 12.50

16065

160651045
ref: 16065
AS

HOLDER-CARBURETOR,NEE

€ 40.50

16065A

160651070
ref: 16065A
AS

HOLDER-CARBURETOR

€ 45.50

92015

16003004
ref: 92015
AS

NUT-CABLE ADJUST LOCK

€ 4.50

92027

920271702
ref: 92027
AS

COLLAR,CARBURETOR HOL

€ 12.50

92033

92036018
ref: 92033
AS

CIRCLIP

€ 2.50

92037

16008010
ref: 92037
AS

CLAMP,E-TYPE

€ 5.00

92037A

92037147
ref: 92037A
AS

CLAMP,CHAIN OILER

€ 4.50

92037B

920371484
ref: 92037B
AS

CLAMP,CARBURETOR HOLD

€ 7.50

92043

16032008
ref: 92043
AS

PIN,FLOAT

€ 4.00

92059

920591211
ref: 92059
AS

TUBE,3.5X6.5X350

€ 7.00

92059A

920591292
ref: 92059A
AS

TUBE,4X7X400,OVERFLOW

€ 5.50

92059B

920591443
ref: 92059B
AS

TUBE,5.8X10.8X180

€ 19.50

92063

92063032
ref: 92063
AS (OPTION)

JET-MAIN,#360

€ 14.00

92063A

92063033
ref: 92063A
AS (OPTION)

JET-MAIN,#370

€ 11.50

92063B

92063048
ref: 92063B
AS (OPTION)

JET-MAIN,#330

€ 12.50

92063C

92063049
ref: 92063C
AS (OPTION)

JET-MAIN,#340

€ 10.50

92063D

92063053
ref: 92063D
AS

MAIN JET,#70

€ 6.00

92064

92064022
ref: 92064
AS (OPTION)

PILOT JET #30 ISO

€ 11.50

92064A

92064023
ref: 92064A
AS (OPTION)

JET-PILOT,#35

€ 13.00

92064B

92064024
ref: 92064B
AS

JET-PILOT,#40

€ 14.00

92044C

92064044
ref: 92044C
AS (OPTION)

JET-PILOT,#45

€ 13.00

92044D

920641005
ref: 92044D
AS (OPTION)

JET-PILOT,#50

€ 10.50

92081

920811200
ref: 92081
AS

SPRING,THROTT STP SCR

€ 5.50

92081A

920811432
ref: 92081A
AS

SPRING,THROTTLE VALVE

€ 9.50

132

132G0620
ref: 132
AS

BOLT-FLANGED-SMALL

€ 1.50

220

220B0308
ref: 220
AS

SCREW-PAN-CROS

€ 0.50

220A

220B0406
ref: 220A
AS

SCREW-PAN-CROS,4X6

€ 2.50

220B

220B0518
ref: 220B
AS

SCREW-PAN HEAD,5X18

€ 2.50

461

461F0300
ref: 461
AS

WASHER-SPRING,3MM

€ 0.50

461A

461F0300
ref: 461A
AS

WASHER-SPRING,3MM

€ 0.50

all assemblies
