SUSPENSION
KDX200-B1 1984 AUSTRALIA / KPH

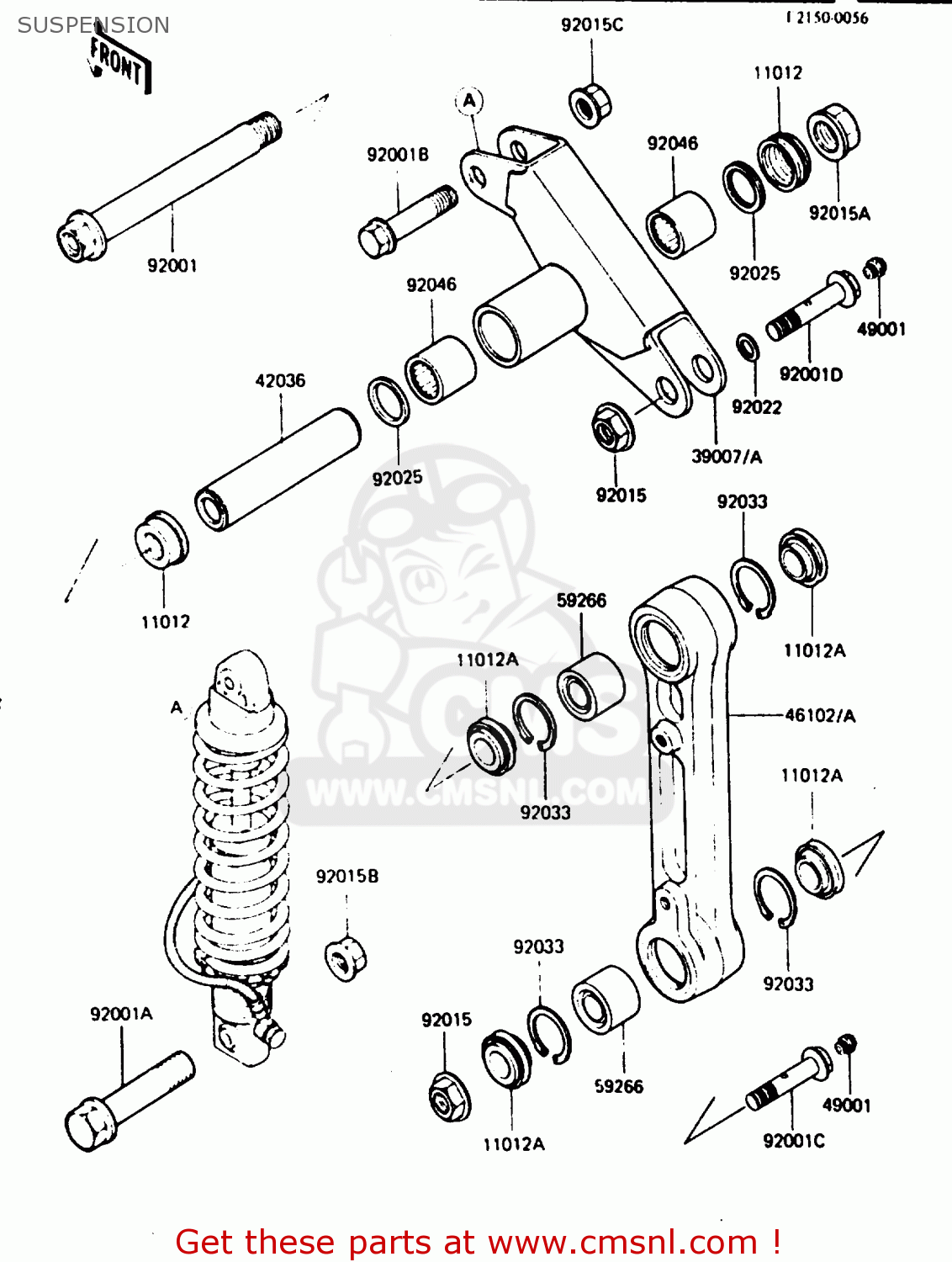

Suspension diagram KDX200-B1 1984 AUSTRALIA / KPH
SUSPENSION KDX200-B1 1984 AUSTRALIA / KPH
×
prices are in EUR
ref
part #
description
quantity
11012
110121203
ref: 11012
CAP,SUSPENSION ARM
€ 11.50
11012A
110121258
ref: 11012A
CAP,ROD
€ 12.50
39007
390071017
ref: 39007
ARM-SUSP,UNI-TRAK
€ 117.50
42036
420361054
ref: 42036
SLEEVE,SUSPENSION
€ 30.00
46102
461021057
ref: 46102
ROD,UNI TRAK
€ 260.50
49001
490011051
ref: 49001
NIPPLE-GREASE,ROD BOL
€ 2.00
59266
592661052
ref: 59266
JOINT-BALL,SB142820E0
€ 66.00
92001
920011495
ref: 92001
BOLT,16X156
€ 47.50
92001A
920011497
ref: 92001A
BOLT,12X55
€ 6.50
92001B
920011962
ref: 92001B
BOLT,FLANGED,10X48
€ 2.00
92001C
920011972
ref: 92001C
BOLT,14X82
€ 13.50
92001D
920011973
ref: 92001D
BOLT,14X60
€ 8.50
92015
920151032
ref: 92015
NUT,14M/M
€ 6.50
92015A
920151046
ref: 92015A
NUT,16MM
€ 9.50
92015B
920151150
ref: 92015B
NUT,5MM
€ 4.50
92015C
920151254
ref: 92015C
NUT,20MM
€ 10.50
92022
92022085
ref: 92022
WASHER,15.3X24X1.2
€ 2.50
92025
920251229
ref: 92025
SHIM,SUSPENSION
€ 2.50
92033
920331064
ref: 92033
RING-SNAP
€ 4.00
92046
920461041
ref: 92046
BEARING-NEEDLE
€ 55.50
