FUEL TANK
KDX200-B1 1984 AUSTRALIA / KPH

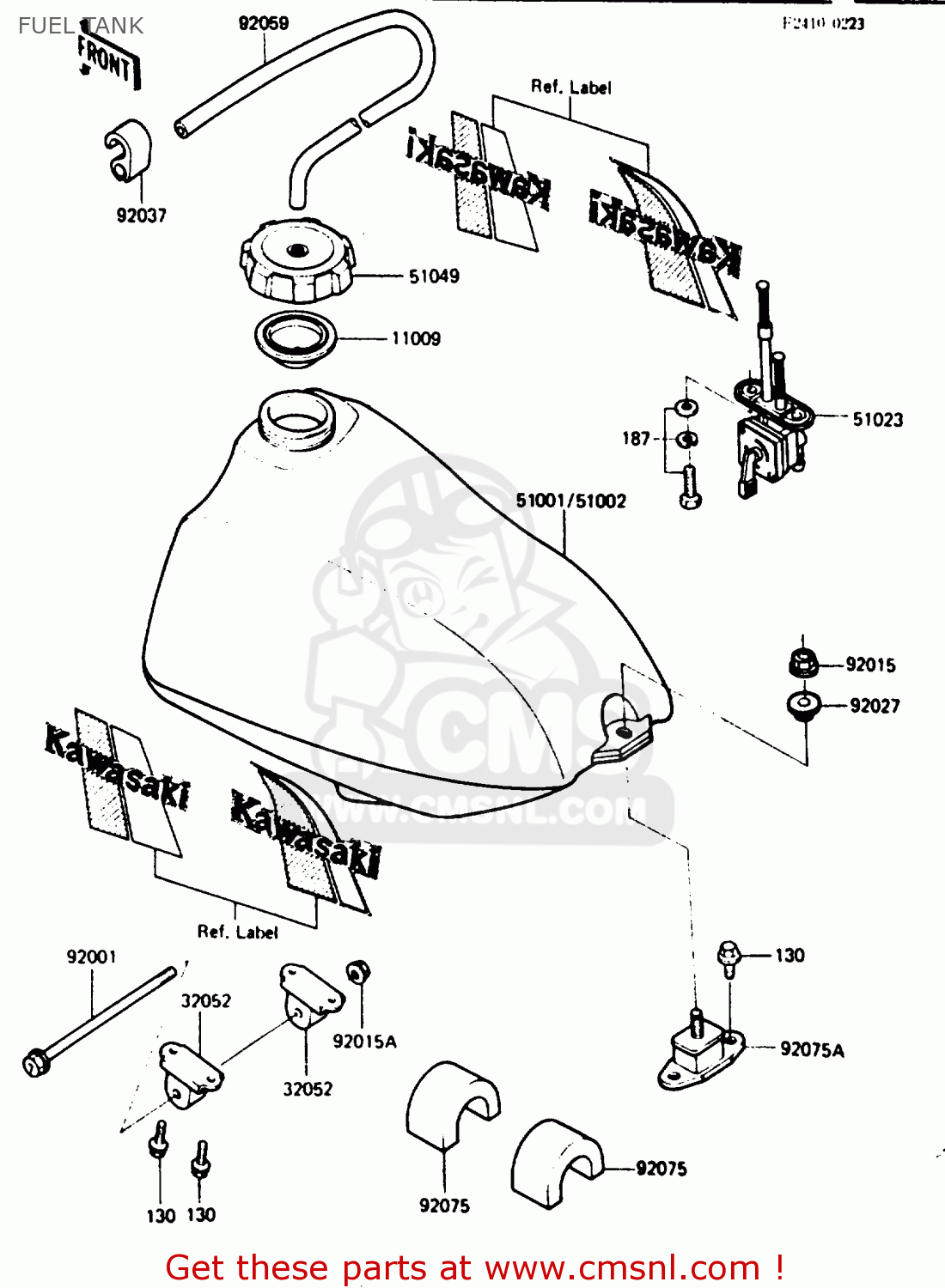

Fuel tank diagram KDX200-B1 1984 AUSTRALIA / KPH
FUEL TANK KDX200-B1 1984 AUSTRALIA / KPH
×
prices are in EUR
ref
part #
description
quantity
11009
110091276
ref: 11009
GASKET,FUEL TANK CAP (NAS)
€ 7.00
32052
320521104
ref: 32052
BRACKET-TANK
€ 12.50
51001
5100153826W
ref: 51001
TANK-COMP-FUEL,L.GREE
€ 372.00
51023
510231045
ref: 51023
TAP-ASSY,FUEL
€ 49.00
51049
510491007
ref: 51049
CAP-TANK,FUEL
€ 15.50
92001
920011501
ref: 92001
BOLT
€ 5.50
92015
920151143
ref: 92015
NUT,8MM
€ 0.50
92015A
920151193
ref: 92015A
NUT,FLANGED,6MM
€ 0.50
92027
920271745
ref: 92027
COLLAR,FUEL TANK
€ 5.50
92037
920371377
ref: 92037
CLAMP,TUBE
€ 3.50
92059
920591258
ref: 92059
TUBE,5X9X250
€ 8.50
92075
920751362
ref: 92075
DAMPER
€ 12.50
92075A
920751429
ref: 92075A
DAMPER,FUEL TANK
€ 37.00
130
130G0612
ref: 130
BOLT,FLANGE,6X12
€ 0.50
187
187B0616
ref: 187
BOLT-UPSET-WSP
€ 0.50
