ELECTRICAL EQUIPMENT
KDX200-B1 1984 AUSTRALIA / KPH

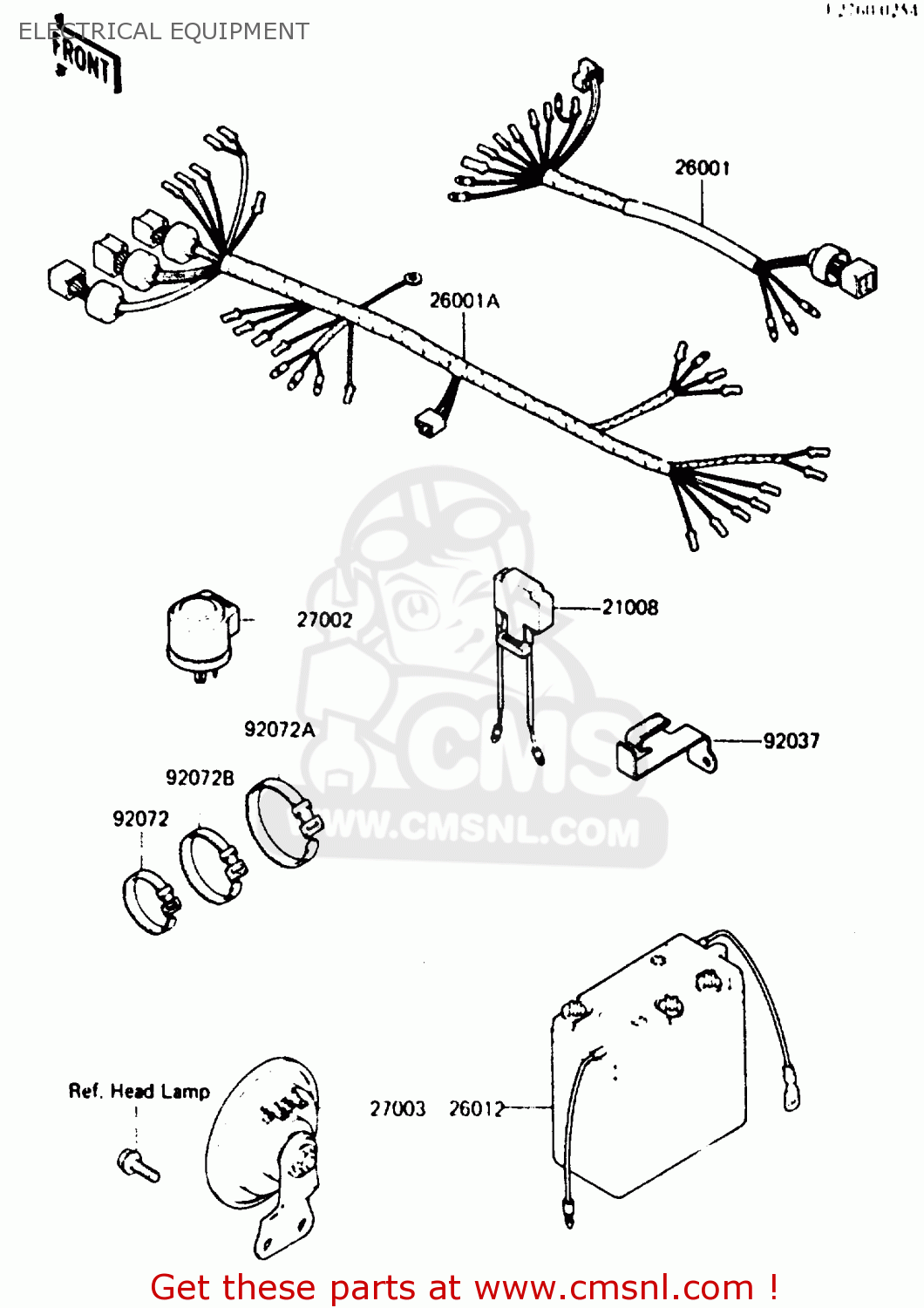

Electrical equipment diagram KDX200-B1 1984 AUSTRALIA / KPH
ELECTRICAL EQUIPMENT KDX200-B1 1984 AUSTRALIA / KPH
×
prices are in EUR
ref
part #
description
quantity
21008
210081010
ref: 21008
BREAKER,CONTACT,R.H
€ 23.50
26001
260011281
ref: 26001
HARNESS,FRONT
€ 26.00
26001A
260011519
ref: 26001A
HARNESS,MAIN
€ 92.50
26012
260121049
ref: 26012
BATTERY,PRODUCTION
€ 50.50
27002
27002013
ref: 27002
RELAY-ASSY,TURN SIGNA
€ 27.00
27003
270031032
ref: 27003
HORN
€ 33.50
92037
920371416
ref: 92037
CLAMP
€ 3.50
92072
92072030
ref: 92072
BAND,SHORT
€ 3.00
92072A
92072032
ref: 92072A
BAND,LONG
€ 3.00
92072B
92072056
ref: 92072B
BAND,RUBBER
€ 3.00
