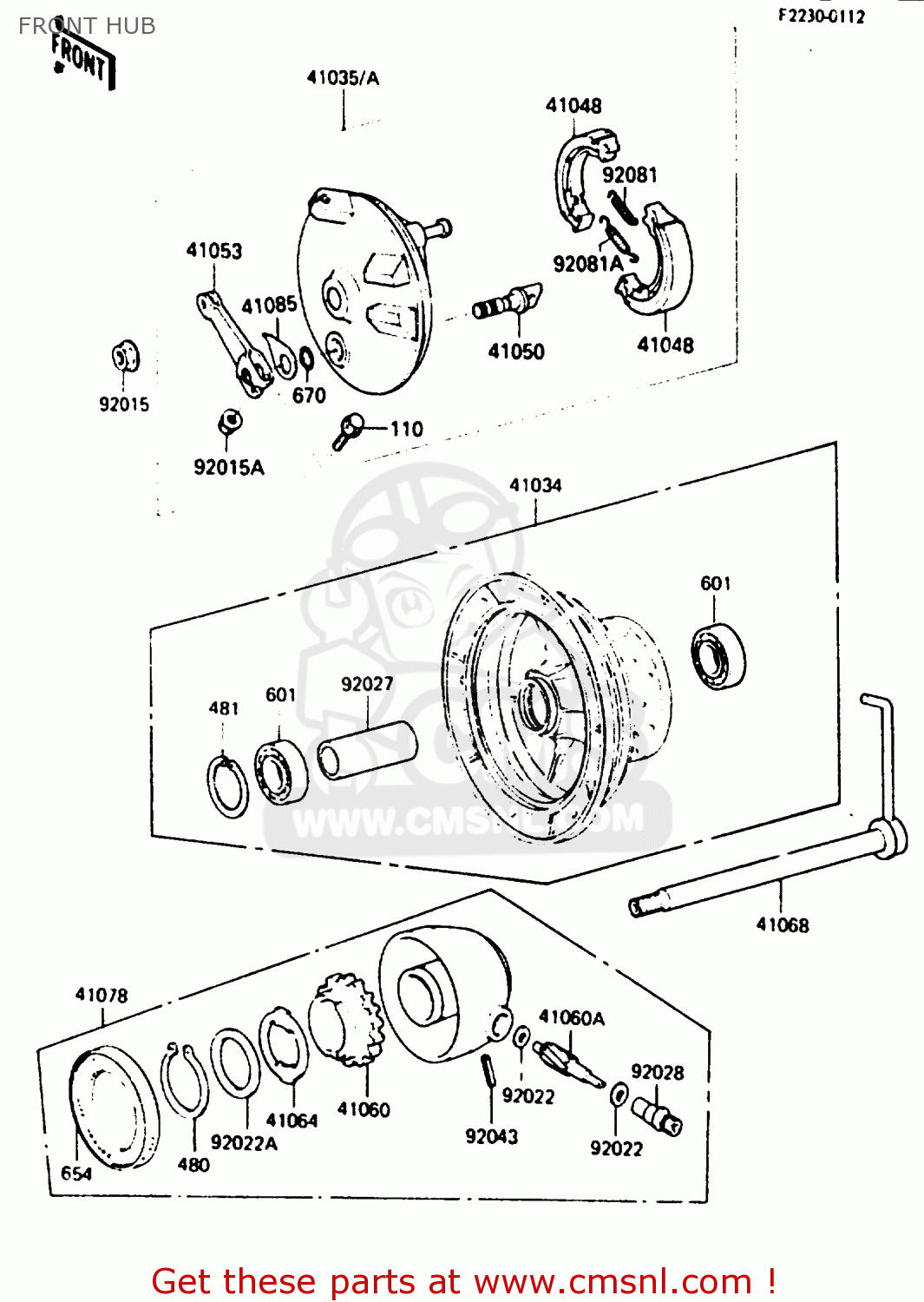

FRONT HUB

ref

part #

description

quantity

41034

410341059
ref: 41034

DRUM-ASSY,FR

€ 273.00

41035

410351156
ref: 41035

PANEL-ASSY-BRAKE,FR

€ 276.50

41048

410481012
ref: 41048

SHOE,BRAKE (MCA)

€ 26.00

41050

410501053
ref: 41050

CAM-BRAKE

€ 26.00

41053

410531018
ref: 41053

LEVER-BRAKE CAM

€ 34.00

41060

41059027
ref: 41060

GEAR SPEEDOMETER

€ 21.00

41060A

41060015
ref: 41060A

PINION,SPEEDOMETER

€ 17.00

41064

41064015
ref: 41064

RECEIVER-SPEEDOMETER

€ 5.50

41066

410681073
ref: 41066

AXLE,FR

€ 39.50

41078

41078011
ref: 41078

GEAR BOX ASSY

€ 103.50

41085

41085003
ref: 41085

INDICATOR,BRAKE SHOE

€ 9.00

92015

920151052
ref: 92015

NUT,STEERING STEM HED

€ 6.00

92015A

920151078
ref: 92015A

NUT,6M/M

€ 1.50

92022

41062001
ref: 92022

BUSH-SPEEDMETER CABLE

€ 7.00

92022A

41065005
ref: 92022A

WASHER,24.5X32X0.8

€ 2.00

92027

920271458
ref: 92027

COLLAR,L=54.5

€ 17.50

92028

41062005
ref: 92028

BUSHING,SPEEDOMETER C

€ 12.00

92043

41082001
ref: 92043

PIN-SPRING

€ 2.50

92081

41049002
ref: 92081

SPRING-BRAKE SHOE

€ 5.50

92081A

920811550
ref: 92081A

SPRING,BRAKE SHOE

€ 6.00

110

110G0630
ref: 110

BOLT-HEX HEAD,6X30

€ 1.00

480

480J2400
ref: 480

CIRCLIP-TYPE-C,24MM

€ 3.50

481

481J3500
ref: 481

CIRCLIP-TYPE-C,35MM

€ 1.00

601

601B6202U
ref: 601

BEARING-BALL,#6202UC3

€ 19.50

654

654A506509
ref: 654

OIL SEAL,#50659

€ 10.50

670

670B2012
ref: 670

O RING,12MM

€ 1.00

all assemblies
