GENERATOR

KDX200-B1 1984 AUSTRALIA / KPH

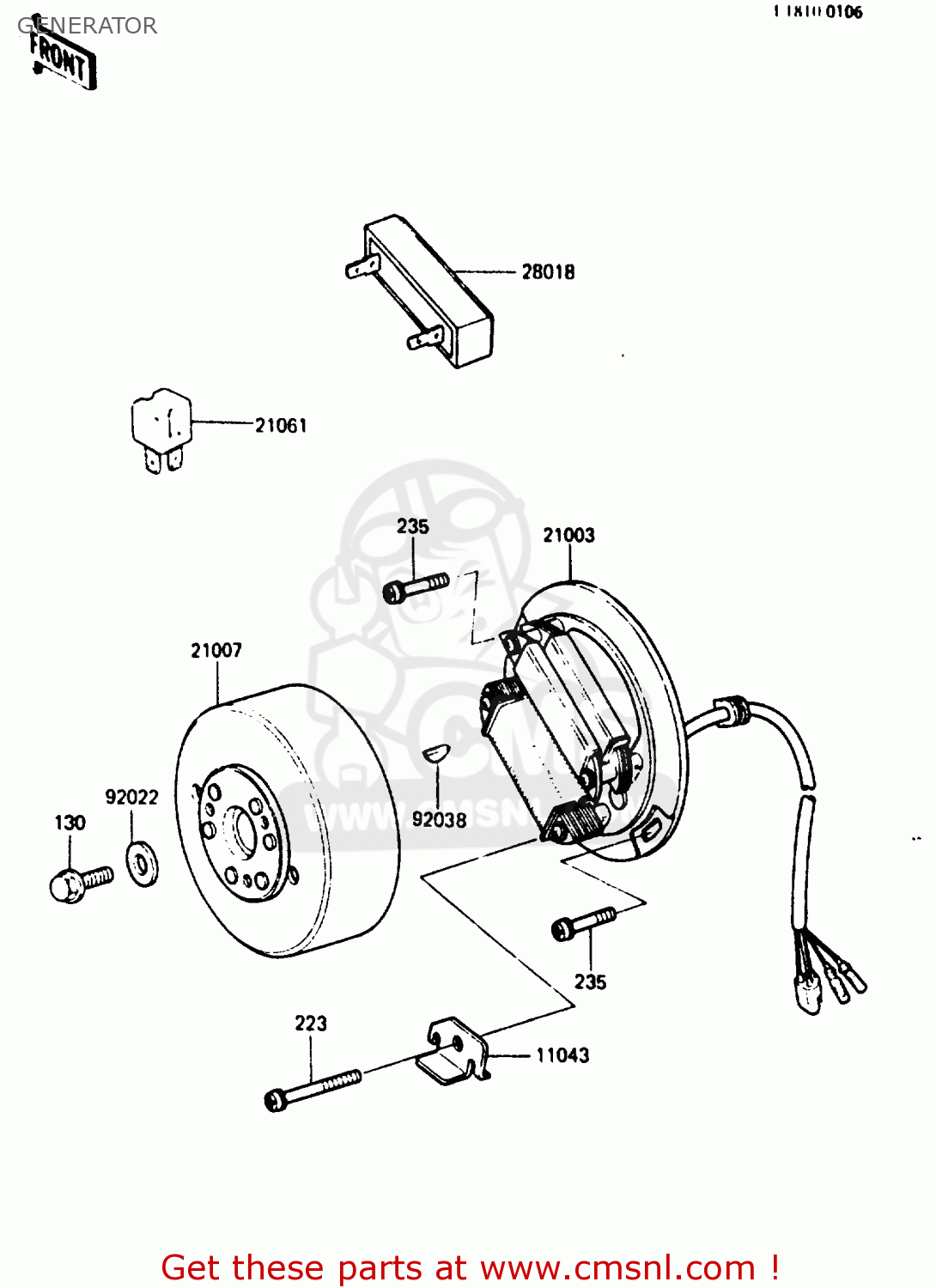

Generator diagram KDX200-B1 1984 AUSTRALIA / KPH

GENERATOR KDX200-B1 1984 AUSTRALIA / KPH

GENERATOR KDX200-B1 1984 AUSTRALIA / KPH

prices are in EUR

ref

part #

description

quantity

11043

110431496
ref: 11043

BRACKET,STATOR

€ 3.00

21003

210031102
ref: 21003

STATOR

€ 342.00

21007

210071103
ref: 21007

ROTOR

€ 345.00

21061

210611003
ref: 21061

RECTIFIER

€ 25.00

28018

280181026
ref: 28018

RESISTOR

€ 20.50

92022

92022276
ref: 92022

WASHER,PLAIN,8MM

€ 6.50

92036

92036001
ref: 92036

CIRCLIP-PISTON PIN

€ 0.50

130

130P0835
ref: 130

BOLT-FLANGED

€ 1.00

223

223B0406
ref: 223

SCREW-PAN-WS-CROS

€ 0.50

235

235B0616
ref: 235

SCREW-PAN-WP-CROS

€ 3.00
