TRANSMISSION
KDX200-A2 1984 UNITED KINGDOM AL

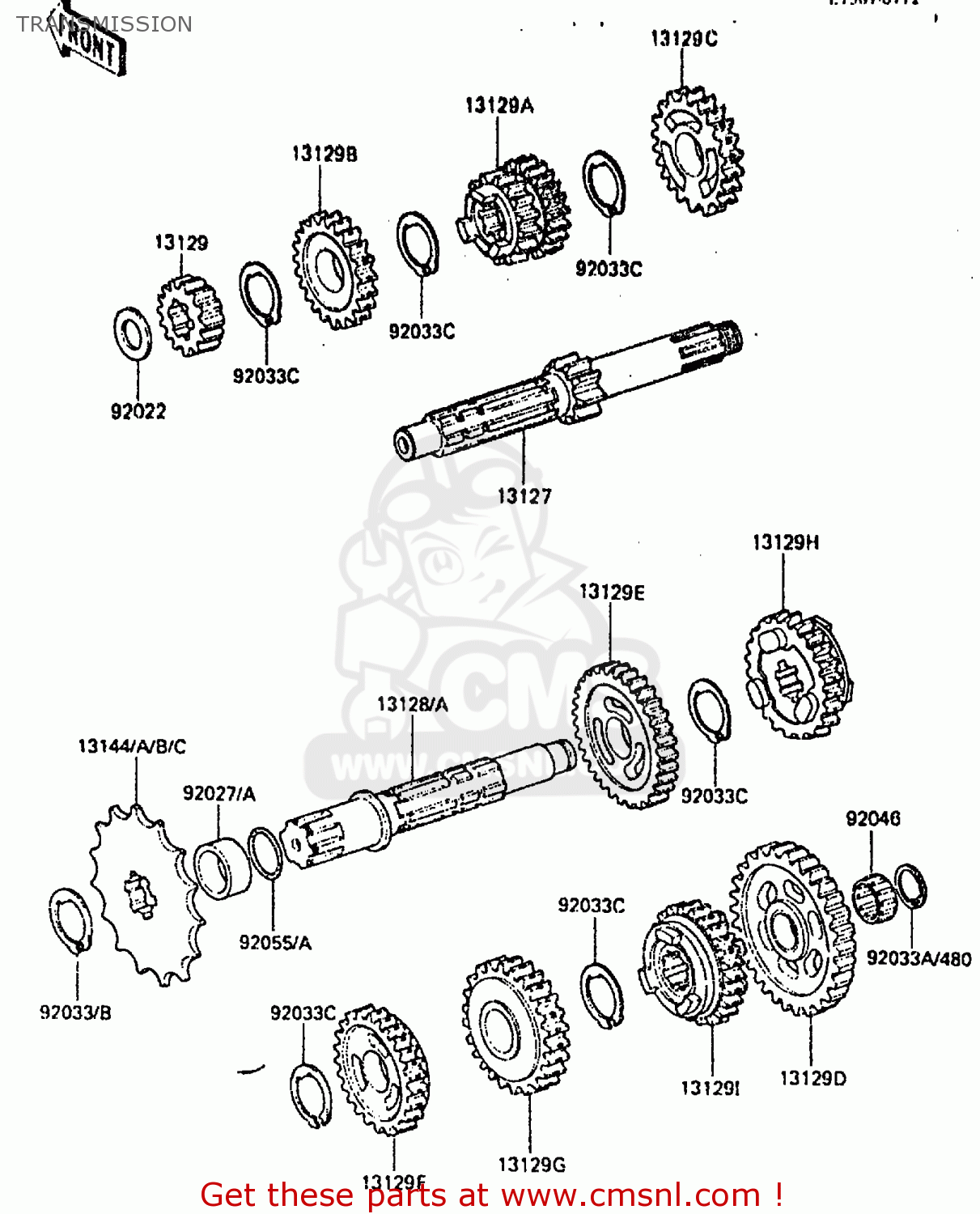

Transmission diagram KDX200-A2 1984 UNITED KINGDOM AL
TRANSMISSION KDX200-A2 1984 UNITED KINGDOM AL
×
prices are in EUR
ref
part #
description
quantity
13127
131271064
ref: 13127
SHAFT-TRANSMISSION IN
€ 146.00
13128A
131281101
ref: 13128A
SHAFT-TRANSMISSION OU
€ 100.50
13129
131291397
ref: 13129
GEAR,INPUT 2ND,14T
€ 38.00
13129A
131291398
ref: 13129A
GEAR,INPUT 3RD&4TH,15
€ 79.00
13129B
131291399
ref: 13129B
GEAR,INPUT 5TH,24T
€ 67.50
13129C
131291400
ref: 13129C
GEAR,INPUT TOP,23T
€ 49.00
13129D
131291401
ref: 13129D
GEAR,OUTPUT LOW,36T
€ 48.50
13129E
131291402
ref: 13129E
GEAR,OUTPUT 2ND,28T
€ 59.00
13129F
131291403
ref: 13129F
GEAR,OUTPUT 3RD,23T
€ 59.00
13129G
131291404
ref: 13129G
GEAR,OUTPUT 4TH,21T
€ 45.50
13129H
131291405
ref: 13129H
GEAR,OUTPUT 5TH,25T
€ 59.00
13129I
131291406
ref: 13129I
GEAR,OUTPUT TOP,20T
€ 45.50
13144
131441027
ref: 13144
ENGINE SPROCKET,13T
€ 28.50
92022
92022170
ref: 92022
WASHER-THRUST
€ 6.00
92027A
920271669
ref: 92027A
COLLAR,25X30X11.5
€ 11.50
92033
92033026
ref: 92033
CIRCLIP
€ 6.00
92033A
92033032
ref: 92033A
CIRCLIP
€ 3.00
92033C
920331088
ref: 92033C
RING-SNAP,20MM
€ 3.50
92046
92046027
ref: 92046
BRG-N,KT172314
€ 20.00
92055
92055035
ref: 92055
O RING
€ 3.00
