CARBURETOR (KDX200-A1/A2)
KDX200-A2 1984 UNITED KINGDOM AL

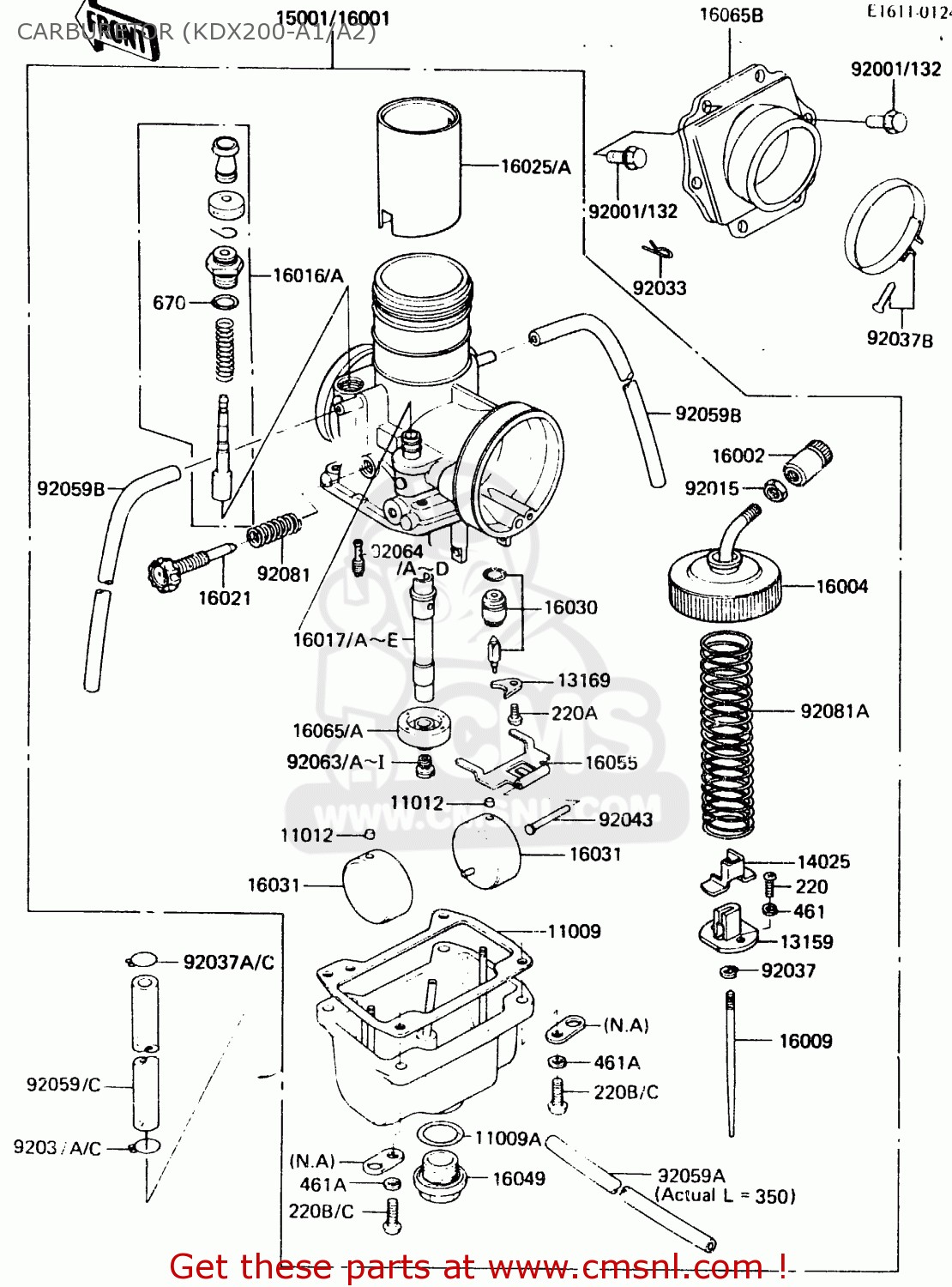

Carburetor (kdx200-a1/a2) diagram KDX200-A2 1984 UNITED KINGDOM AL
CARBURETOR (KDX200-A1/A2) KDX200-A2 1984 UNITED KINGDOM AL
×
prices are in EUR
ref
part #
description
quantity
11009
110091275
ref: 11009
GASKET,FLOAT CHAMBER (NAS)
€ 8.00
11009A
16038009
ref: 11009A
GASKET,MAIN JET COVER
€ 5.50
11012
110121047
ref: 11012
CAP,FLOAT
€ 3.50
13159
131591004
ref: 13159
CONNECTOR,THROTTLE
€ 9.00
13169
131691190
ref: 13169
PLATE,LOCK
€ 3.50
14025
140251113
ref: 14025
COVER,THROTTLE VALVE
€ 6.00
15001
160011963
ref: 15001
CARBURETOR
€ 396.50
16002
160021006
ref: 16002
ADJUSTER-CABLE
€ 6.50
16004
160041013
ref: 16004
CAP-CHAMBER,MIXING
€ 34.00
16009
160091152
ref: 16009
NEEDLE-JET,5FJ57
€ 23.00
16016A
160161013
ref: 16016A
PLUNGER,STARTER
€ 24.50
16017A
160171212
ref: 16017A
(OPTION)
JET-NEEDLE,R-4
€ 26.50
16017B
160171213
ref: 16017B
JET-NEEDLE,R-6
€ 25.00
16017C
160171245
ref: 16017C
(OPTION)
JET-NEEDLE,S-O
€ 18.00
16017D
160171246
ref: 16017D
(OPTION)
JET-NEEDLE,R-8
€ 16.50
16017E
160171247
ref: 16017E
(OPTION)
JET-NEEDLE,R-2
€ 26.50
16021
160211033
ref: 16021
SCREW-THROTTLE STOP
€ 12.50
16025A
160251105
ref: 16025A
VALVE-THROTTLE,CA 3.0
€ 75.00
16030
160301020
ref: 16030
VALVE-FLOAT,3.3
€ 33.00
16031
16031029
ref: 16031
FLOAT
€ 40.00
16049
16049006
ref: 16049
COVER-MAIN JET
€ 10.50
16055
16055009
ref: 16055
ARM-FLOAT
€ 12.50
16065
160651045
ref: 16065
HOLDER-CARBURETOR,NEE
€ 40.50
16065B
160651070
ref: 16065B
HOLDER-CARBURETOR
€ 45.50
92015
16003004
ref: 92015
NUT-CABLE ADJUST LOCK
€ 4.50
92033
92036018
ref: 92033
CIRCLIP
€ 2.50
92037
16008010
ref: 92037
CLAMP,E-TYPE
€ 5.00
92037B
920371313
ref: 92037B
CLAMP,CARBURETOR HOLD
€ 7.00
92037C
92037147
ref: 92037C
CLAMP,CHAIN OILER
€ 4.50
92043
16032008
ref: 92043
PIN,FLOAT
€ 4.00
92059A
920591211
ref: 92059A
TUBE,3.5X6.5X350
€ 7.00
92059B
920591292
ref: 92059B
TUBE,4X7X400,OVERFLOW
€ 5.50
92059C
920591443
ref: 92059C
TUBE,5.8X10.8X180
€ 19.50
92063
92063026
ref: 92063
(OPTION)
JET-MAIN,#240
€ 12.00
92063A
92063027
ref: 92063A
(OPTION)
JET-MAIN,#250
€ 12.00
92063B
92063028
ref: 92063B
JET-MAIN,#260
€ 8.50
92063C
92063029
ref: 92063C
(OPTION)
JET-MAIN,#270
€ 10.00
92063D
92063030
ref: 92063D
(OPTION)
JET-MAIN,#280
€ 9.00
92063E
92063057
ref: 92063E
(OPTION)
MAIN JET,#130R
€ 9.50
92063F
92063103
ref: 92063F
(OPTION)
MAIN JET,#132.5R
€ 8.50
92063H
92063105
ref: 92063H
(OPTION)
MAIN JET,#137.5R
€ 11.50
92063I
92063116
ref: 92063I
(OPTION)
JET-MAIN,#140R
€ 8.50
92064
92064022
ref: 92064
(OPTION)
PILOT JET #30 ISO
€ 11.50
92064A
92064023
ref: 92064A
(OPTION)
JET-PILOT,#35
€ 13.00
92064B
92064024
ref: 92064B
JET-PILOT,#40
€ 14.00
92064C
92064044
ref: 92064C
(OPTION)
JET-PILOT,#45
€ 13.00
92064D
920641005
ref: 92064D
(OPTION)
JET-PILOT,#50
€ 10.50
92081
920811200
ref: 92081
SPRING,THROTT STP SCR
€ 5.50
92081A
920811432
ref: 92081A
SPRING,THROTTLE VALVE
€ 9.50
132
132G0620
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
220
220B0308
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220B0406
ref: 220A
SCREW-PAN-CROS,4X6
€ 2.50
220C
220B0518
ref: 220C
SCREW-PAN HEAD,5X18
€ 2.50
461
461F0300
ref: 461
WASHER-SPRING,3MM
€ 0.50
461A
461F0500
ref: 461A
WASHER-SPRING,5MM
€ 0.50
