SWING ARM(KDX200-A1/A2)

KDX200-A2 1984 UNITED KINGDOM AL

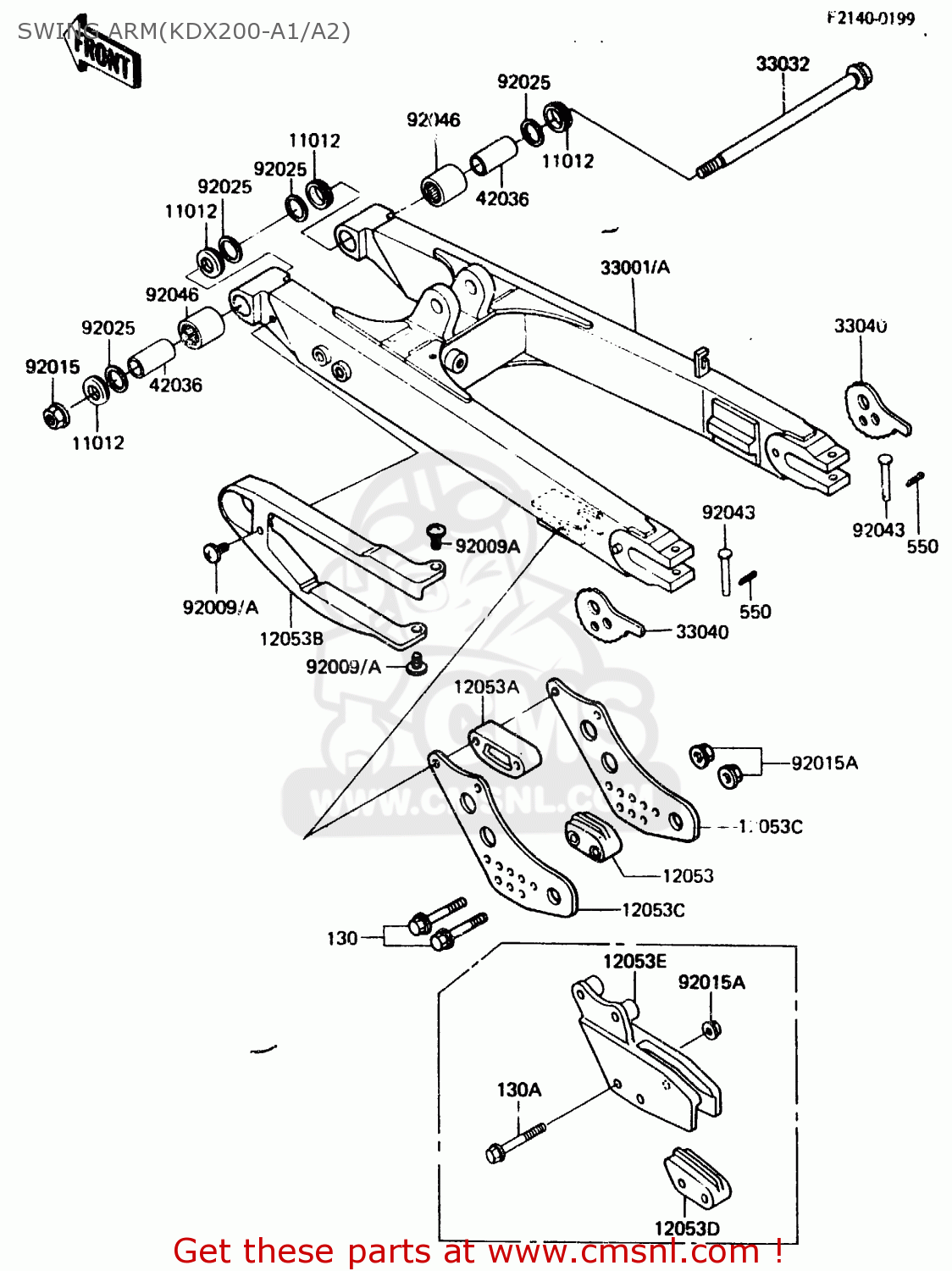

Swing arm(kdx200-a1/a2) diagram KDX200-A2 1984 UNITED KINGDOM AL

prices are in EUR

ref

part #

description

quantity

11012

110121207
ref: 11012

CAP

€ 12.00

12053B

120531068
ref: 12053B

GUIDE-CHAIN,FR

€ 38.50

12053D

120531105
ref: 12053D

GUIDE-CHAIN,RR,INSIDE

€ 27.50

12053E

120531124
ref: 12053E

GUIDE-CHAIN,RR

€ 67.00

33001A

330011208
ref: 33001A

ARM-COMP-SWING

€ 590.50

33032

330321042
ref: 33032

SHAFT-SWING ARM

€ 49.00

33040

330404003
ref: 33040

ADJUSTER,CHAIN

€ 21.00

42036

420361056
ref: 42036

SLEEVE,SWING ARM

€ 13.50

92009A

920091287
ref: 92009A

SCREW,6X14

€ 1.50

92015

920151032
ref: 92015

NUT,14M/M

€ 6.50

92015A

920151193
ref: 92015A

NUT,FLANGED,6MM

€ 0.50

92025

920251116
ref: 92025

SHIM,20X26.6X0.5

€ 2.50

92043

920431110
ref: 92043

PIN,6X44.5

€ 3.00

92046

920461031
ref: 92046

BEARING-NEEDLE,HMK203

€ 20.50

130A

130G0640
ref: 130A

BOLT,FLANGED,6X40

€ 0.50

550

550D2015
ref: 550

PIN-COTTER,2.0X15

€ 1.00
